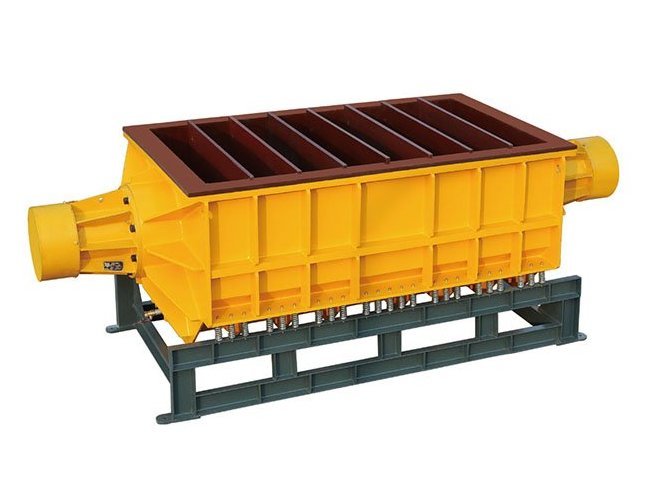

Inovatec TVB(B) 500L Trough Tub Vibrator
Inovatec TVB(B) 500L Trough Tub Vibrator
SKU:MAS-e0989c
Achieve precise finishing with Inovatec TVB(B) 500L Trough Tub Vibrator. Ideal for heavy parts & marble finishing.
Regular price
$6,999.99
Regular price
Sale price
$6,999.99
Unit price
per
Initiate Order
Inovatec TVB(B) 500L Trough Tub Vibrator
$6,999.99
Quantity: 1
Claim Your Seller Account
Inovatec TVB(B) 500L Trough Tub Vibrator
$6,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

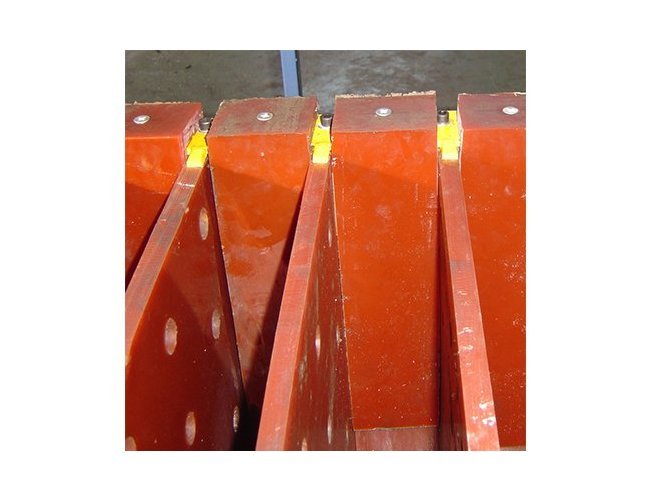

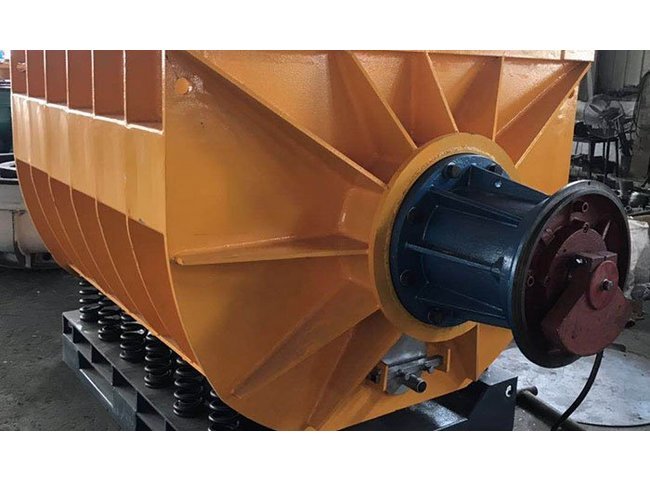

The Inovatec TVB(B) Series 500 Liter Total Volume Trough Tub Vibrator is a robust solution designed for finishing heavy and large parts with precision. Featuring straight wall tubs equipped with polyurethane dividers to prevent part contact, this vibratory finishing machine is ideal for marble tiles aging and antique finishing applications. With a 500L total volume, 2.2 kW motor power, and a wear-resistant PU lining, this machine delivers reliable performance and durability for industrial needs.
Product Specifications
Features And Applications
Digital process timerLow profile designProcess chamber dividersStress relieved and enhanced with blastingWear resistant PU lining from Dow Chemicals

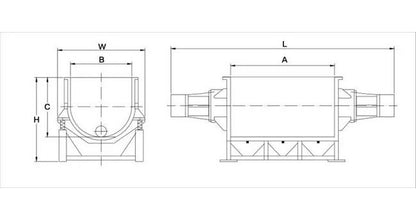

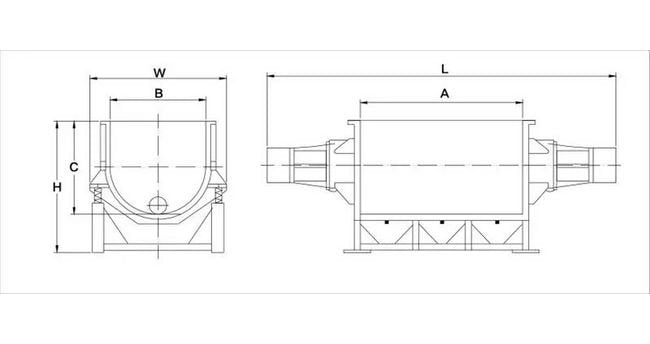

Maximum Overall Dimensions Maximum Overall Height
985 mm
Maximum Overall Dimensions Maximum Overall Length
2670 mm
Maximum Overall Dimensions Maximum Overall Width
1000 mm
Optional Settings

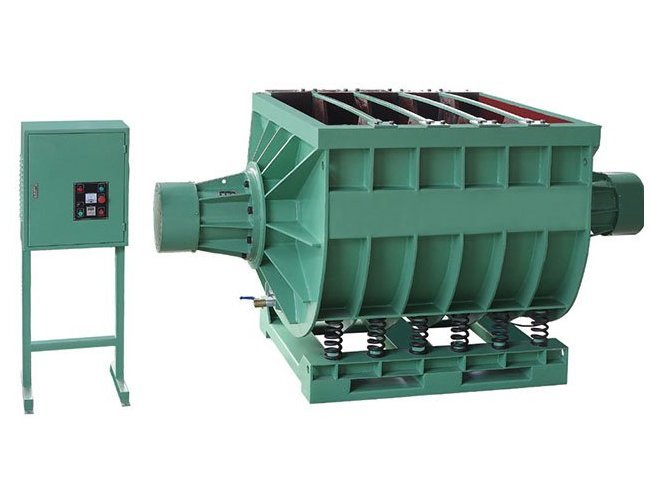

Soundproof coverVariable frequency driveCompound dosing pumpControl box hang on the wall or standing on the floor
Specifications Chamber Diameter C
690 mm
Specifications Chamber Height B
700 mm
Specifications Chamber Length A
1310 mm
Specifications Motor Power
2.2 kW
Specifications Number Of Motors
2
Specifications Polyurethane Pu Lining Thickness
25 mm
Specifications Total Volume
500 L
Specifications Type
Tub
Specifications Weight
700 kg
