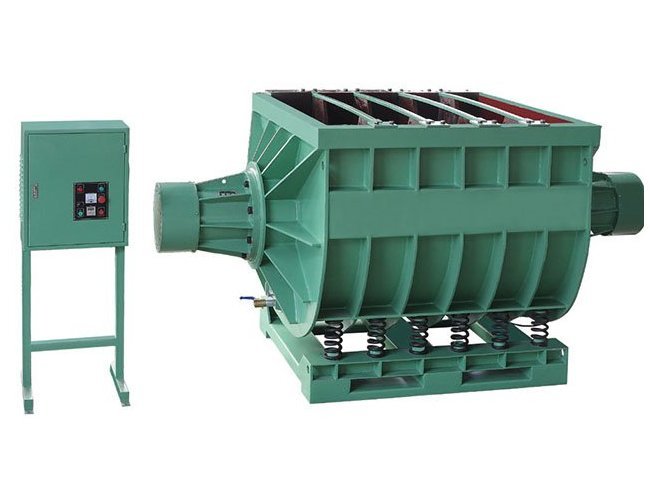

Inovatec TVB(B) 900L Total Volume Trough Tub Vibrator
Inovatec TVB(B) 900L Total Volume Trough Tub Vibrator
SKU:MAS-8a4d24
Achieve precision finishing with the Inovatec TVB(B) 900L Trough Tub Vibrator. Ideal for heavy parts and marble tile finishing.
Regular price
$7,999.99
Regular price
Sale price
$7,999.99
Unit price
per
Initiate Order
Inovatec TVB(B) 900L Total Volume Trough Tub Vibrator
$7,999.99
Quantity: 1
Claim Your Seller Account
Inovatec TVB(B) 900L Total Volume Trough Tub Vibrator
$7,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

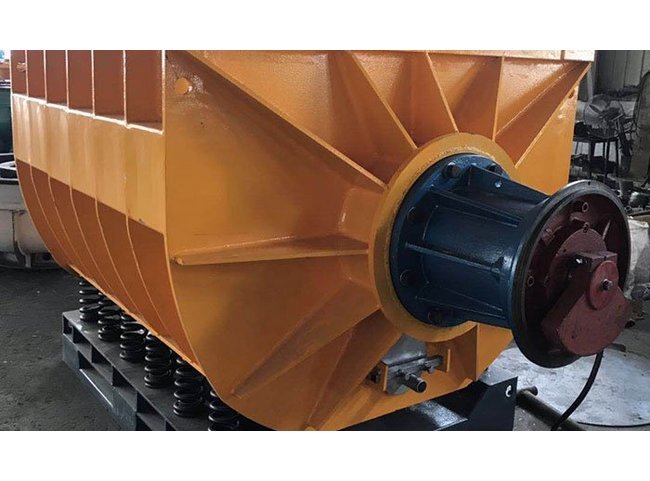

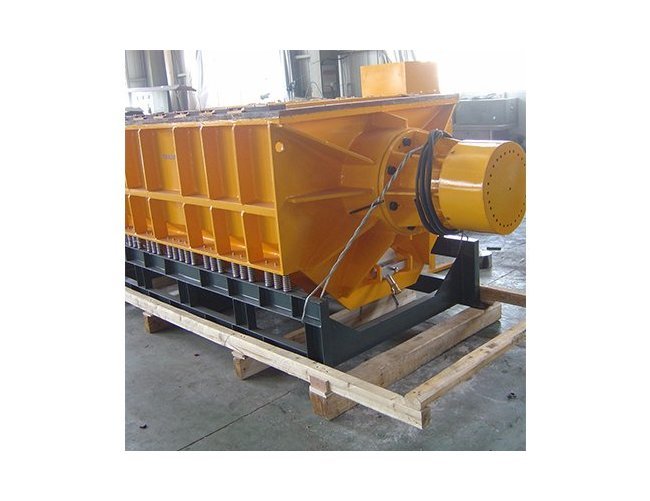

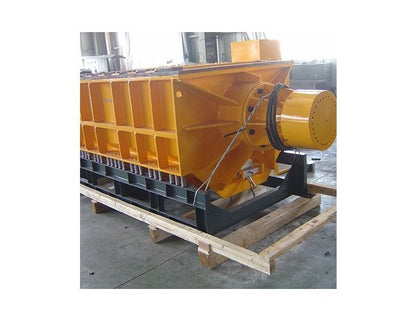

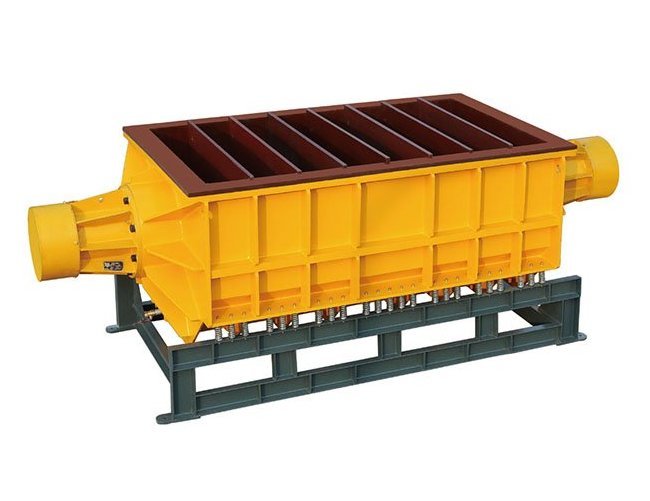

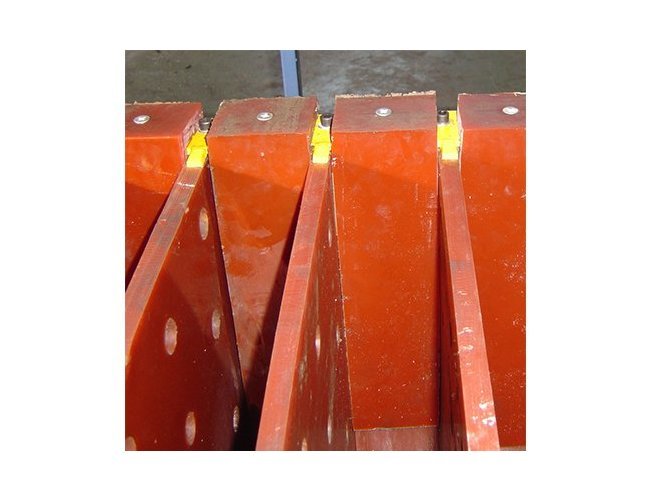

The Inovatec TVB(B) Series 900 Liter Total Volume Trough Tub Vibrator is a robust solution designed for finishing heavy and large parts with precision. Equipped with polyurethane tub dividers to prevent part contact, this vibratory finishing machine features a low profile design, stress-relieved construction, and wear-resistant PU lining from Dow Chemicals. Ideal for marble tile aging and antique finishing, this machine offers a digital process timer and multiple optional settings for enhanced control and efficiency. With a powerful motor, dual-chamber design, and durable construction, it meets the demands of industrial applications seeking quality surface finishing solutions.
Product Specifications
Features And Applications
Digital process timerLow profile designProcess chamber dividersStress relieved and enhanced with blastingWear resistant PU lining from Dow Chemicals

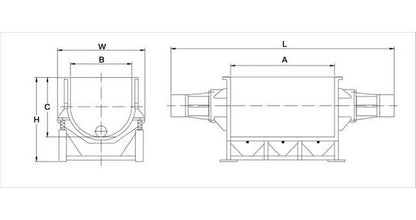

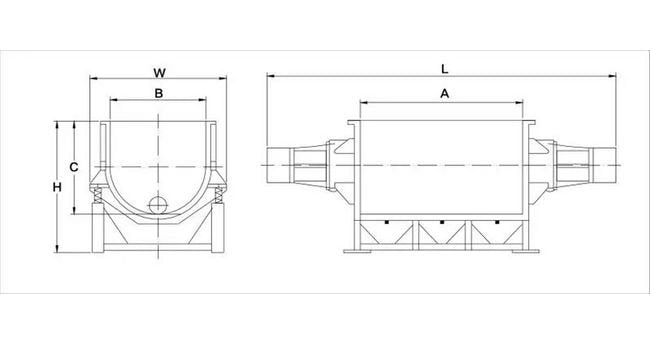

Maximum Overall Dimensions Maximum Overall Height
1100 mm
Maximum Overall Dimensions Maximum Overall Length
2700 mm
Maximum Overall Dimensions Maximum Overall Width
1050 mm
Optional Settings
Soundproof coverVariable frequency driveCompound dosing pumpControl box hang on the wall or standing on the floor
Specifications Chamber Diameter C
900 mm
Specifications Chamber Height B
850 mm
Specifications Chamber Length A
1200 mm
Specifications Motor Power
4.0 kW
Specifications Number Of Motors
2
Specifications Polyurethane Pu Lining Thickness
25 mm
Specifications Total Volume
900 L
Specifications Type
Tub
Specifications Weight
900 kg
