Inovatec TVB(B) Series 1200L Trough Tub Vibrator
Inovatec TVB(B) Series 1200L Trough Tub Vibrator
SKU:MAS-356671
Enhance finishing efficiency with Inovatec's TVB(B) Series 1200L Trough Tub Vibrator. Perfect for heavy parts, featuring durable polyurethane lining and dual motors for precision.
Regular price
$7,999.99
Regular price
Sale price
$7,999.99
Unit price
per
Initiate Order
Inovatec TVB(B) Series 1200L Trough Tub Vibrator
$7,999.99
Quantity: 1
Claim Your Seller Account
Inovatec TVB(B) Series 1200L Trough Tub Vibrator
$7,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

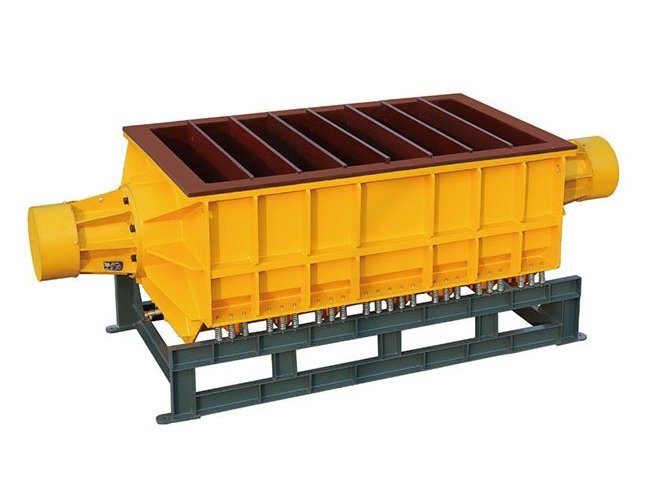

The Inovatec TVB(B) Series 1200L Trough Tub Vibrator is a reliable and robust solution designed for finishing heavy and large parts with precision. Featuring a total volume of 1200 liters and equipped with polyurethane lining for enhanced durability, this vibratory trough finishing machine boasts a low profile design, stress-relieved construction, and wear-resistant components from Dow Chemicals. With dual 4.0 kW motors and optional settings including a soundproof cover and variable frequency drive, this machine offers efficiency and customization for various applications, such as marble tiles aging and antique finishing. Trust in Inovatec's quality and innovation for superior mass finishing results.
Product Specifications
Features And Applications

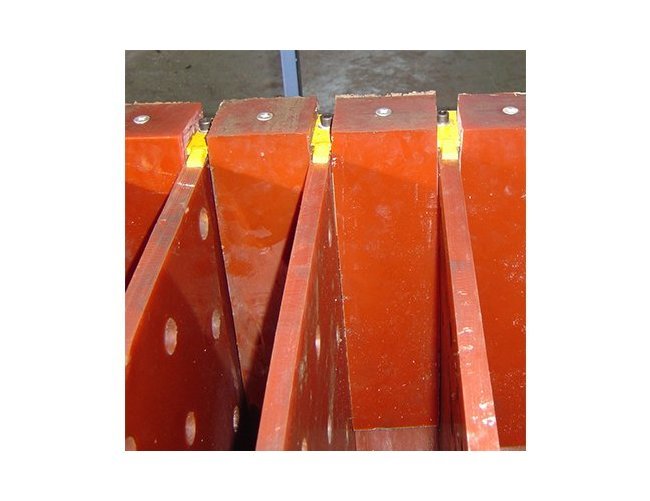

Digital process timerLow profile designProcess chamber dividersStress relieved and enhanced with blastingWear resistant PU lining from Dow Chemicals
Maximum Overall Dimensions Maximum Overall Height
1100 mm
Maximum Overall Dimensions Maximum Overall Length
3000 mm
Maximum Overall Dimensions Maximum Overall Width
1050 mm
Optional Settings
Soundproof coverVariable frequency driveCompound dosing pumpControl box hang on the wall or standing on the floor

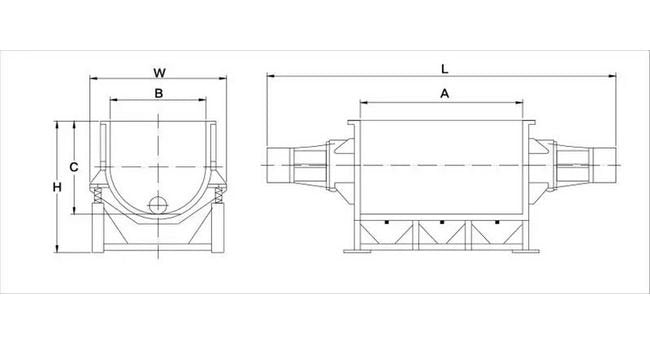

Specifications Chamber Diameter C
750 mm
Specifications Chamber Height B
850 mm
Specifications Chamber Length A
2000 mm
Specifications Motor Power
4.0 kW
Specifications Number Of Motors
2
Specifications Polyurethane Pu Lining Thickness
25 mm
Specifications Total Volume
1200 L
Specifications Type
Tub
Specifications Weight
2100 kg
