Inovatec VA Series 1490mm Gyrate Polishing Machine

Name: Inovatec VA Series 1490mm Gyrate Polishing Machine
Brand: Inovatec Machinery
SKU: MAS-7e69cf
Price: 7699.99 USD
Availability: OutOfStock

SKU:MAS-7e69cf

Achieve precision metal polishing with Inovatec's VA Series Gyrate Polishing Machine - ideal for watch components, jewelry parts, and more.

$7,699.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

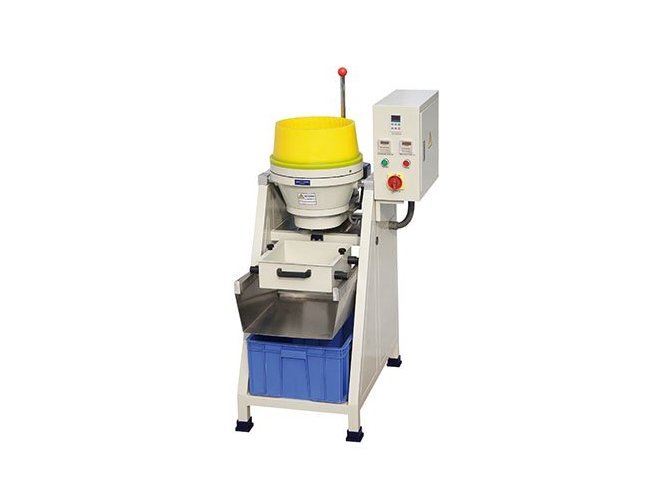

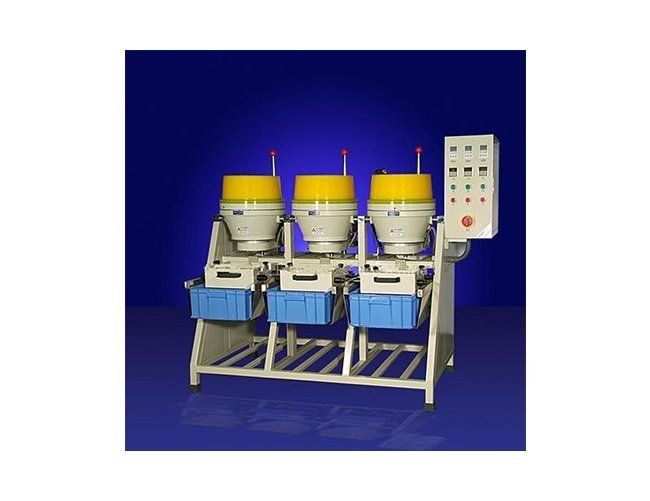

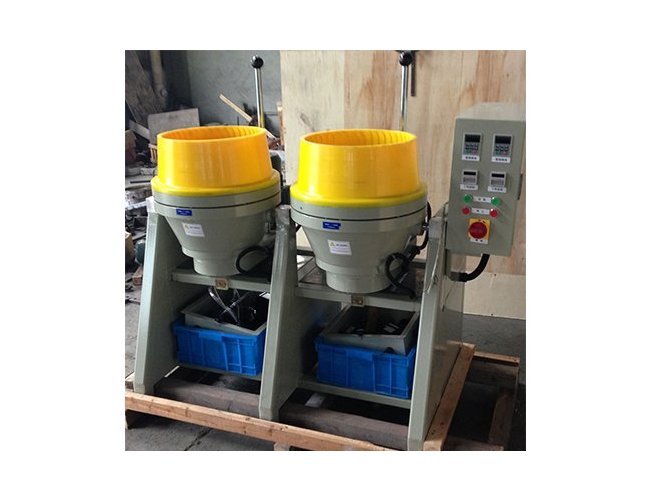

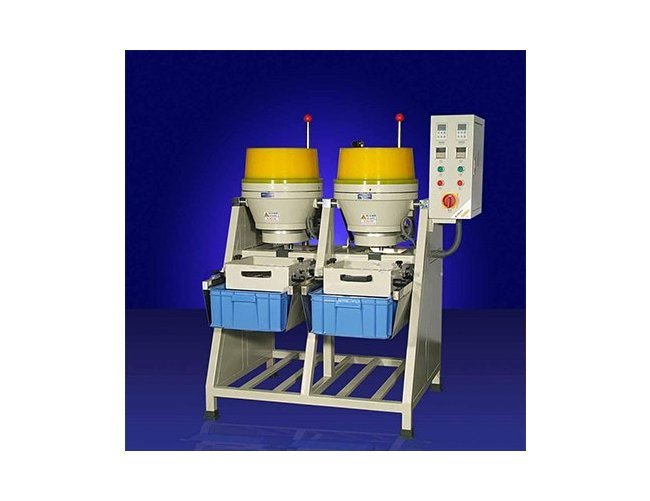

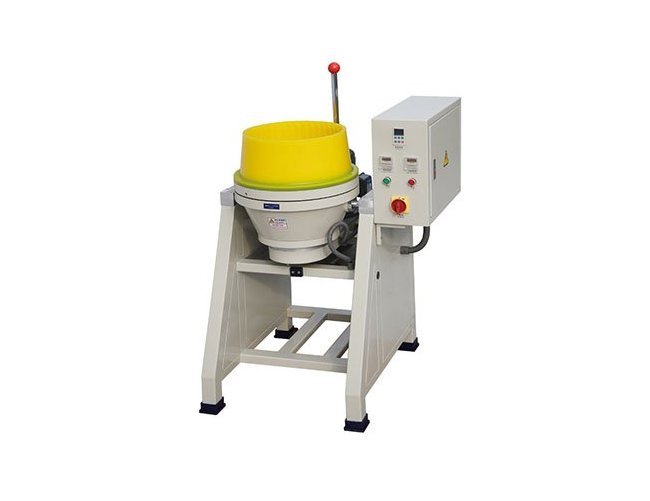

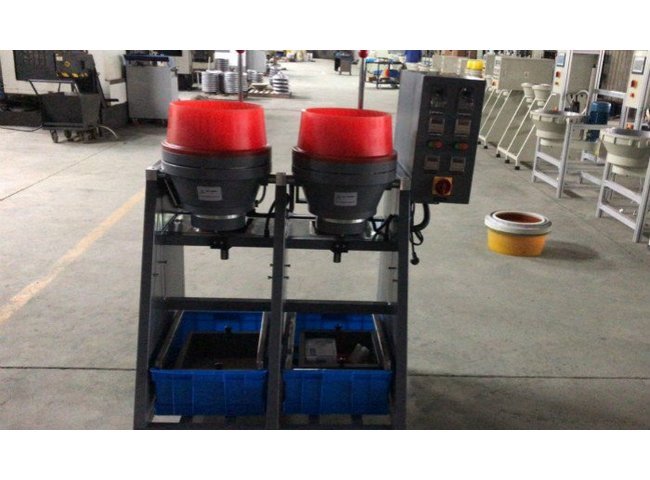

The Inovatec VA Series 1490mm Gyrate Polishing Machine is a high-energy mass finishing solution designed for efficient and precise metal polishing. With a total capacity of 38 x 2 L and patented small gap design, this machine is ideal for polishing delicate workpieces like earrings and pendants. It features automatic heat radiation, speed control, timer control, and forward/reverse movement for enhanced user experience. Perfect for polishing watch components, jewelry parts, electric components, 3D printed parts, amber, and coins.

Product Specifications

Applications

Watch components PolishingJewelry parts PolishingElectric components3D Printed parts post processingAmber PolishingCoin Polishing

Dimensions Height

1440 mm

Dimensions Length

1490 mm

Dimensions Width

800 mm

Features

Grinding barrel and rotating disc pendants of Dow chemical PUThe gap is adjusted by the helix deviceAutomatic heat radiationEquipped with speed control, timer control and forward/reverse movementAutomatic water recyclingCompound dosing system for wet machine

Specifications Barrel Speed

0 to 400 rpm

Specifications Frequency

50 to 60 Hz

Specifications Maximal Workpiece

30 mm

Specifications Motor Power

2.2 kW

Specifications Motor Speed

1430 rpm

Specifications Number Of Motors

Specifications Total Capacity

38 x 2 L

Specifications Voltage

380 V

Specifications Weight

370 kg
