Inovatec VA Series 1690mm Gyrate Polishing Machine
Inovatec VA Series 1690mm Gyrate Polishing Machine
SKU:MAS-1f1dda
Achieve precise and efficient polishing with the Inovatec VA Series 1690mm Gyrate Polishing Machine. Ideal for delicate workpieces like earrings and pendants.
Regular price
$5,999.99
Regular price
Sale price
$5,999.99
Unit price
per
Initiate Order
Inovatec VA Series 1690mm Gyrate Polishing Machine
$5,999.99
Quantity: 1
Claim Your Seller Account
Inovatec VA Series 1690mm Gyrate Polishing Machine
$5,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

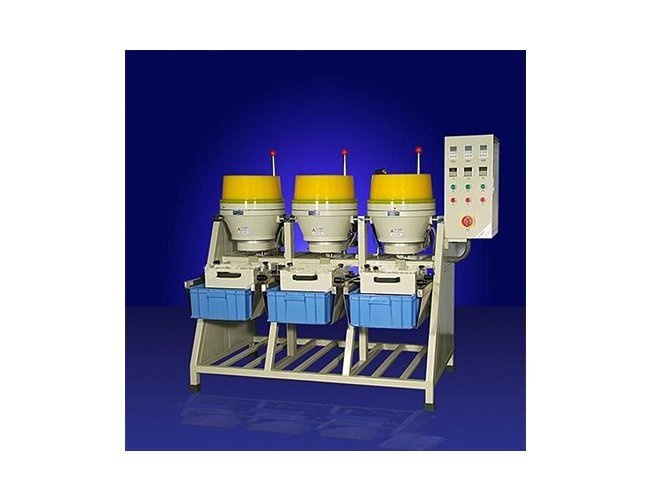

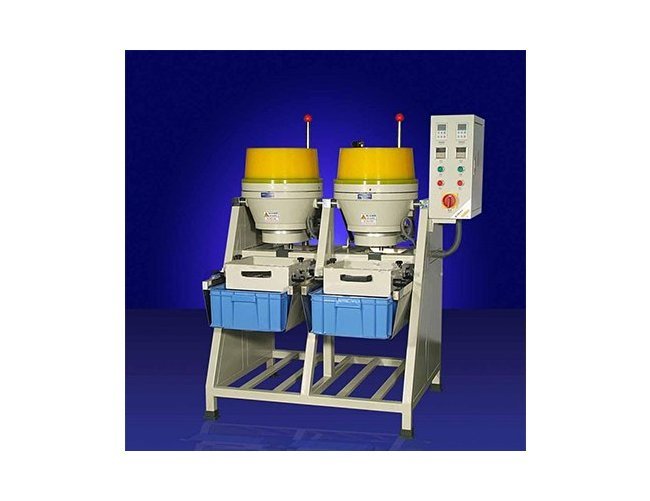

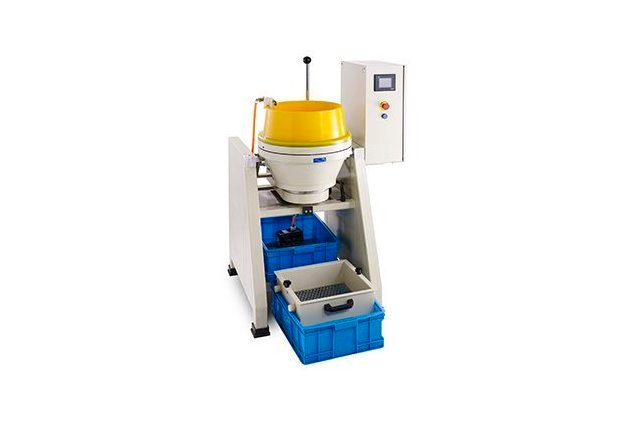

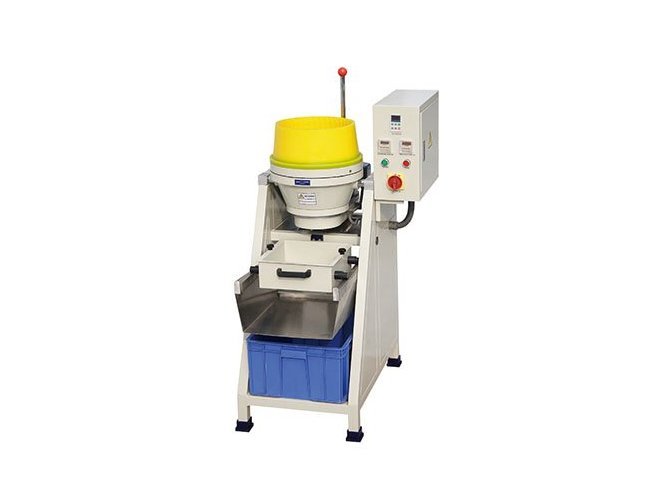

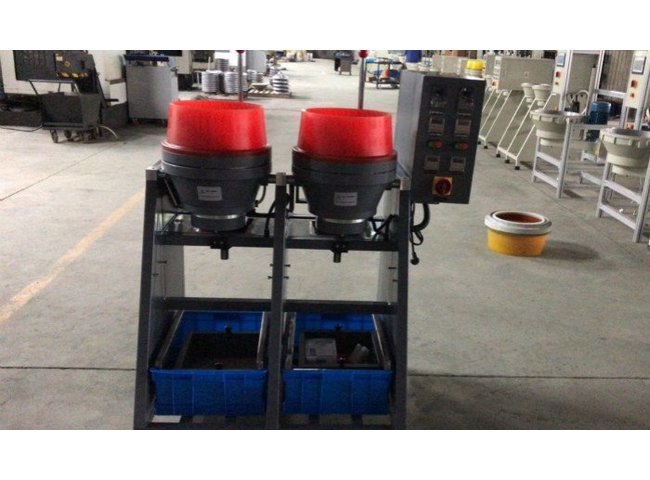

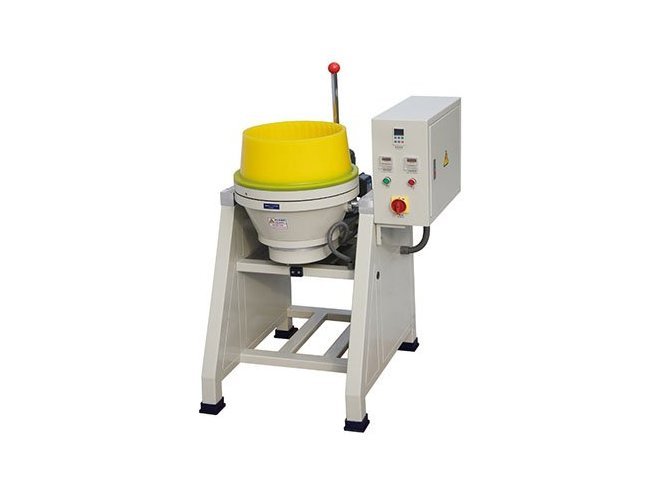

The Inovatec VA Series 1690mm Gyrate Polishing Machine is a high-energy centrifugal disc finisher designed to efficiently handle mass finishing tasks. With a patent small gap design, it can delicately polish thin parts like earrings and pendants, making it ideal for intricate workpieces. This user-friendly machine reduces material handling and manual labor requirements, enhancing productivity. Equipped with features like automatic heat radiation, speed control, and a compound dosing system, it offers precise and efficient polishing for various applications, including watch components, jewelry parts, and 3D printed pieces.
Product Specifications
Applications
Watch components PolishingJewelry parts PolishingElectric components3D Printed parts post processingAmber PolishingCoin Polishing
Dimensions Height
1440 mm
Dimensions Length
1690 mm
Dimensions Width
790 mm
Features
Grinding barrel and rotating disc pendants of Dow chemical PUThe gap is adjusted by the helix deviceAutomatic heat radiationEquipped with speed control, timer control and forward/reverse movementAutomatic water recyclingCompound dosing system for wet machine
Specifications Barrel Speed
0 to 400 rpm
Specifications Frequency
50 to 60 Hz
Specifications Maximal Workpiece
25 mm
Specifications Motor Power
0.75 kW
Specifications Motor Speed
1380 rpm
Specifications Number Of Motors
3
Specifications Total Capacity
20 x 3 L
Specifications Voltage
220 V
Specifications Weight
330 kg
