Inovatec VB(A) Series 31L Vibratory Polishing Machine
Inovatec VB(A) Series 31L Vibratory Polishing Machine
SKU:MAS-b113f0
Achieve superior surface polishing with the Inovatec VB(A) Series 31L Vibratory Polishing Machine. Perfect for batch processing workpieces with precision and efficiency.
Regular price
$1,799.99
Regular price
Sale price
$1,799.99
Unit price
per
Initiate Order
Inovatec VB(A) Series 31L Vibratory Polishing Machine
$1,799.99
Quantity: 1
Claim Your Seller Account
Inovatec VB(A) Series 31L Vibratory Polishing Machine
$1,799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

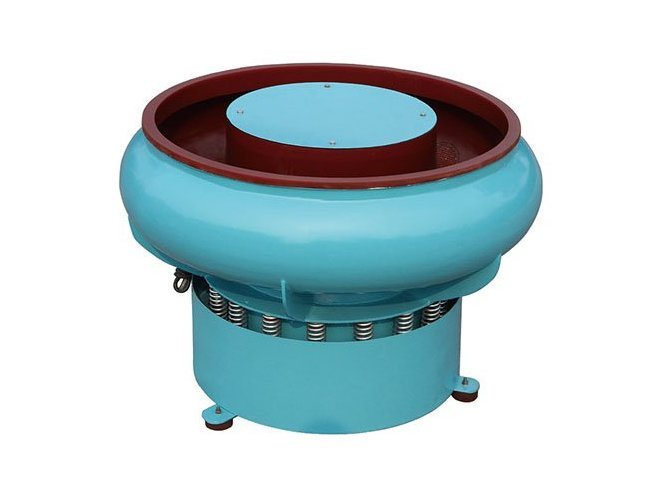

The Inovatec VB(A) Series 31L Vibratory Polishing Machine is a high-performance mass finishing solution specifically designed for batch processing workpieces. With a total volume of 31 liters and a motor power of 0.5 kW, this vibratory polishing machine offers excellent surface polishing through toroidal movement in the custom-made round chamber. It features wear-resistant PU lining from Dow Chemicals, adjustable vibration intensity, and stress-relieved construction, ensuring exceptional tumbling performance and durability. Ideal for ball burnishing and mirror polishing applications, this machine is perfect for achieving a natural shine on various metal parts. Choose from nine models in the VB(A) series to suit your specific requirements.
Product Specifications
Additional Information
Hot-poured PU and heavy-duty vibration motor are the primary components in our high-performance vibratory polishing machines. We make our polyurethane using raw materials sourced from Dow Chemicals, USA. We use an automatic casting machine to solidify the PU, then cure it at a controlled temperature for 24 hours. We use heavy-duty motor from Shanghai Vibration Co. with proper maintenance, it can last more than five years.
Features
This highly effective finishing process reveals the natural shine of the metal parts quickly. The most common applications include surface finishing of coin blanks, electronic components, silverware, and pre-plating parts among others.Inovatec offers nine models with varying features in the VB(A) series. Check out the specifications to select the one that fits your requirements.
Features And Applications
Digital process timerExcellent tumbling performanceStress relieved and enhanced with blastingAdjustable vibration intensityWear resistant PU lining from Dow Chemicals
Optional Settings
Sound coverCompound dosing pumpVariable frequency drivesControl box standing on the floor or hang on the wall
Specifications Machine Height H
810 mm
Specifications Maximum Overall Dimension A
640 mm
Specifications Motor Installation Tube Diameter C
130 mm
Specifications Motor Power
0.5 kW
Specifications Processing Bowl Width D Diameter
185 mm
Specifications Total Volume
31 L
Specifications Tunnel Depth E
225 mm
Specifications Type
Vibratory
Specifications Weight
100 kg
