Inovatec VB(A) Series 340L Vibratory Polishing Machine
Inovatec VB(A) Series 340L Vibratory Polishing Machine
SKU:MAS-d8ab59
Achieve precision and efficiency with the Inovatec VB(A) 340L Vibratory Polishing Machine. Perfect for intensive surface polishing in batch processing applications.
Regular price
$4,999.99
Regular price
Sale price
$4,999.99
Unit price
per
Initiate Order
Inovatec VB(A) Series 340L Vibratory Polishing Machine
$4,999.99
Quantity: 1
Claim Your Seller Account
Inovatec VB(A) Series 340L Vibratory Polishing Machine
$4,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

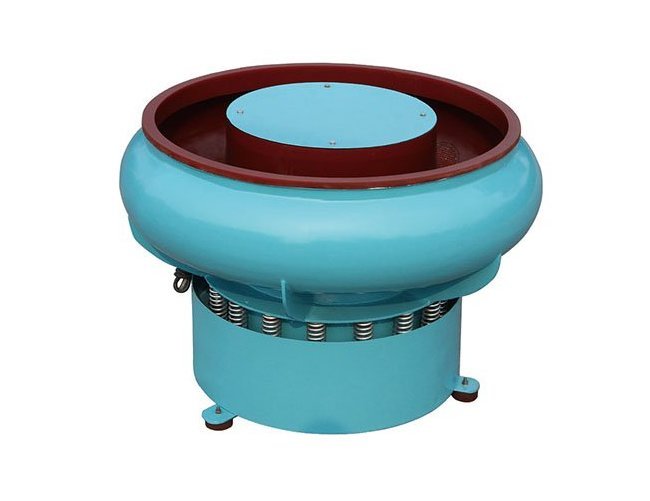

The Inovatec VB(A) Series 340L Vibratory Polishing Machine is a high-performance solution for batch processing workpieces with precision. Featuring a custom-made round chamber for Toroidal movement, this machine delivers intensive surface polishing ideal for ball burnishing and mirror polishing applications. With adjustable vibration intensity and wear-resistant PU lining from Dow Chemicals, it ensures excellent tumbling performance while maintaining durability. Inovatec offers a range of models in the VB(A) series to suit diverse requirements, making it a top choice for achieving efficient and quality metal finishing.
Product Specifications
Additional Information
Hot-poured PU and heavy-duty vibration motor are the primary components in our high-performance vibratory polishing machines. We make our polyurethane using raw materials sourced from Dow Chemicals, USA. We use an automatic casting machine to solidify the PU, then cure it at a controlled temperature for 24 hours. We use heavy-duty motor from Shanghai Vibration Co. with proper maintenance, it can last more than five years.
Features
This highly effective finishing process reveals the natural shine of the metal parts quickly. The most common applications include surface finishing of coin blanks, electronic components, silverware, and pre-plating parts among others.Inovatec offers nine models with varying features in the VB(A) series. Check out the specifications to select the one that fits your requirements.
Features And Applications
Digital process timerExcellent tumbling performanceStress relieved and enhanced with blastingAdjustable vibration intensityWear resistant PU lining from Dow Chemicals
Optional Settings
Sound coverCompound dosing pumpVariable frequency drivesControl box standing on the floor or hang on the wall
Specifications Machine Height H
1080 mm
Specifications Maximum Overall Dimension A
1450 mm
Specifications Motor Installation Tube Diameter C
720 mm
Specifications Motor Power
5.5 kW
Specifications Processing Bowl Width D Diameter
325 mm
Specifications Total Volume
340 L
Specifications Tunnel Depth E
390 mm
Specifications Type
Vibratory
Specifications Weight
520 kg
