Inovatec VB(A) Series 600L Vibratory Polishing Machine
Inovatec VB(A) Series 600L Vibratory Polishing Machine
SKU:MAS-b0c824
Experience efficient and intensive surface polishing with the Inovatec VB(A) Series 600L Vibratory Polishing Machine.
Regular price
$4,999.99
Regular price
Sale price
$4,999.99
Unit price
per
Initiate Order
Inovatec VB(A) Series 600L Vibratory Polishing Machine
$4,999.99
Quantity: 1
Claim Your Seller Account
Inovatec VB(A) Series 600L Vibratory Polishing Machine
$4,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

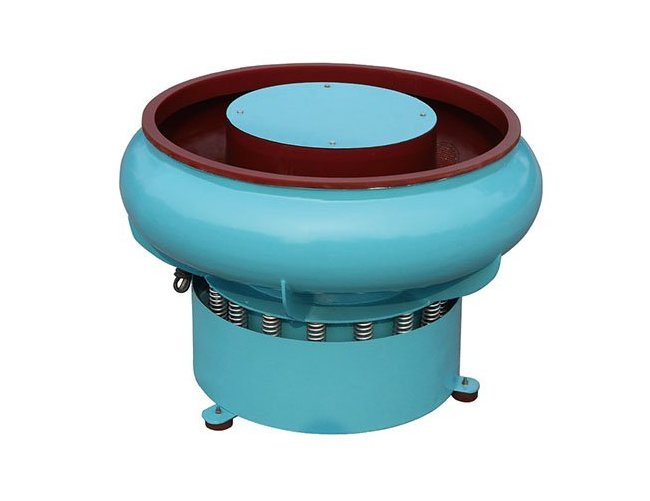

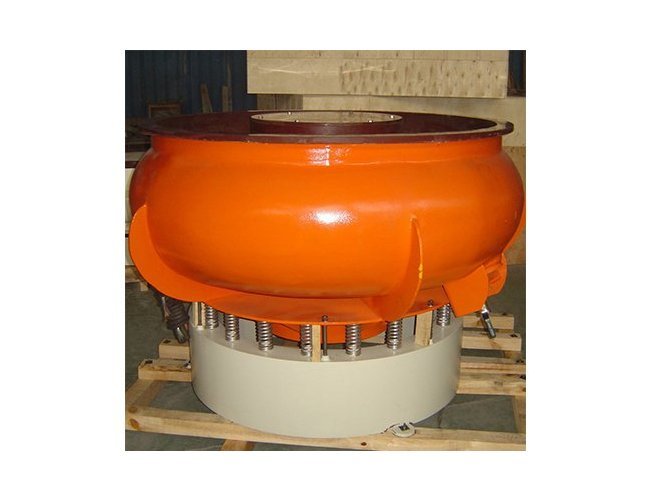

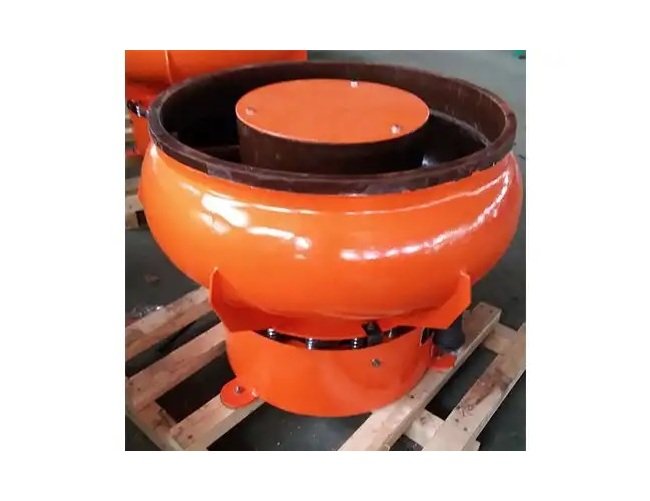

The Inovatec VB(A) Series 600 Liter Total Volume Vibratory Polishing Machine is specifically designed for batch processing workpieces with outstanding Toroidal movement for intensive surface polishing. With a custom-made round machine chamber and rotating tumbling media, this machine excels in ball burnishing and mirror polishing applications. Featuring adjustable vibration intensity, wear-resistant PU lining, and excellent tumbling performance, this machine guarantees quick and efficient surface finishing for various industries.
Product Specifications
Additional Information
Hot-poured PU and heavy-duty vibration motor are the primary components in our high-performance vibratory polishing machines. We make our polyurethane using raw materials sourced from Dow Chemicals, USA. We use an automatic casting machine to solidify the PU, then cure it at a controlled temperature for 24 hours. We use heavy-duty motor from Shanghai Vibration Co. with proper maintenance, it can last more than five years.
Features
This highly effective finishing process reveals the natural shine of the metal parts quickly. The most common applications include surface finishing of coin blanks, electronic components, silverware, and pre-plating parts among others.Inovatec offers nine models with varying features in the VB(A) series. Check out the specifications to select the one that fits your requirements.
Features And Applications
Digital process timerExcellent tumbling performanceStress relieved and enhanced with blastingAdjustable vibration intensityWear resistant PU lining from Dow Chemicals
Optional Settings

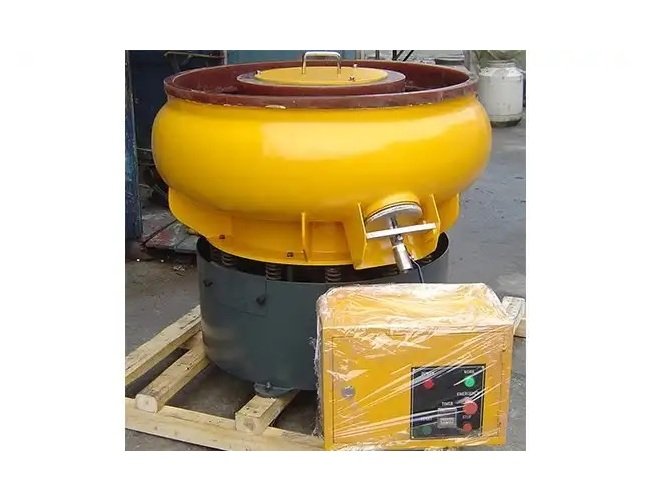

Sound coverCompound dosing pumpVariable frequency drivesControl box standing on the floor or hang on the wall
Specifications Machine Height H
1350 mm
Specifications Maximum Overall Dimension A
1820 mm
Specifications Motor Installation Tube Diameter C
910 mm
Specifications Motor Power
5.5 kW | 7.5 kW
Specifications Processing Bowl Width D Diameter
380 mm
Specifications Total Volume
600 L
Specifications Tunnel Depth E
500 mm
Specifications Type
Vibratory
Specifications Weight
1080 kg
