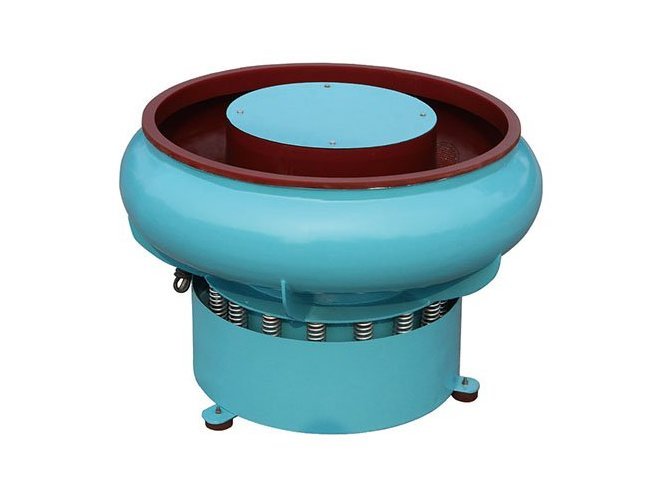

The Inovatec VB(A) Series 78 Liter Vibratory Polishing Machine is a top-of-the-line solution for batch processing workpieces with precision and efficiency. Featuring a custom-made round chamber with Toroidal movement, this machine ensures intensive surface polishing for exceptional results in ball burnishing and mirror polishing applications. With adjustable vibration intensity, wear-resistant PU lining from Dow Chemicals, and stress-relieved construction, this machine guarantees excellent tumbling performance and durability. Ideal for various industries, including coin blanks, electronic components, and silverware manufacturing, the VB(A) Series offers a range of models to suit different requirements.
Product Specifications
Additional Information
Hot-poured PU and heavy-duty vibration motor are the primary components in our high-performance vibratory polishing machines. We make our polyurethane using raw materials sourced from Dow Chemicals, USA. We use an automatic casting machine to solidify the PU, then cure it at a controlled temperature for 24 hours. We use heavy-duty motor from Shanghai Vibration Co. with proper maintenance, it can last more than five years.
Features
This highly effective finishing process reveals the natural shine of the metal parts quickly. The most common applications include surface finishing of coin blanks, electronic components, silverware, and pre-plating parts among others.Inovatec offers nine models with varying features in the VB(A) series. Check out the specifications to select the one that fits your requirements.
Features And Applications
Digital process timerExcellent tumbling performanceStress relieved and enhanced with blastingAdjustable vibration intensityWear resistant PU lining from Dow Chemicals
Optional Settings
Sound coverCompound dosing pumpVariable frequency drivesControl box standing on the floor or hang on the wall
Specifications Machine Height H
920 mm
Specifications Maximum Overall Dimension A
830 mm
Specifications Motor Installation Tube Diameter C
226 mm
Specifications Motor Power
0.75 kW | 1.1 kW
Specifications Processing Bowl Width D Diameter
224 mm
Specifications Total Volume
78 L
Specifications Tunnel Depth E
270 mm
Specifications Type
Vibratory
Specifications Weight
120 kg
