Inovatec VB(A) Series 900L Vibratory Polishing Machine
Inovatec VB(A) Series 900L Vibratory Polishing Machine
SKU:MAS-2a55d4
Achieve precision polishing with the Inovatec VB(A) Series 900L Vibratory Polishing Machine, ideal for ball burnishing and mirror polishing applications.
Regular price
$8,999.99
Regular price
Sale price
$8,999.99
Unit price
per
Initiate Order
Inovatec VB(A) Series 900L Vibratory Polishing Machine
$8,999.99
Quantity: 1
Claim Your Seller Account
Inovatec VB(A) Series 900L Vibratory Polishing Machine
$8,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

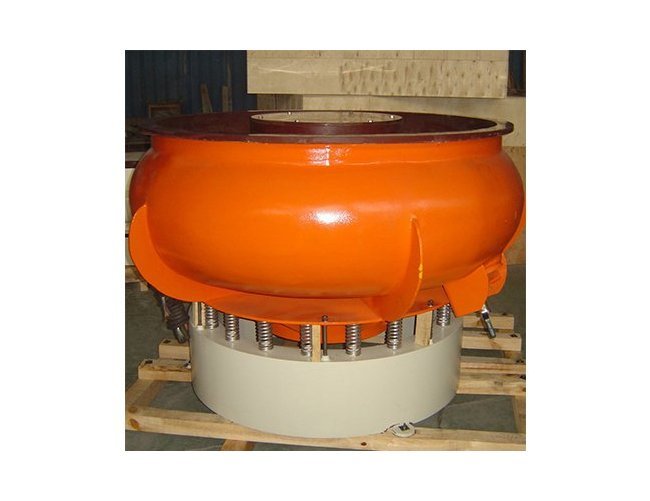

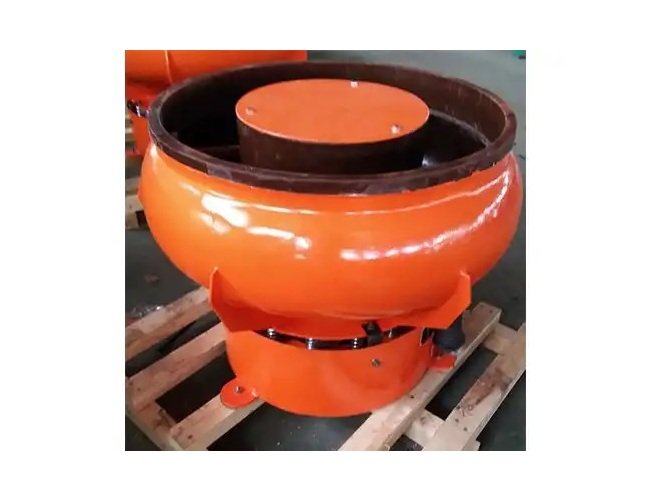

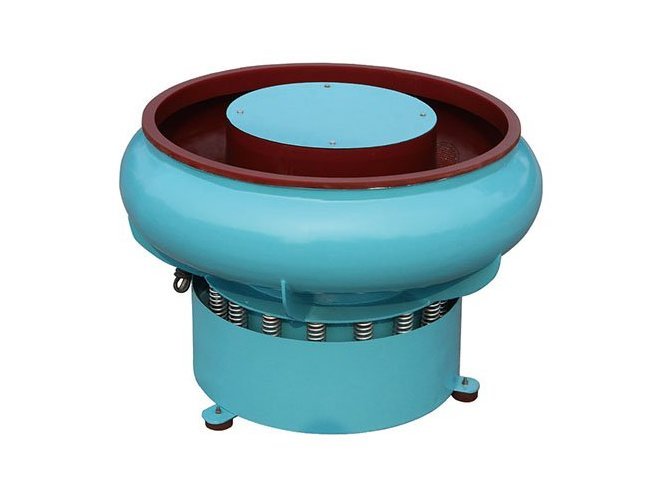

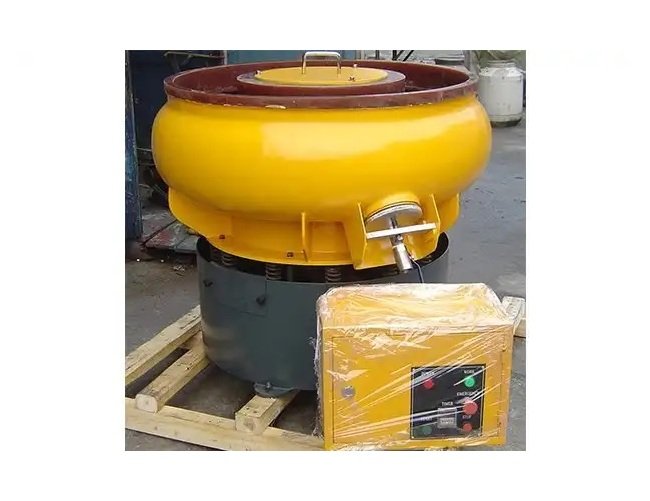

The Inovatec VB(A) Series 900L Vibratory Polishing Machine is a high-performance solution for batch processing workpieces. Designed with a custom-made round chamber for Toroidal movement, it provides intensive surface polishing, making it ideal for ball burnishing and mirror polishing applications. With features like adjustable vibration intensity, wear-resistant PU lining, and digital process timer, this machine ensures excellent tumbling performance. Inovatec's commitment to quality is evident in the use of components like hot-poured PU and a heavy-duty vibration motor, sourced from reputable manufacturers like Dow Chemicals and Shanghai Vibration Co. Choose reliability and efficiency with Inovatec.
Product Specifications
Additional Information
Hot-poured PU and heavy-duty vibration motor are the primary components in our high-performance vibratory polishing machines. We make our polyurethane using raw materials sourced from Dow Chemicals, USA. We use an automatic casting machine to solidify the PU, then cure it at a controlled temperature for 24 hours. We use heavy-duty motor from Shanghai Vibration Co. with proper maintenance, it can last more than five years.
Features
This highly effective finishing process reveals the natural shine of the metal parts quickly. The most common applications include surface finishing of coin blanks, electronic components, silverware, and pre-plating parts among others.Inovatec offers nine models with varying features in the VB(A) series. Check out the specifications to select the one that fits your requirements.
Features And Applications
Digital process timerExcellent tumbling performanceStress relieved and enhanced with blastingAdjustable vibration intensityWear resistant PU lining from Dow Chemicals
Optional Settings
Sound coverCompound dosing pumpVariable frequency drivesControl box standing on the floor or hang on the wall
Specifications Machine Height H
1330 mm
Specifications Maximum Overall Dimension A
1930 mm
Specifications Motor Installation Tube Diameter C
610 mm
Specifications Motor Power
11.0 kW | 9.0 kW
Specifications Processing Bowl Width D Diameter
560 mm
Specifications Total Volume
900 L
Specifications Tunnel Depth E
490 mm
Specifications Type
Vibratory
Specifications Weight
1850 kg
