Inovatec VB(B) 1300L Vibratory Finishing Machine
Inovatec VB(B) 1300L Vibratory Finishing Machine
SKU:MAS-3c270d
Achieve exceptional surface finishing with the Inovatec VB(B) 1300L Vibratory Finisher's durability and precision.
Regular price
$8,999.99
Regular price
Sale price
$8,999.99
Unit price
per
Initiate Order
Inovatec VB(B) 1300L Vibratory Finishing Machine
$8,999.99
Quantity: 1
Claim Your Seller Account
Inovatec VB(B) 1300L Vibratory Finishing Machine
$8,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

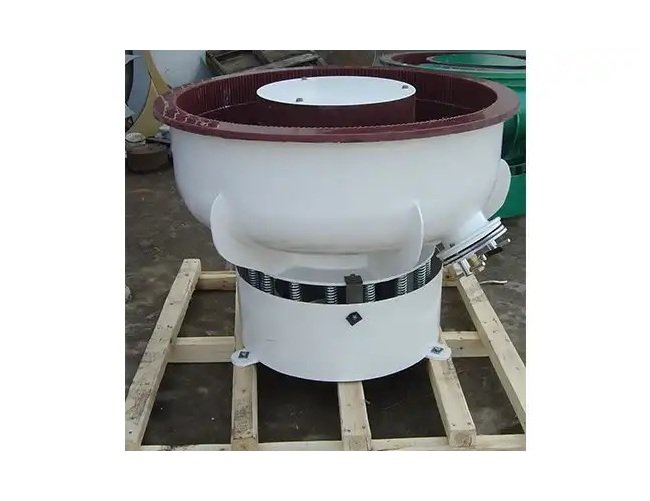

The Inovatec VB(B) Series 1300L Vibratory Finishing Machine is designed for processing large-sized and heavy mechanical parts with precision and efficiency. Featuring a wide chamber wall, this machine accommodates various media types, including pebble stones and river stones, for superior surface finishing. With a strong emphasis on durability and performance, it is equipped with a high-quality heavy-duty vibration motor and wear-resistant PU lining from Dow Chemicals. The machine offers adjustable settings for vibration intensity and imbalance weights, ensuring optimal results in pre-finishing metal parts. Enhance your finishing processes with this versatile and reliable vibratory finisher.
Product Specifications
Features
Hot-poured PU and a heavy-duty vibration motor are the primary components in our high-performance vibratory finishers. We make our polyurethane using raw materials sourced from Dow Chemicals, USA. We use an automatic casting machine to solidify the PU, then cure it at a controlled temperature for 24 hours.The sintered PU has 90-D hardness, ensuring wear resistance and durable performance. We use heavy-duty motor from Shanghai Vibration Co. With proper maintenance, it can last more than five years.Using a vibratory finisher VB(B) series machine will result in the following:Better wear resistanceElectrical conductivityBrightnessCorrosion resistancePaintabilityBond to rubberChemical resistanceHarness
Features And Applications
Digital process timerWide opening for big size partsStress relieved and enhanced with blastingAdjustable imbalance weightsAdjustable vibration intensityWear resistant PU lining from Dow ChemicalsHot-poured PU and a heavy-duty vibration motor are the primary components in our high-performance vibratory finishers. We make our polyurethane using raw materials sourced from Dow Chemicals, USA. We use an automatic casting machine to solidify the PU, then cure it at a controlled temperature for 24 hours.The sintered PU has 90-D hardness, ensuring wear resistance and durable performance. We use heavy-duty motor from Shanghai Vibration Co. With proper maintenance, it can last more than five years.Using a vibratory finisher VB(B) series machine will result in the following:Better wear resistanceElectrical conductivityBrightnessCorrosion resistancePaintabilityBond to rubberChemical resistanceHarness
Optional Settings
Sound coverCompound dosing pumpVariable frequency drivesControl box standing on the floor or hang on the wall
Specifications Machine Height H
1350 mm
Specifications Maximum Overall Dimension A
1930 mm
Specifications Motor Installation Tube Diameter C
610 mm
Specifications Motor Power
11 kW
Specifications Processing Bowl Width D Diameter
560 mm
Specifications Total Volume
1300 L
Specifications Tunnel Depth E
575 mm
Specifications Type
Vibratory
Specifications Weight
2200 kg
