Inovatec VB(B) 1500L Vibratory Finishing Machine
Inovatec VB(B) 1500L Vibratory Finishing Machine
SKU:MAS-3d8c3e
Achieve superior metal part finishing with Inovatec's 1500L Vibratory Finishing Machine for large-sized components. Enhanced wear resistance and surface quality.
Regular price
$10,999.99
Regular price
Sale price
$10,999.99
Unit price
per
Initiate Order
Inovatec VB(B) 1500L Vibratory Finishing Machine
$10,999.99
Quantity: 1
Claim Your Seller Account
Inovatec VB(B) 1500L Vibratory Finishing Machine
$10,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

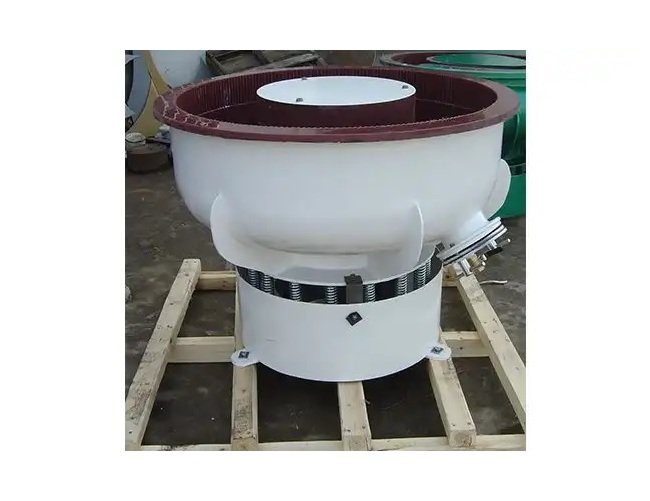

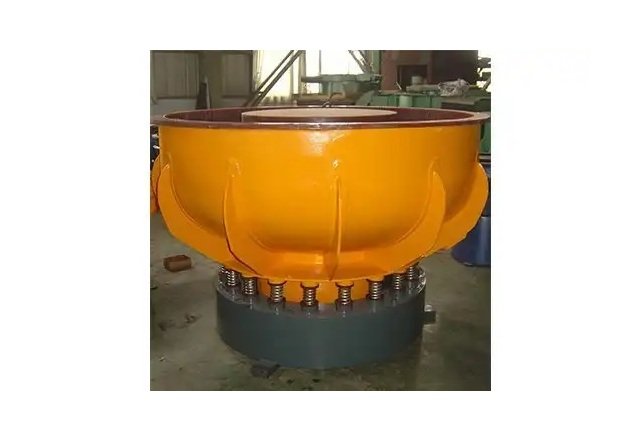

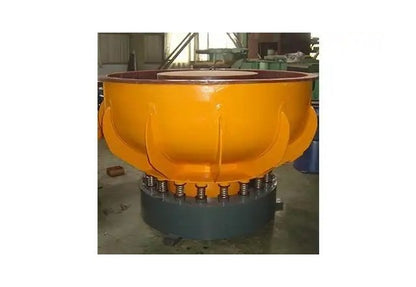

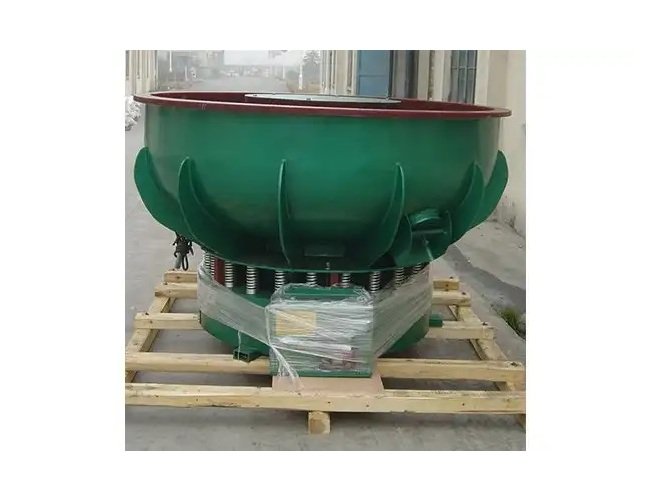

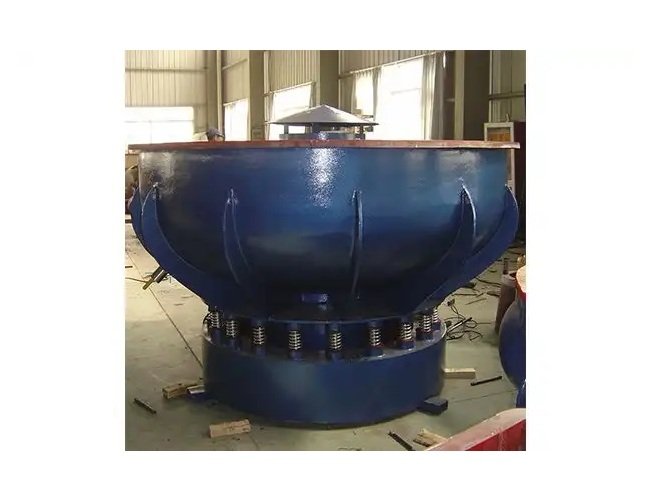

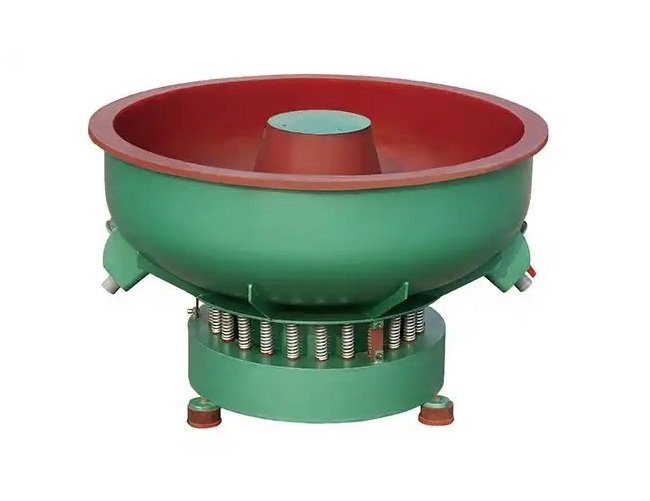

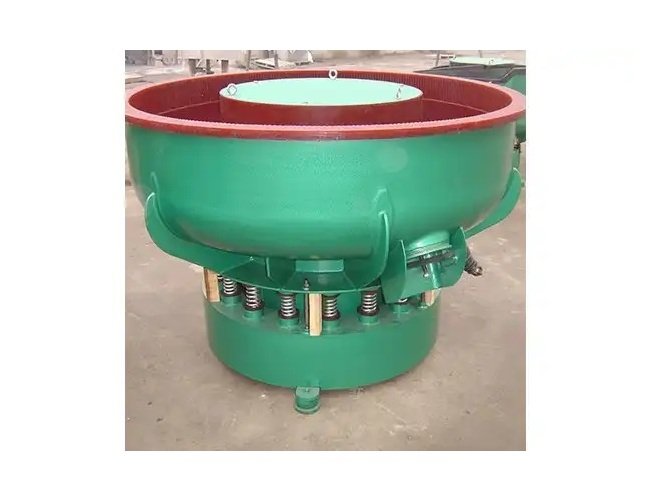

Enhance your metal parts finishing process with the Inovatec VB(B) Series 1500L Vibratory Finishing Machine. Featuring a high-performance heavy-duty vibration motor and wear-resistant PU lining, this machine ensures superior wear resistance, electrical conductivity, brightness, and more. With adjustable settings and stress-relieved design, achieve precise surface finishing for large-sized and heavy mechanical parts like gear housing, shafts, and more. Invest in efficiency and durability with Inovatec's state-of-the-art vibratory finishing equipment.
Product Specifications
Features
Hot-poured PU and a heavy-duty vibration motor are the primary components in our high-performance vibratory finishers. We make our polyurethane using raw materials sourced from Dow Chemicals, USA. We use an automatic casting machine to solidify the PU, then cure it at a controlled temperature for 24 hours.The sintered PU has 90-D hardness, ensuring wear resistance and durable performance. We use heavy-duty motor from Shanghai Vibration Co. With proper maintenance, it can last more than five years.Using a vibratory finisher VB(B) series machine will result in the following:Better wear resistanceElectrical conductivityBrightnessCorrosion resistancePaintabilityBond to rubberChemical resistanceHarness
Features And Applications
Digital process timerWide opening for big size partsStress relieved and enhanced with blastingAdjustable imbalance weightsAdjustable vibration intensityWear resistant PU lining from Dow ChemicalsHot-poured PU and a heavy-duty vibration motor are the primary components in our high-performance vibratory finishers. We make our polyurethane using raw materials sourced from Dow Chemicals, USA. We use an automatic casting machine to solidify the PU, then cure it at a controlled temperature for 24 hours.The sintered PU has 90-D hardness, ensuring wear resistance and durable performance. We use heavy-duty motor from Shanghai Vibration Co. With proper maintenance, it can last more than five years.Using a vibratory finisher VB(B) series machine will result in the following:Better wear resistanceElectrical conductivityBrightnessCorrosion resistancePaintabilityBond to rubberChemical resistanceHarness
Optional Settings
Sound coverCompound dosing pumpVariable frequency drivesControl box standing on the floor or hang on the wall
Specifications Machine Height H
1420 mm
Specifications Maximum Overall Dimension A
2120 mm
Specifications Motor Installation Tube Diameter C
690 mm
Specifications Motor Power
15 kW
Specifications Processing Bowl Width D Diameter
630 mm
Specifications Total Volume
1500 L
Specifications Tunnel Depth E
630 mm
Specifications Type
Vibratory
Specifications Weight
2400 kg
