Inovatec VB(B) Series 100L Vibratory Finishing Machine
Inovatec VB(B) Series 100L Vibratory Finishing Machine
SKU:MAS-f0013f
Achieve superior surface finishes with the Inovatec VB(B) Series 100L Vibratory Finishing Machine for metal parts.
Regular price
$4,899.99
Regular price
Sale price
$4,899.99
Unit price
per
Initiate Order
Inovatec VB(B) Series 100L Vibratory Finishing Machine
$4,899.99
Quantity: 1
Claim Your Seller Account
Inovatec VB(B) Series 100L Vibratory Finishing Machine
$4,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

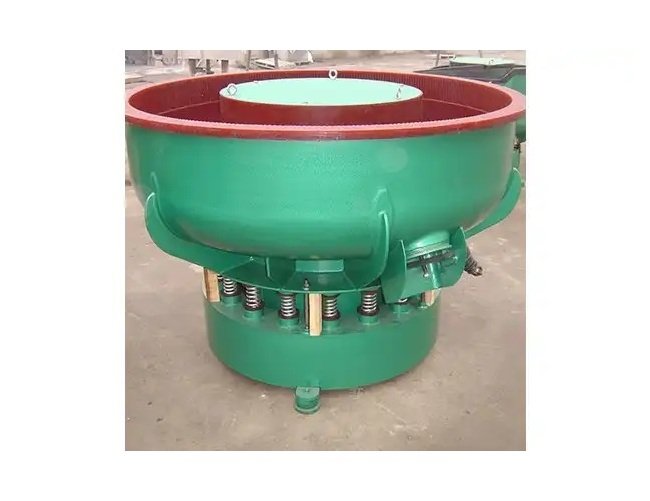

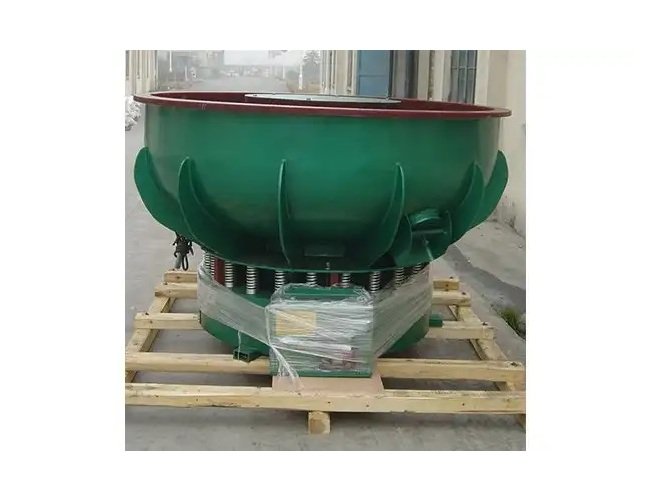

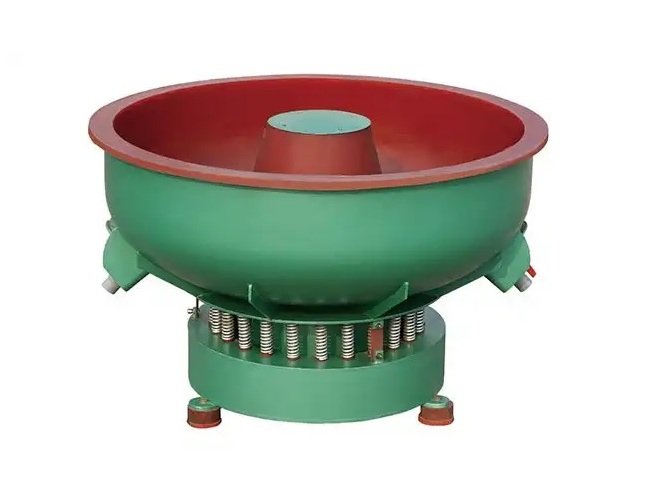

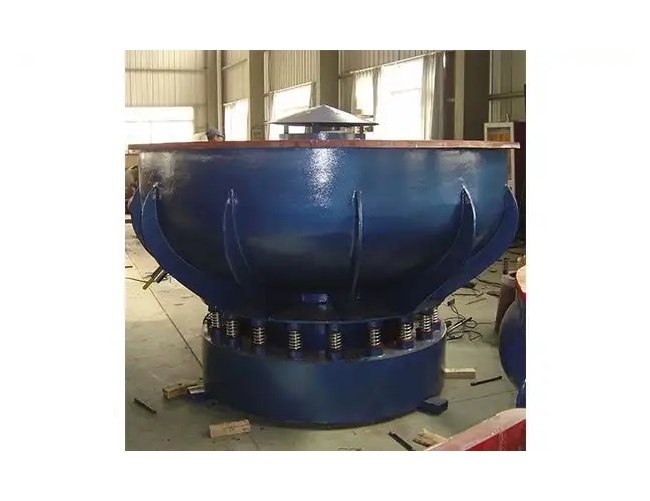

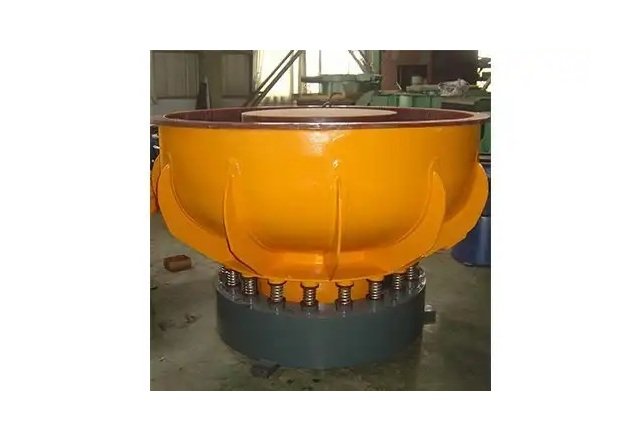

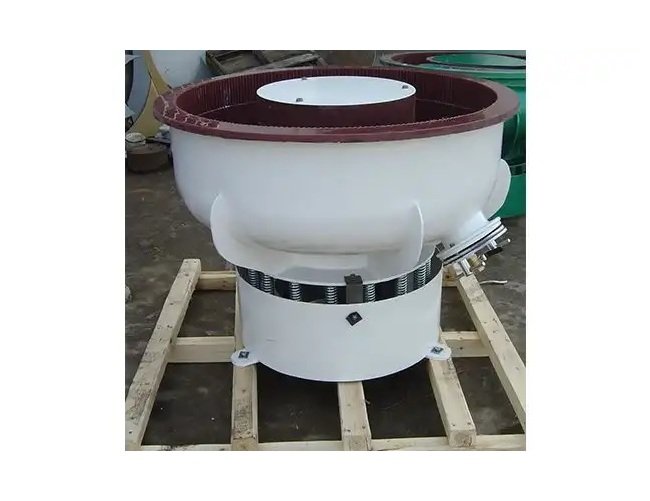

The Inovatec VB(B) Series 100L Vibratory Finishing Machine offers a high-speed vibratory motion that ensures exceptional surface finishes for metal parts. With a 100L total volume and heavy-duty components like hot-poured PU lining and a durable vibration motor, this machine guarantees wear resistance, electrical conductivity, and more. Ideal for pre-finishing gear parts, shafts, and gear housings, it also features adjustable settings, a digital process timer, and stress-relieved construction. Experience enhanced durability and performance with this industry-leading vibratory finisher.
Product Specifications
Features
Hot-poured PU and a heavy-duty vibration motor are the primary components in our high-performance vibratory finishers. We make our polyurethane using raw materials sourced from Dow Chemicals, USA. We use an automatic casting machine to solidify the PU, then cure it at a controlled temperature for 24 hours.The sintered PU has 90-D hardness, ensuring wear resistance and durable performance. We use heavy-duty motor from Shanghai Vibration Co. With proper maintenance, it can last more than five years.Using a vibratory finisher VB(B) series machine will result in the following:Better wear resistanceElectrical conductivityBrightnessCorrosion resistancePaintabilityBond to rubberChemical resistanceHarness
Features And Applications
Digital process timerWide opening for big size partsStress relieved and enhanced with blastingAdjustable imbalance weightsAdjustable vibration intensityWear resistant PU lining from Dow ChemicalsHot-poured PU and a heavy-duty vibration motor are the primary components in our high-performance vibratory finishers. We make our polyurethane using raw materials sourced from Dow Chemicals, USA. We use an automatic casting machine to solidify the PU, then cure it at a controlled temperature for 24 hours.The sintered PU has 90-D hardness, ensuring wear resistance and durable performance. We use heavy-duty motor from Shanghai Vibration Co. With proper maintenance, it can last more than five years.Using a vibratory finisher VB(B) series machine will result in the following:Better wear resistanceElectrical conductivityBrightnessCorrosion resistancePaintabilityBond to rubberChemical resistanceHarness
Optional Settings
Sound coverCompound dosing pumpVariable frequency drivesControl box standing on the floor or hang on the wall
Specifications Machine Height H
860 mm
Specifications Maximum Overall Dimension A
1020 mm
Specifications Motor Installation Tube Diameter C
470 mm
Specifications Motor Power
1.5 kW | 2.2 kW
Specifications Processing Bowl Width D Diameter
216 mm
Specifications Total Volume
100 L
Specifications Tunnel Depth E
330 mm
Specifications Type
Vibratory
Specifications Weight
260 kg
