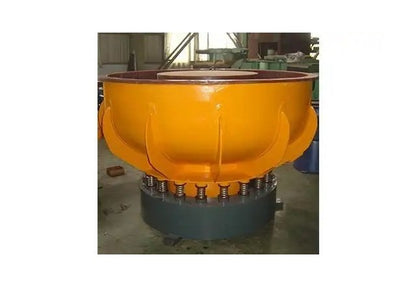

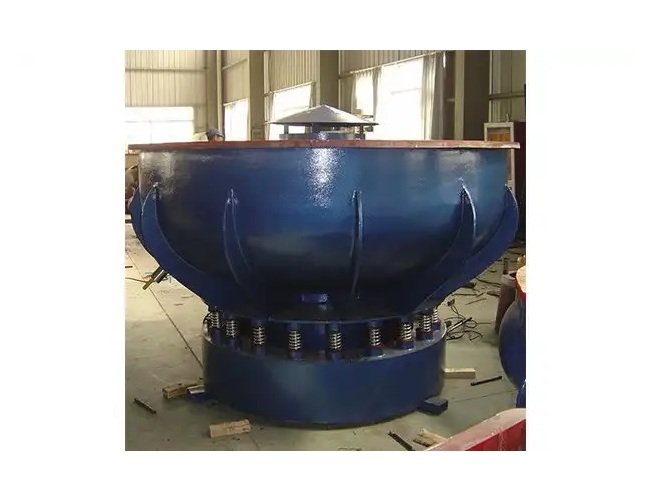

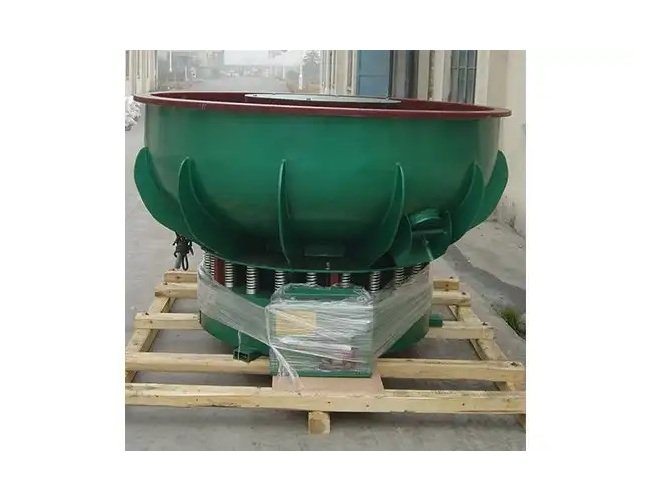

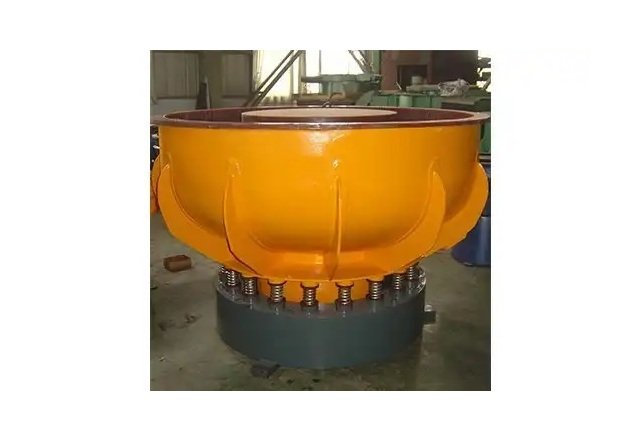

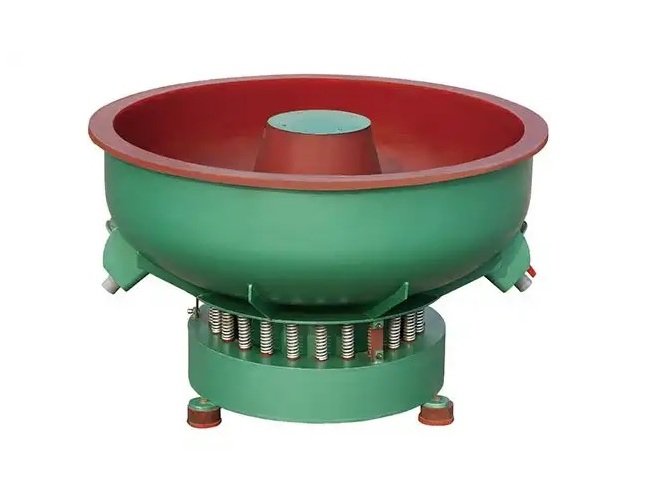

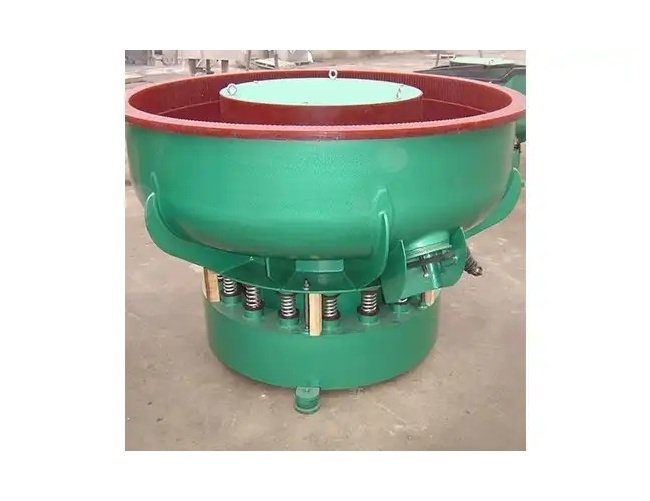

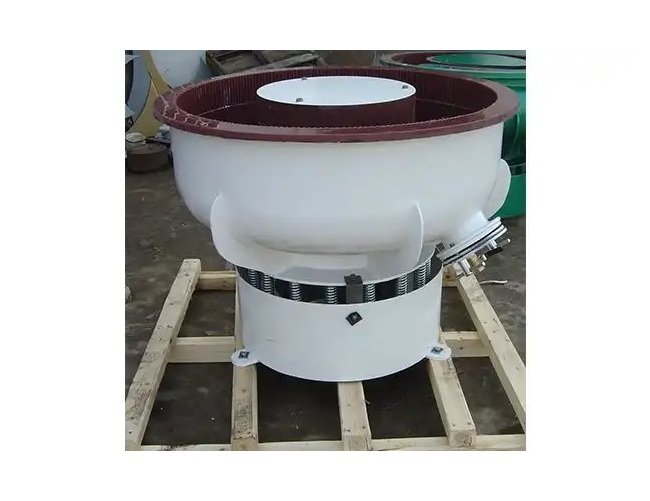

Inovatec VB(B) Series 220L Vibratory Finishing Machine
Inovatec VB(B) Series 220L Vibratory Finishing Machine
SKU:MAS-bc9518
Achieve superior surface finishes with Inovatec's VB(B) Series 220L Vibratory Finishing Machine.
Regular price
$8,999.99
Regular price
Sale price
$8,999.99
Unit price
per
Initiate Order
Inovatec VB(B) Series 220L Vibratory Finishing Machine
$8,999.99
Quantity: 1
Claim Your Seller Account
Inovatec VB(B) Series 220L Vibratory Finishing Machine
$8,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Inovatec VB(B) Series 220L Vibratory Finishing Machine is a high-performance solution for pre-finishing metal parts. With features like hot-poured PU components and a heavy-duty vibration motor, it ensures wear resistance, brightness, and corrosion resistance. This machine offers adjustable settings, wide part compatibility, and durable PU lining for extended lifespan. It meets rigorous industry standards for quality and performance, making it ideal for institutional and government procurement needs.
Product Specifications
Features
Hot-poured PU and a heavy-duty vibration motor are the primary components in our high-performance vibratory finishers. We make our polyurethane using raw materials sourced from Dow Chemicals, USA. We use an automatic casting machine to solidify the PU, then cure it at a controlled temperature for 24 hours.The sintered PU has 90-D hardness, ensuring wear resistance and durable performance. We use heavy-duty motor from Shanghai Vibration Co. With proper maintenance, it can last more than five years.Using a vibratory finisher VB(B) series machine will result in the following:Better wear resistanceElectrical conductivityBrightnessCorrosion resistancePaintabilityBond to rubberChemical resistanceHarness
Features And Applications
Digital process timerWide opening for big size partsStress relieved and enhanced with blastingAdjustable imbalance weightsAdjustable vibration intensityWear resistant PU lining from Dow ChemicalsHot-poured PU and a heavy-duty vibration motor are the primary components in our high-performance vibratory finishers. We make our polyurethane using raw materials sourced from Dow Chemicals, USA. We use an automatic casting machine to solidify the PU, then cure it at a controlled temperature for 24 hours.The sintered PU has 90-D hardness, ensuring wear resistance and durable performance. We use heavy-duty motor from Shanghai Vibration Co. With proper maintenance, it can last more than five years.Using a vibratory finisher VB(B) series machine will result in the following:Better wear resistanceElectrical conductivityBrightnessCorrosion resistancePaintabilityBond to rubberChemical resistanceHarness
Optional Settings
Sound coverCompound dosing pumpVariable frequency drivesControl box standing on the floor or hang on the wall
Specifications Machine Height H
915 mm
Specifications Maximum Overall Dimension A
1200 mm
Specifications Motor Installation Tube Diameter C
626 mm
Specifications Motor Power
3.0 kW
Specifications Processing Bowl Width D Diameter
220 mm
Specifications Total Volume
220 L
Specifications Tunnel Depth E
385 mm
Specifications Type
Vibratory
Specifications Weight
420 kg
