Inovatec VBS(A) Series 100 L Industrial Vibratory Tumbler
Inovatec VBS(A) Series 100 L Industrial Vibratory Tumbler
SKU:MAS-a329b9
Efficiently tumble and finish various workpieces with Inovatec's high-performance 100 L Industrial Vibratory Tumbler.
Regular price
$2,999.99
Regular price
Sale price
$2,999.99
Unit price
per
Initiate Order
Inovatec VBS(A) Series 100 L Industrial Vibratory Tumbler
$2,999.99
Quantity: 1
Claim Your Seller Account
Inovatec VBS(A) Series 100 L Industrial Vibratory Tumbler
$2,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

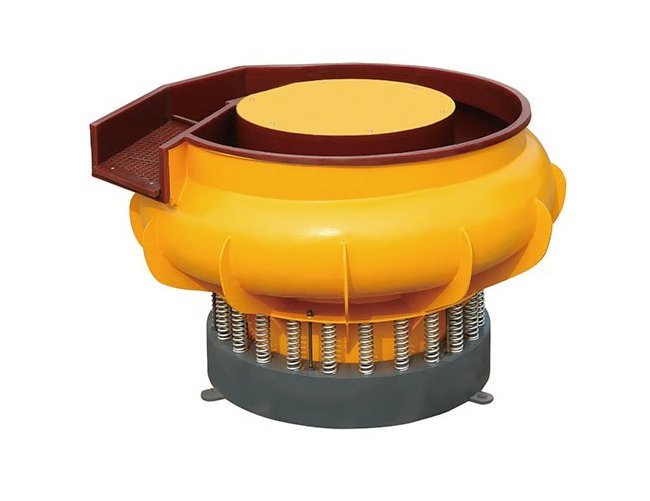

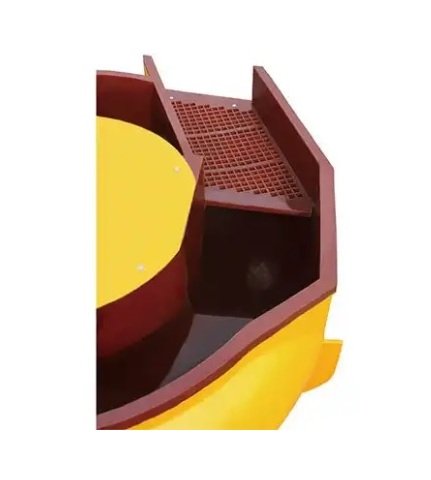

Experience superior tumbling efficiency with the Inovatec VBS(A) Series 100 L Industrial Vibratory Tumbler. Its curved bowl design applies optimal pressure for quick tumbling, preventing workpieces from sticking. The extended separation sieve and adjustable holes cater to diverse tumbling media. This high-end tumbler, featuring a heavy-duty vibration motor and wear-resistant PU lining, delivers uniform surface finishing for aluminum, brass, copper, stainless steel, and iron workpieces, making it ideal for de-burring, polishing, cleaning, and edge radiusing.
Product Specifications
Additional Information
Hot-poured PU and a heavy-duty vibration motor are the primary components in our high-end industrial vibratory tumblers. We make our polyurethane using raw materials sourced from Dow Chemicals, USA.We use an automatic casting machine to solidify the PU, then cure it at a controlled temperature for 24 hours. We use heavy-duty motor from Shanghai Vibration Co. With proper maintenance, it can last more than five years.
Features
You can use Inovatec industrial vibratory tumbler VBS(A) series for de-burring, polishing, cleaning, and edge radiusing of aluminum, brass, copper, stainless steel, and iron workpieces. This processing machine provides uniform surface finishing for all types of workpieces.
Features And Applications
Digital process timerLow profile designStress relieved and enhanced with blastingDefault manual parts media separationWear resistant PU lining from Dow Chemicals
Optional Settings
Sound CoverCompound Dosing PumpPneumatic flap controlVariable Frequency DrivesControl box standing on the floor or hang on the wall
Specifications Bowl Tunnel Width C Diameter
220 mm
Specifications Machine Height H1
880 mm
Specifications Maximum Overall Dimension A
980 mm
Specifications Media Unload Height H3
290 mm
Specifications Motor Installation Tube Diameter B
470 mm
Specifications Motor Power
1.5 kW | 2.2 kW
Specifications Total Volume
100 L
Specifications Type
Tumbler
Specifications Unload Height H2
760 mm
Specifications Unload Width
250 mm
Specifications Weight
280 kg
