Inovatec VBS(A) Series 200L Industrial Vibratory Tumbler
Inovatec VBS(A) Series 200L Industrial Vibratory Tumbler
SKU:MAS-6699c9
Enhance mass finishing efficiency with the Inovatec Industrial Vibratory Tumbler - ideal for de-burring, polishing, and cleaning various metal workpieces.
Regular price
$6,299.99
Regular price
Sale price
$6,299.99
Unit price
per
Initiate Order
Inovatec VBS(A) Series 200L Industrial Vibratory Tumbler
$6,299.99
Quantity: 1
Claim Your Seller Account
Inovatec VBS(A) Series 200L Industrial Vibratory Tumbler
$6,299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

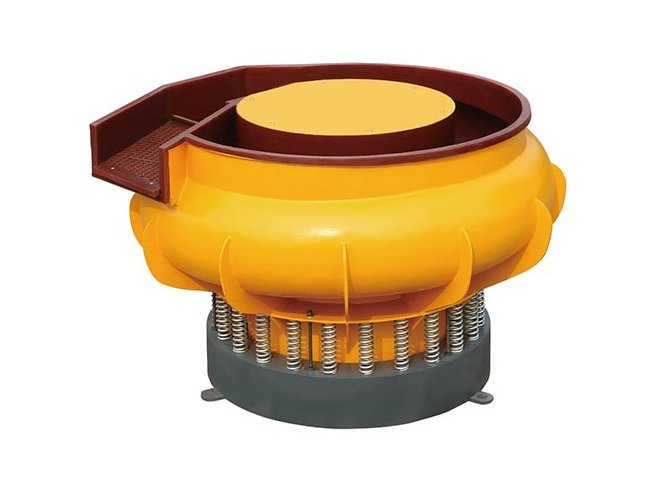

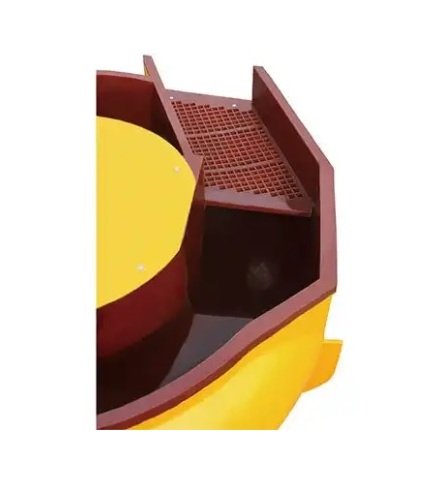

The Inovatec VBS(A) Series 200 Liter Industrial Vibratory Tumbler boasts a curved bowl design that enhances tumbling efficiency, ensuring quicker and more effective surface finishing. Featuring an extended separation sieve for easy media and workpiece separation, this tumbler allows for customizable hole sizes to accommodate various media types. With a sturdy construction and wear-resistant PU lining from Dow Chemicals, this tumbler is ideal for de-burring, polishing, and cleaning various metal workpieces, providing consistent and high-quality results. Equipped with a heavy-duty vibration motor and a range of optional settings, this tumbler offers reliability, durability, and precision in mass finishing applications.
Product Specifications
Additional Information
Hot-poured PU and a heavy-duty vibration motor are the primary components in our high-end industrial vibratory tumblers. We make our polyurethane using raw materials sourced from Dow Chemicals, USA.We use an automatic casting machine to solidify the PU, then cure it at a controlled temperature for 24 hours. We use heavy-duty motor from Shanghai Vibration Co. With proper maintenance, it can last more than five years.
Features
You can use Inovatec industrial vibratory tumbler VBS(A) series for de-burring, polishing, cleaning, and edge radiusing of aluminum, brass, copper, stainless steel, and iron workpieces. This processing machine provides uniform surface finishing for all types of workpieces.
Features And Applications
Digital process timerLow profile designStress relieved and enhanced with blastingDefault manual parts media separationWear resistant PU lining from Dow Chemicals
Optional Settings
Sound CoverCompound Dosing PumpPneumatic flap controlVariable Frequency DrivesControl box standing on the floor or hang on the wall
Specifications Bowl Tunnel Width C Diameter
252 mm
Specifications Machine Height H1
940 mm
Specifications Maximum Overall Dimension A
1060 mm
Specifications Media Unload Height H3
360 mm
Specifications Motor Installation Tube Diameter B
530 mm
Specifications Motor Power
3.0 kW
Specifications Total Volume
200 L
Specifications Type
Tumbler
Specifications Unload Height H2
780 mm
Specifications Unload Width
266 mm
Specifications Weight
460 kg
