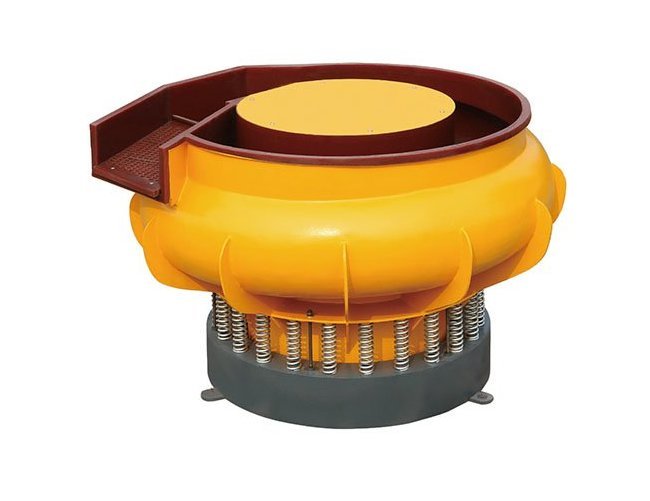

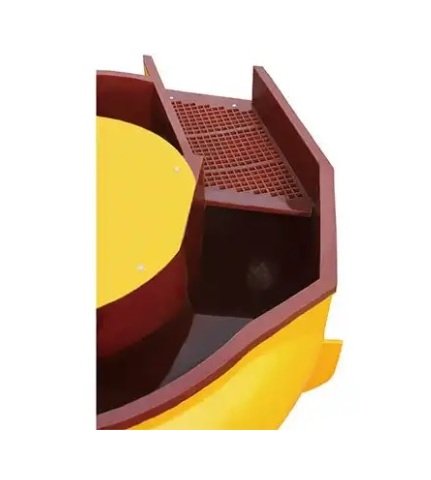

Experience unparalleled efficiency with the Inovatec VBS(A) Series 260 Liter Industrial Vibratory Tumbler. The unique curved bowl design exerts optimal pressure on workpieces, reducing tumbling time and preventing sticking. Featuring an extended separation sieve for efficient media and workpiece segregation, this tumbler boasts adjustable settings for tailored performance. With wear-resistant PU lining and heavy-duty components, this tumbler ensures uniform surface finishing for various metals. Ideal for deburring, polishing, and cleaning, this tumbler stands out for its reliability and performance.
Product Specifications
Additional Information
Hot-poured PU and a heavy-duty vibration motor are the primary components in our high-end industrial vibratory tumblers. We make our polyurethane using raw materials sourced from Dow Chemicals, USA.We use an automatic casting machine to solidify the PU, then cure it at a controlled temperature for 24 hours. We use heavy-duty motor from Shanghai Vibration Co. With proper maintenance, it can last more than five years.
Features
You can use Inovatec industrial vibratory tumbler VBS(A) series for de-burring, polishing, cleaning, and edge radiusing of aluminum, brass, copper, stainless steel, and iron workpieces. This processing machine provides uniform surface finishing for all types of workpieces.
Features And Applications
Digital process timerLow profile designStress relieved and enhanced with blastingDefault manual parts media separationWear resistant PU lining from Dow Chemicals
Optional Settings
Sound CoverCompound Dosing PumpPneumatic flap controlVariable Frequency DrivesControl box standing on the floor or hang on the wall
Specifications Bowl Tunnel Width C Diameter
264 mm
Specifications Machine Height H1
920 mm
Specifications Maximum Overall Dimension A
1286 mm
Specifications Media Unload Height H3
260 mm
Specifications Motor Installation Tube Diameter B
630 mm
Specifications Motor Power
3.7 kW | 5.0 kW
Specifications Total Volume
260 L
Specifications Type
Tumbler
Specifications Unload Height H2
760 mm
Specifications Unload Width
287 mm
Specifications Weight
600 kg
