Inovatec VBS(A) Series 580L Industrial Vibratory Tumbler
Inovatec VBS(A) Series 580L Industrial Vibratory Tumbler
SKU:MAS-5c341a
Maximize efficiency with Inovatec's 580L Industrial Vibratory Tumbler - perfect for de-burring, polishing, and cleaning various materials.
Regular price
$10,599.99
Regular price
Sale price
$10,599.99
Unit price
per
Initiate Order
Inovatec VBS(A) Series 580L Industrial Vibratory Tumbler
$10,599.99
Quantity: 1
Claim Your Seller Account
Inovatec VBS(A) Series 580L Industrial Vibratory Tumbler
$10,599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

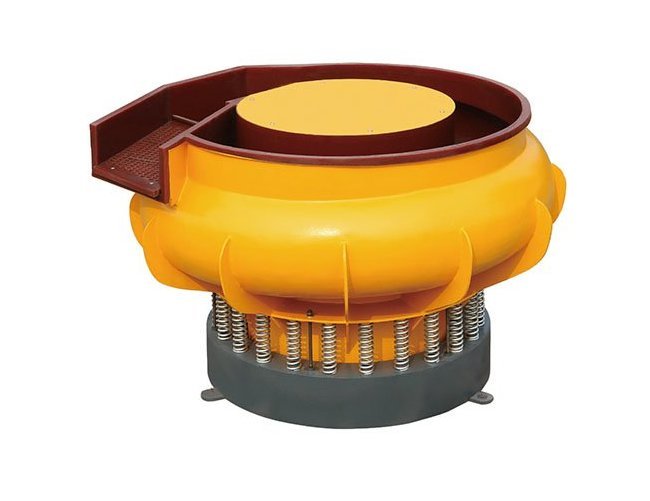

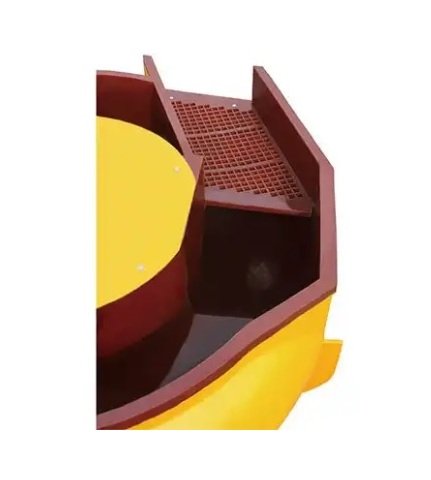

The Inovatec VBS(A) Series 580L Industrial Vibratory Tumbler is engineered for superior tumbling efficiency with its curved bowl design. This feature exerts optimal pressure on workpieces, promoting quick and effective tumbling while preventing sticking. The integrated extended separation sieve ensures efficient media and workpiece separation. With optional settings for customized operations, including sound cover and compound dosing pump, this tumbler offers versatility for de-burring, polishing, and cleaning various materials like aluminum, brass, and stainless steel. Backed by a heavy-duty motor and wear-resistant PU lining, this tumbler guarantees lasting performance for industrial applications.
Product Specifications
Additional Information

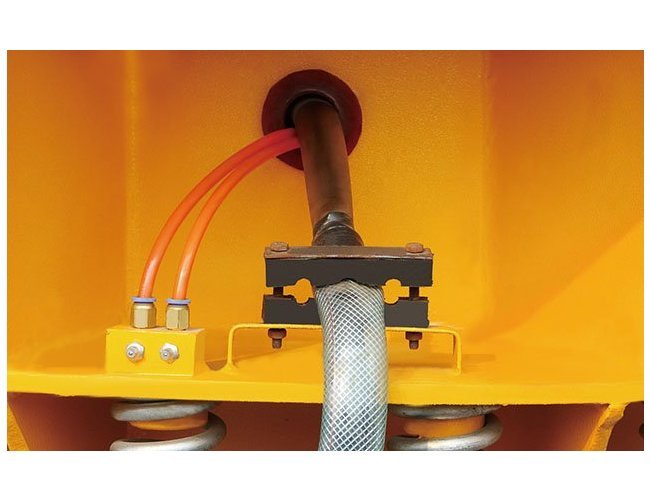

Hot-poured PU and a heavy-duty vibration motor are the primary components in our high-end industrial vibratory tumblers. We make our polyurethane using raw materials sourced from Dow Chemicals, USA.We use an automatic casting machine to solidify the PU, then cure it at a controlled temperature for 24 hours. We use heavy-duty motor from Shanghai Vibration Co. With proper maintenance, it can last more than five years.
Features
You can use Inovatec industrial vibratory tumbler VBS(A) series for de-burring, polishing, cleaning, and edge radiusing of aluminum, brass, copper, stainless steel, and iron workpieces. This processing machine provides uniform surface finishing for all types of workpieces.
Features And Applications
Digital process timerLow profile designStress relieved and enhanced with blastingDefault manual parts media separationWear resistant PU lining from Dow Chemicals
Optional Settings
Sound CoverCompound Dosing PumpPneumatic flap controlVariable Frequency DrivesControl box standing on the floor or hang on the wall
Specifications Bowl Tunnel Width C Diameter
390 mm
Specifications Machine Height H1
1200 mm
Specifications Maximum Overall Dimension A
1800 mm
Specifications Media Unload Height H3
410 mm
Specifications Motor Installation Tube Diameter B
900 mm
Specifications Motor Power
5.5 kW | 7.5 kW
Specifications Total Volume
580 L
Specifications Type
Tumbler
Specifications Unload Height H2
960 mm
Specifications Unload Width
430 mm
Specifications Weight
1500 kg
