Inovatec VBS(B) 270L Vibratory Deburring Machine
Inovatec VBS(B) 270L Vibratory Deburring Machine
SKU:MAS-181853
Achieve precision deburring with Inovatec's VBS(B) 270L Vibratory Deburring Machine. Enhance efficiency and quality!
Regular price
$7,899.99
Regular price
Sale price
$7,899.99
Unit price
per
Initiate Order
Inovatec VBS(B) 270L Vibratory Deburring Machine
$7,899.99
Quantity: 1
Claim Your Seller Account
Inovatec VBS(B) 270L Vibratory Deburring Machine
$7,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

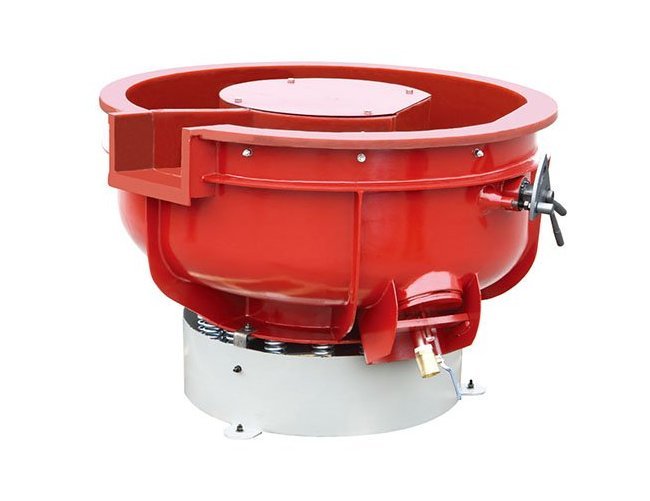

The Inovatec VBS(B) 270L Vibratory Deburring Machine is a high-performance mass finishing solution designed for deburring and edge radiusing of various workpieces including machined parts, injection molding parts, stamping parts, and die casting parts. Featuring a hot-poured PU construction sourced from Dow Chemicals, USA, and a heavy-duty vibration motor, this machine offers durability and efficiency. With advanced features like a digital process timer, stress-relieved design, and an extended separation deck, it ensures optimal finishing results. Ideal for institutional and government buyers seeking cost-effective and labor-saving vibratory deburring solutions.
Product Specifications
Additional Information

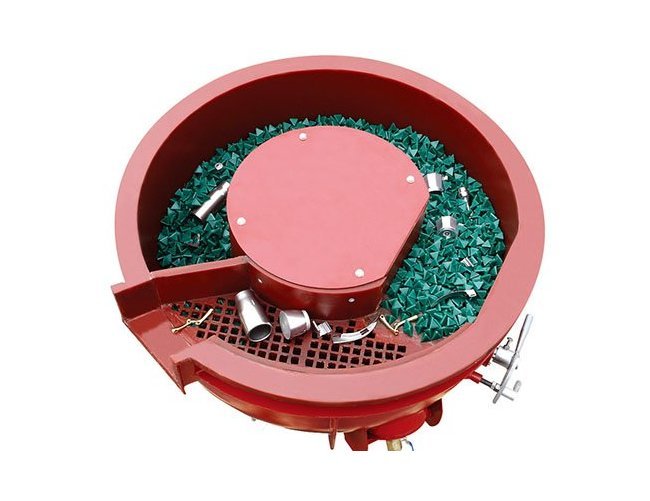

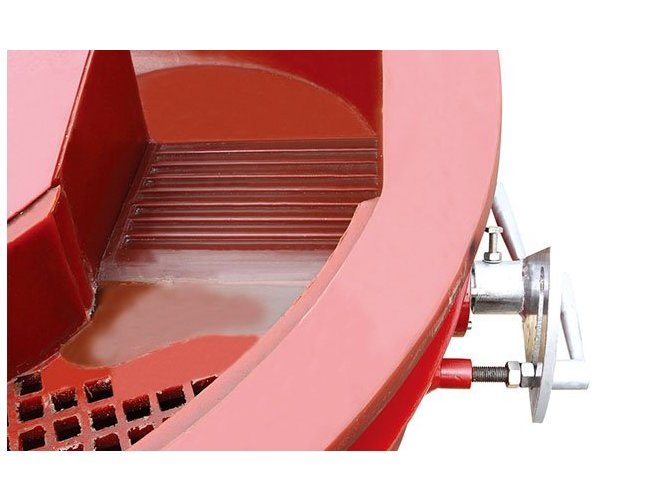

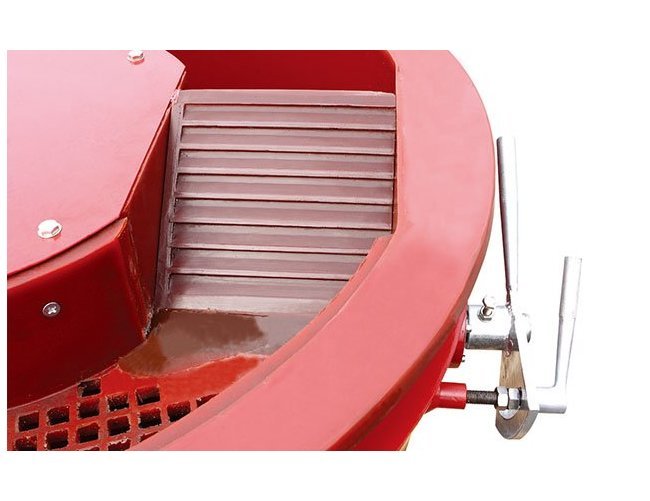

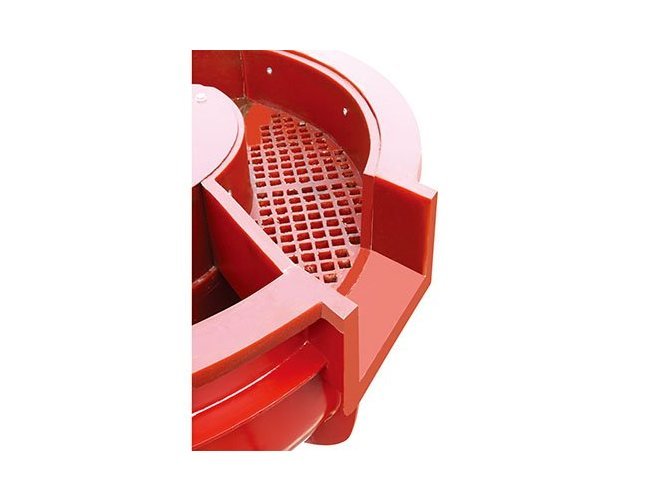

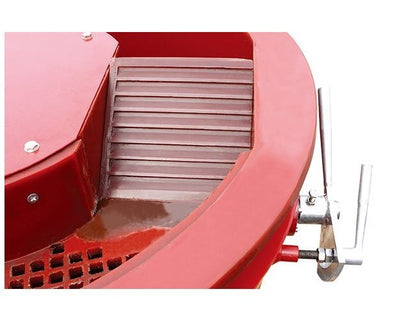

Inovatec offers continuous feed and batch feed variants of vibratory deburring machines. The unload flap and separation screen allows quick separation of workpieces from the tumbling media. Our VBS(B) series machine has an extended separation deck with multiple separation holes.
Features
Hot-poured PU and a heavy-duty vibration motor are the primary components in our high-performance vibratory deburring machines. We make our polyurethane using raw materials sourced from Dow Chemicals, USA.We use an automatic casting machine to solidify the PU, then cure it at a controlled temperature for 24 hours. We use heavy-duty motor from Shanghai Vibration Co. With proper maintenance, it can last more than five years.You can use our vibratory de-burring machines VBS(B) to do the following:Remove sharp edgesEdge breakingRemove visible burrsRemove projections at a specific magnificationEdge rounding
Features And Applications
Digital process timerLow profile designWide opening for big size partsStress relieved and enhanced with blastingDefault manual parts media separationExtended separation deckWear resistant PU lining from Dow Chemicals
Optional Settings

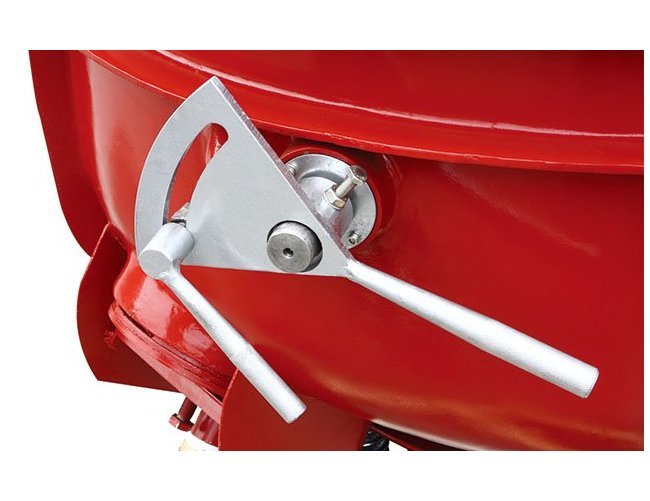

Optional ItemsSound CoverCompound Dosing PumpPneumatic flap controlVariable Frequency DrivesControl box standing on the floor or hang on the wall

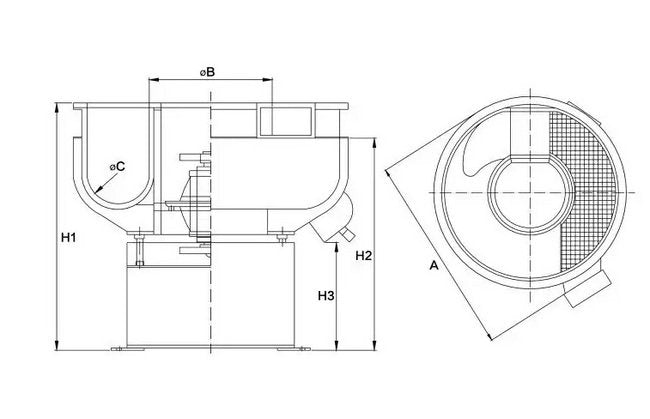

Specifications Bowl Tunnel Width C Diameter
275 mm
Specifications Machine Height H1
960 mm
Specifications Maximum Overall Dimension A
1370 mm
Specifications Media Unload Height H3
290 mm
Specifications Motor Installation Tube Diameter B
630 mm
Specifications Motor Power
3.7 kW | 5.0 kW
Specifications Total Volume
270 L
Specifications Unload Height H2
760 mm
Specifications Unload Width
320 mm
Specifications Weight
650 kg
