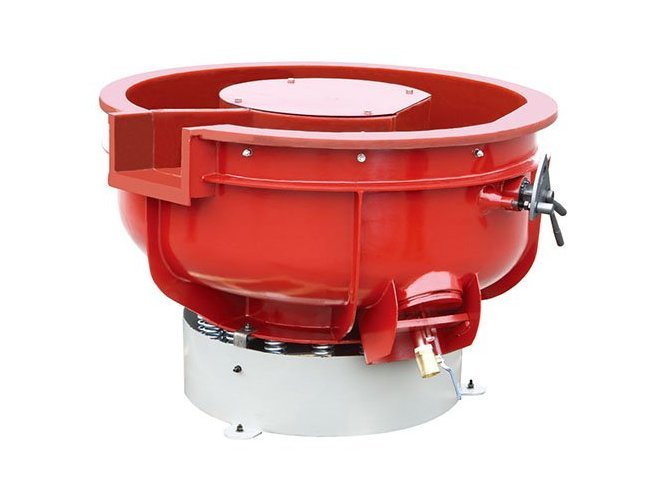

The Inovatec VBS(B) 400L Vibratory Deburring Machine is a high-performance solution for deburring and edge radiusing various materials, including aluminum, brass, copper, stainless steel, and iron workpieces. Utilizing a controlled gyratory vibration, this machine effectively polishes machined parts, injection molding parts, stamping parts, and die casting parts. With features like a hot-poured PU lining made from Dow Chemicals, heavy-duty vibration motor, and extended separation deck, this machine ensures optimal performance and longevity. Ideal for removing sharp edges, burrs, and achieving precise edge rounding, it offers a cost-effective finishing process that minimizes labor requirements.
Product Specifications
Additional Information

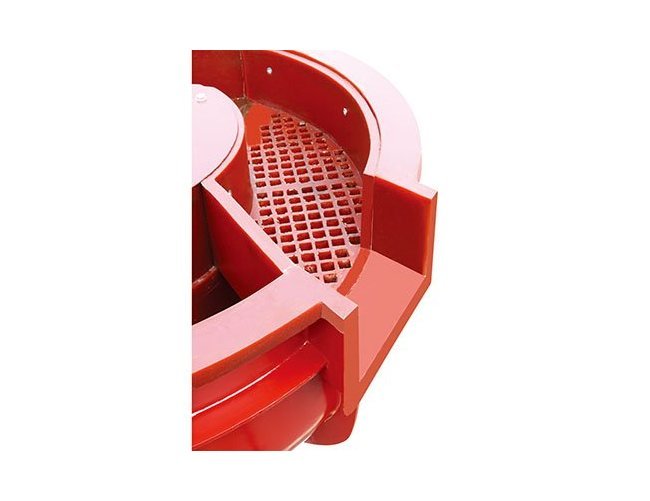

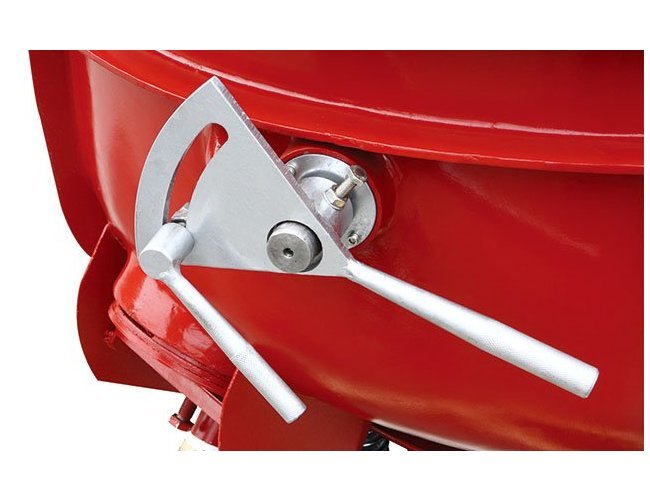

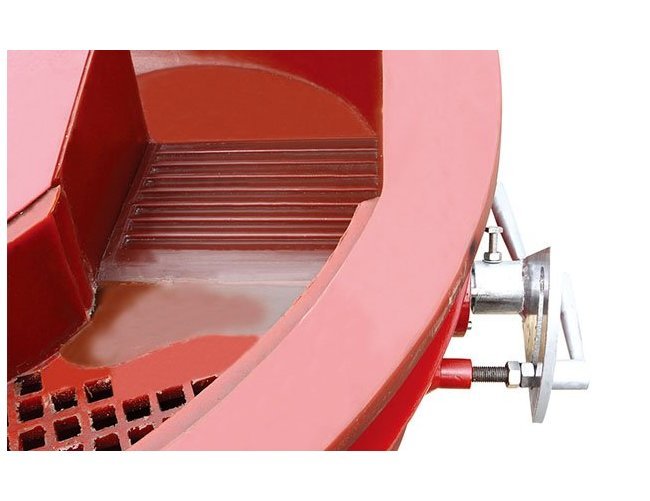

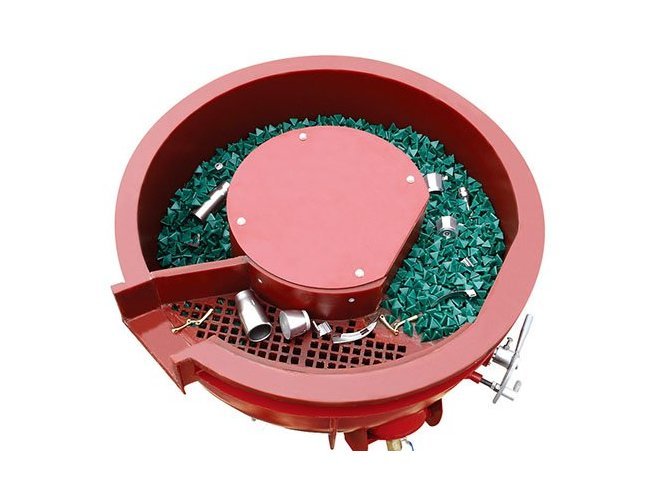

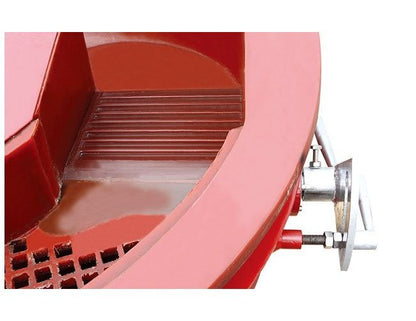

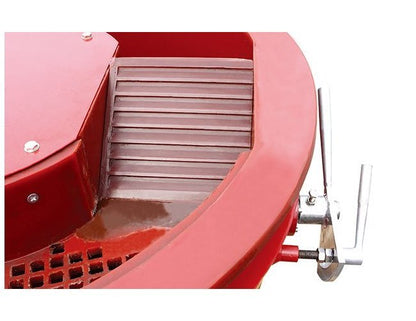

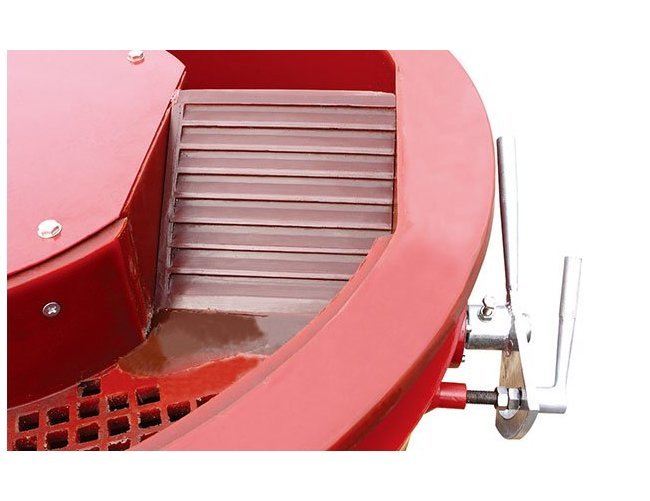

Inovatec offers continuous feed and batch feed variants of vibratory deburring machines. The unload flap and separation screen allows quick separation of workpieces from the tumbling media. Our VBS(B) series machine has an extended separation deck with multiple separation holes.
Features
Hot-poured PU and a heavy-duty vibration motor are the primary components in our high-performance vibratory deburring machines. We make our polyurethane using raw materials sourced from Dow Chemicals, USA.We use an automatic casting machine to solidify the PU, then cure it at a controlled temperature for 24 hours. We use heavy-duty motor from Shanghai Vibration Co. With proper maintenance, it can last more than five years.You can use our vibratory de-burring machines VBS(B) to do the following:Remove sharp edgesEdge breakingRemove visible burrsRemove projections at a specific magnificationEdge rounding
Features And Applications
Digital process timerLow profile designWide opening for big size partsStress relieved and enhanced with blastingDefault manual parts media separationExtended separation deckWear resistant PU lining from Dow Chemicals
Optional Settings
Optional ItemsSound CoverCompound Dosing PumpPneumatic flap controlVariable Frequency DrivesControl box standing on the floor or hang on the wall

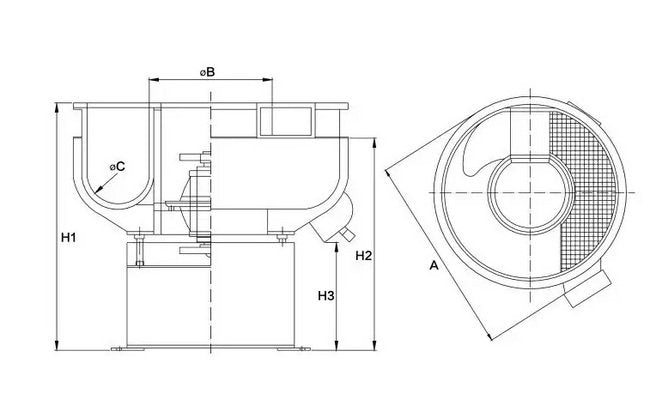

Specifications Bowl Tunnel Width C Diameter
330 mm
Specifications Machine Height H1
1270 mm
Specifications Maximum Overall Dimension A
1470 mm
Specifications Media Unload Height H3
570 mm
Specifications Motor Installation Tube Diameter B
630 mm
Specifications Motor Power
5.0 kW | 6.0 kW
Specifications Total Volume
400 L
Specifications Unload Height H2
1090 mm
Specifications Unload Width
380 mm
Specifications Weight
780 kg
