Inovatec VBS(B) 600L Vibratory Deburring Machine
Inovatec VBS(B) 600L Vibratory Deburring Machine
SKU:MAS-85b4b7
Achieve precise deburring and edge radiusing effortlessly with the Inovatec VBS(B) 600L Vibratory Deburring Machine.
Regular price
$13,599.99
Regular price
Sale price
$13,599.99
Unit price
per
Initiate Order
Inovatec VBS(B) 600L Vibratory Deburring Machine
$13,599.99
Quantity: 1
Claim Your Seller Account
Inovatec VBS(B) 600L Vibratory Deburring Machine
$13,599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

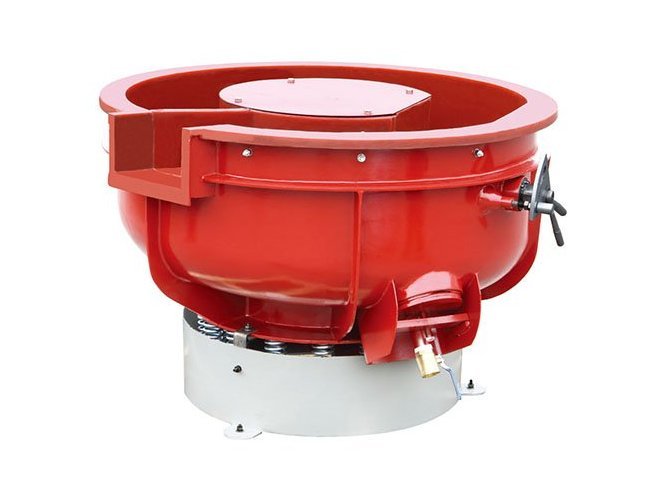

The Inovatec VBS(B) 600L Vibratory Deburring Machine is a high-performance solution for deburring and edge radiusing various workpieces including aluminum, brass, copper, stainless steel, and iron components. Powered by a heavy-duty 5.5 kW | 7.5 kW motor, this machine features a hot-poured PU construction sourced from Dow Chemicals for durability. With a wide opening for big parts, stress-relieved design, and default manual parts media separation, it offers exceptional finishing results. Ideal for mass finishing applications, the machine is cost-effective, efficient, and built to last over five years with proper maintenance.
Product Specifications
Additional Information

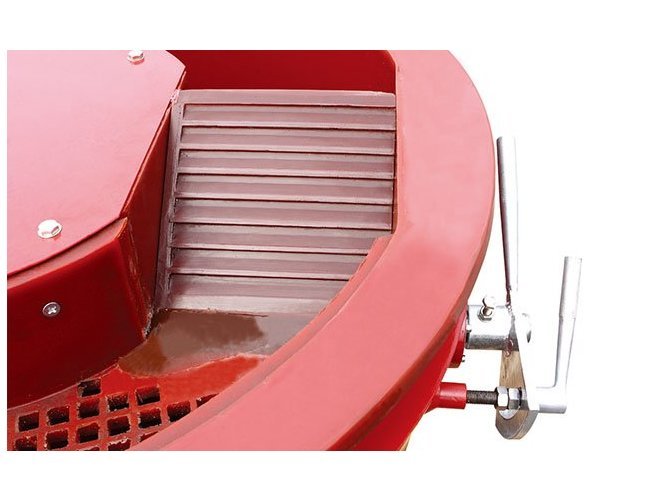

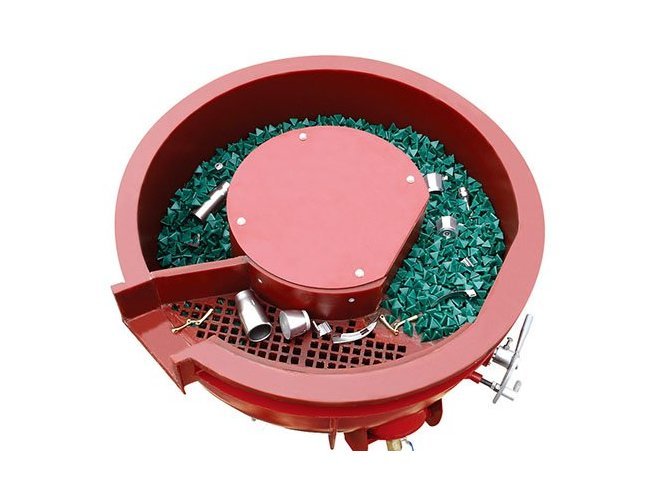

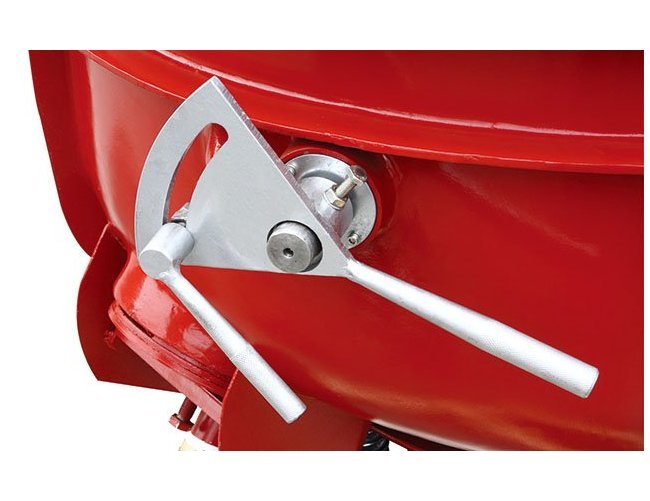

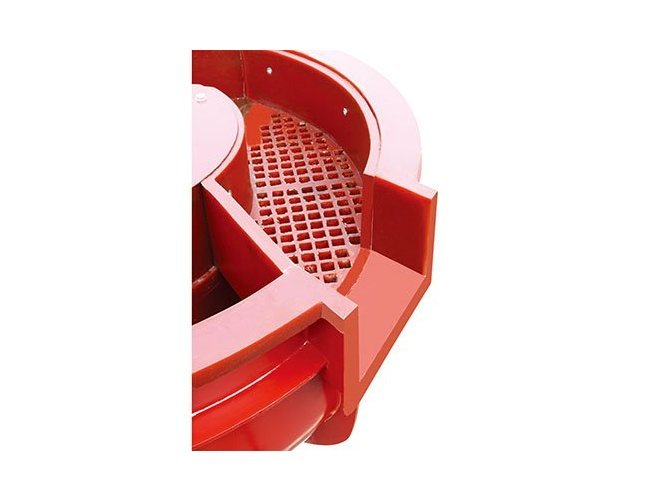

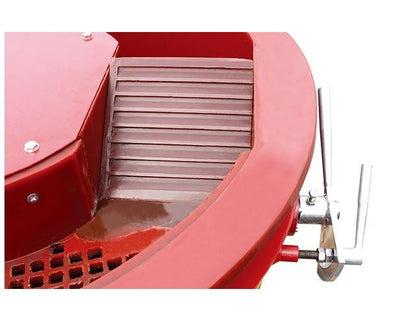

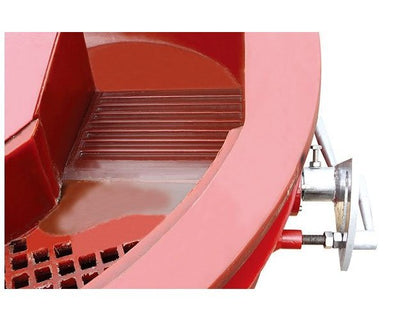

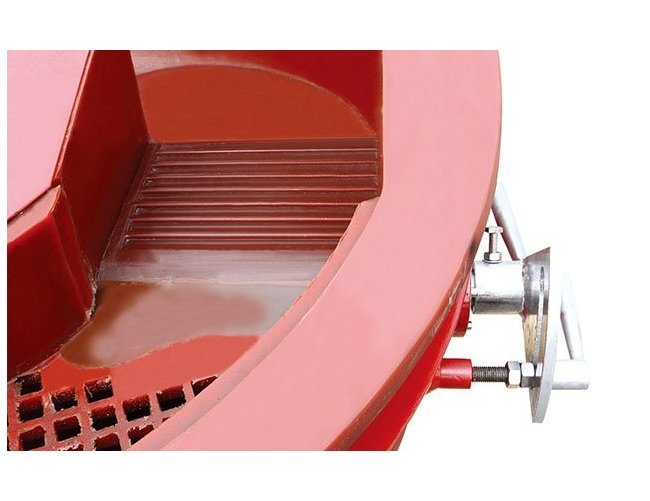

Inovatec offers continuous feed and batch feed variants of vibratory deburring machines. The unload flap and separation screen allows quick separation of workpieces from the tumbling media. Our VBS(B) series machine has an extended separation deck with multiple separation holes.
Features
Hot-poured PU and a heavy-duty vibration motor are the primary components in our high-performance vibratory deburring machines. We make our polyurethane using raw materials sourced from Dow Chemicals, USA.We use an automatic casting machine to solidify the PU, then cure it at a controlled temperature for 24 hours. We use heavy-duty motor from Shanghai Vibration Co. With proper maintenance, it can last more than five years.You can use our vibratory de-burring machines VBS(B) to do the following:Remove sharp edgesEdge breakingRemove visible burrsRemove projections at a specific magnificationEdge rounding
Features And Applications
Digital process timerLow profile designWide opening for big size partsStress relieved and enhanced with blastingDefault manual parts media separationExtended separation deckWear resistant PU lining from Dow Chemicals
Optional Settings
Optional ItemsSound CoverCompound Dosing PumpPneumatic flap controlVariable Frequency DrivesControl box standing on the floor or hang on the wall

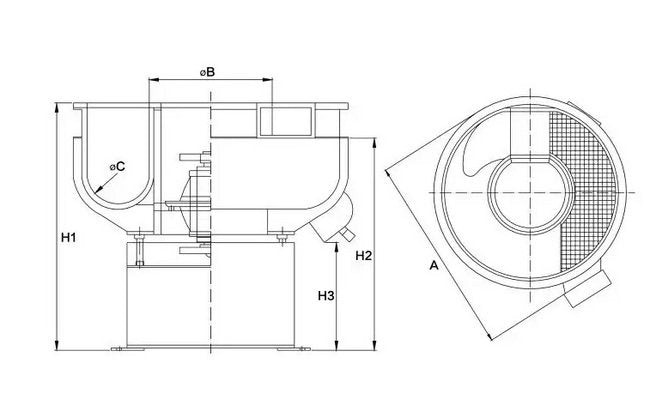

Specifications Bowl Tunnel Width C Diameter
390 mm
Specifications Machine Height H1
1140 mm
Specifications Maximum Overall Dimension A
1860 mm
Specifications Media Unload Height H3
400 mm
Specifications Motor Installation Tube Diameter B
900 mm
Specifications Motor Power
5.5 kW | 7.5 kW
Specifications Total Volume
600 L
Specifications Unload Height H2
925 mm
Specifications Unload Width
470 mm
Specifications Weight
1180 kg
