Inovatec VBS(B) Series 150L Vibratory Deburring Machine
Inovatec VBS(B) Series 150L Vibratory Deburring Machine
SKU:MAS-7aeb95
Achieve precision deburring with Inovatec's 150L Vibratory Deburring Machine for a polished finish on metal workpieces.
Regular price
$8,999.99
Regular price
Sale price
$8,999.99
Unit price
per
Initiate Order
Inovatec VBS(B) Series 150L Vibratory Deburring Machine
$8,999.99
Quantity: 1
Claim Your Seller Account
Inovatec VBS(B) Series 150L Vibratory Deburring Machine
$8,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

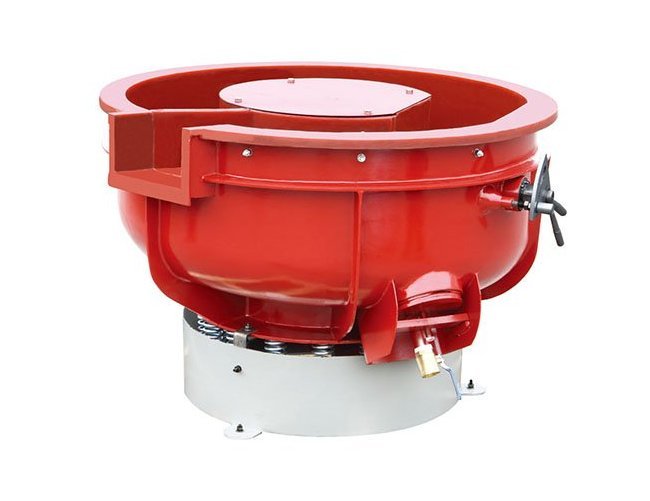

The Inovatec VBS(B) Series 150L Vibratory Deburring Machine offers precision deburring and edge radiusing for a variety of materials, including aluminum, brass, copper, stainless steel, and iron workpieces. With a total volume of 150 liters, this machine utilizes controlled gyratory vibration to efficiently polish machined parts, injection molding parts, stamping parts, and die casting parts. Its high-performance features include hot-poured PU components, heavy-duty vibration motor, and wear-resistant PU lining from Dow Chemicals, ensuring durability and consistent finishing results. Ideal for removing sharp edges, burrs, and projections, this vibratory deburring machine combines efficiency with quality results, making it a cost-effective choice for industry applications.
Product Specifications
Additional Information

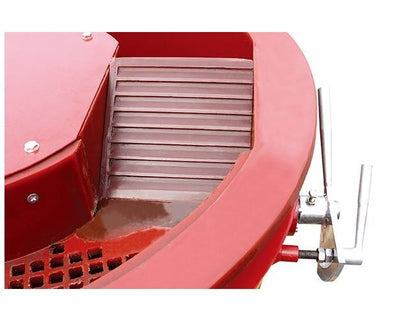

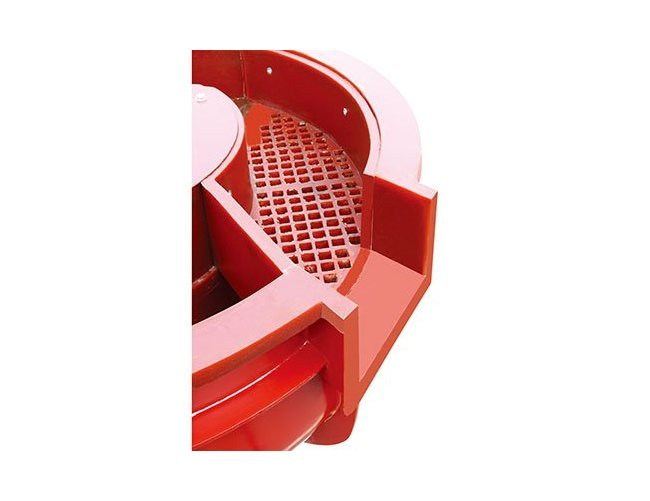

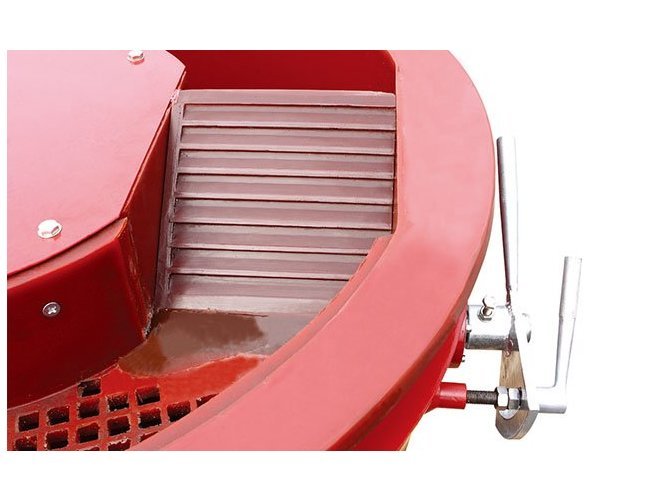

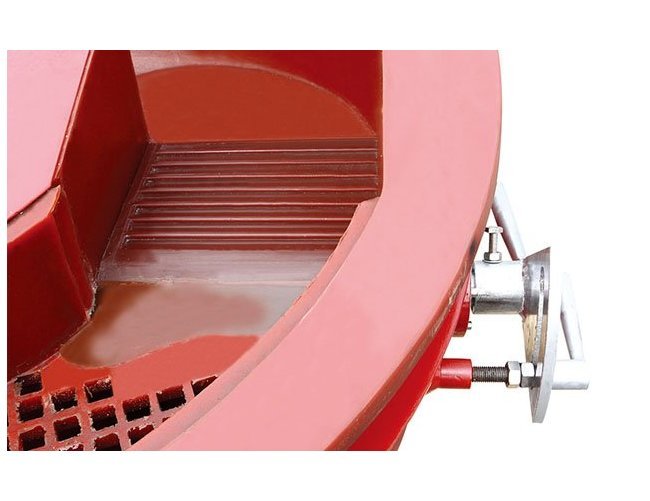

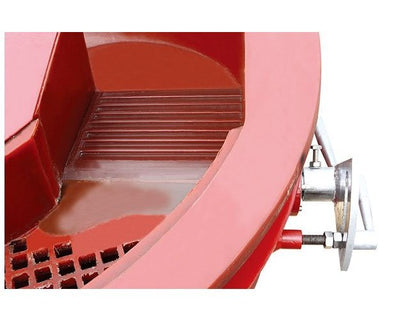

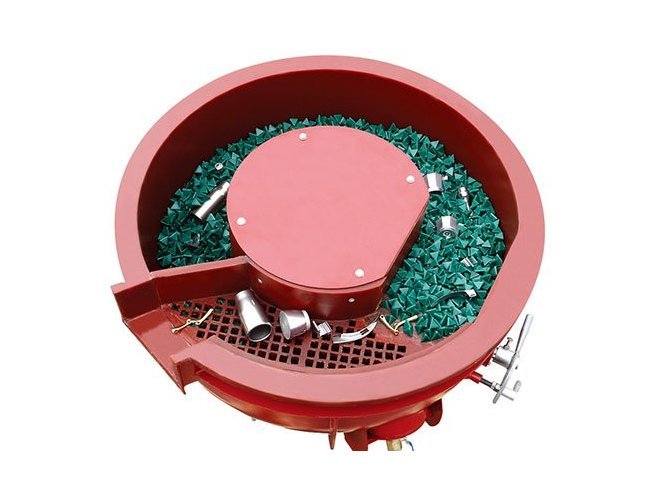

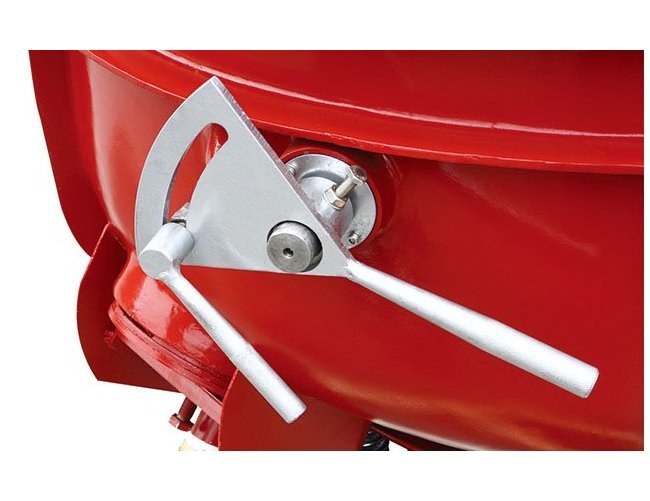

Inovatec offers continuous feed and batch feed variants of vibratory deburring machines. The unload flap and separation screen allows quick separation of workpieces from the tumbling media. Our VBS(B) series machine has an extended separation deck with multiple separation holes.
Features
Hot-poured PU and a heavy-duty vibration motor are the primary components in our high-performance vibratory deburring machines. We make our polyurethane using raw materials sourced from Dow Chemicals, USA.We use an automatic casting machine to solidify the PU, then cure it at a controlled temperature for 24 hours. We use heavy-duty motor from Shanghai Vibration Co. With proper maintenance, it can last more than five years.You can use our vibratory de-burring machines VBS(B) to do the following:Remove sharp edgesEdge breakingRemove visible burrsRemove projections at a specific magnificationEdge rounding
Features And Applications
Digital process timerLow profile designWide opening for big size partsStress relieved and enhanced with blastingDefault manual parts media separationExtended separation deckWear resistant PU lining from Dow Chemicals
Optional Settings
Optional ItemsSound CoverCompound Dosing PumpPneumatic flap controlVariable Frequency DrivesControl box standing on the floor or hang on the wall

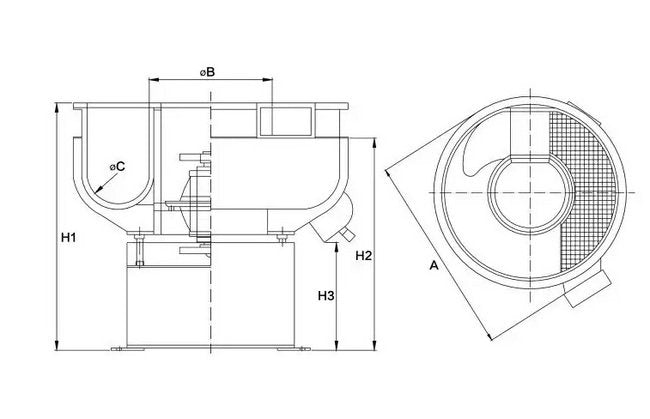

Specifications Bowl Tunnel Width C Diameter
260 mm
Specifications Machine Height H1
860 mm
Specifications Maximum Overall Dimension A
1170 mm
Specifications Media Unload Height H3
440 mm
Specifications Motor Installation Tube Diameter B
460 mm
Specifications Motor Power
2.2 kW
Specifications Total Volume
150 L
Specifications Unload Height H2
710 mm
Specifications Unload Width
210 mm
Specifications Weight
320 kg
