Inovatec WGP 100L Economic Barrel Rotary Finishing Machine
Inovatec WGP 100L Economic Barrel Rotary Finishing Machine
SKU:MAS-b3c927
Powerful 100L Economic Barrel Finishing Machine for precise metal part polishing and deburring.
Regular price
$2,499.99
Regular price
Sale price
$2,499.99
Unit price
per
Initiate Order
Inovatec WGP 100L Economic Barrel Rotary Finishing Machine
$2,499.99
Quantity: 1
Claim Your Seller Account
Inovatec WGP 100L Economic Barrel Rotary Finishing Machine
$2,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Inovatec WGP 100L Economic Barrel Rotary Finishing Machine is a premium solution for polishing, deburring, and finishing metal parts with efficiency and precision. With a robust 100-liter capacity and a powerful 0.75 kW motor, this machine is designed to operate at a rotary speed of 48 rpm, delivering consistent results. It offers versatility with the option of PU or rubber inner linings for different processing needs, ensuring durability and optimal performance. Ideal for mass finishing applications, this machine enables rust removal, grinding, polishing, and more, making it a cost-effective choice for industrial requirements.
Product Specifications
Additional Information

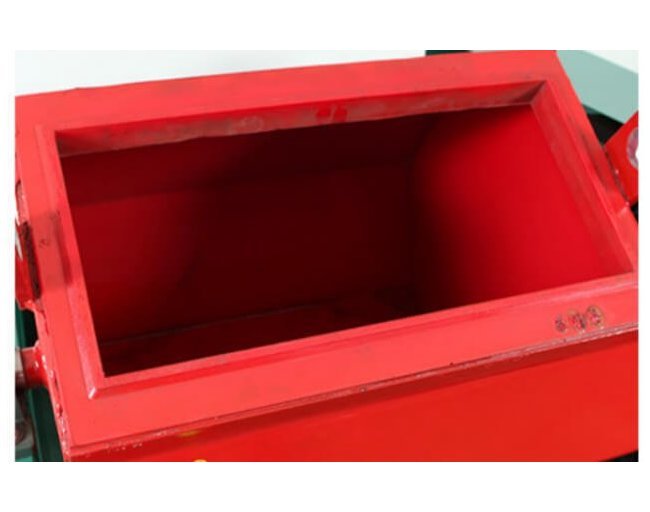

Primary Functions of the Economic Rotary Finishing Machine:Finishes your parts horizontally in a hexagonal or octagonal-shaped barrelYour barrel can have two types of protective inner linings: either PU or rubber liningPU is an incredibly robust polymer - it is resistant to harsh chemicals and aggressive abrasives.Rubber lining is ideal for processes that will generate a lot of heat.Alternatively, you can also work without an inner lining when using a steel rotary barrel. However, barrels with no linings are ideal for steel parts when finishing using stainless steel media.The rotary barrel is not restricted to finishing when rotating in one direction. It can rotate in both a forward and backward direction.You can also unload your parts and abrasives rapidly and effectively once you get the correct inclining angle.With this machine, you can carry out numerous mass finishing applications. You can get rid of rust, deburr, grind, polish, or even remove oxidation layers on your parts.The economic rotary barrel finishing machine is easy to use. It is also cheaper to run and maintain as compared to other mass finishing machines.This finishing machine is not restricted to one standard size. You can have it in the size that works best for you. The largest size has a finishing capacity of 1000 liters.
Specifications Barrel Opening Size
410 x 270 mm
Specifications Capacity
100 L
Specifications Motor Power
0.75 kW
Specifications Rotary Speed
48 rpm
Specifications Weight
110 kg
Surface Dimensions Surface Height
1020 mm
Surface Dimensions Surface Length
800 mm
Surface Dimensions Surface Width
750 mm
