Inovatec WGP Series 150L Economic Barrel Rotary Finishing Machine
Inovatec WGP Series 150L Economic Barrel Rotary Finishing Machine
SKU:MAS-57e52b
Achieve precision metal part finishing with the Inovatec WGP Series 150L Economic Rotary Barrel Machine. Versatile and efficient for optimal results.
Regular price
$6,999.99
Regular price
Sale price
$6,999.99
Unit price
per
Initiate Order
Inovatec WGP Series 150L Economic Barrel Rotary Finishing Machine
$6,999.99
Quantity: 1
Claim Your Seller Account
Inovatec WGP Series 150L Economic Barrel Rotary Finishing Machine
$6,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

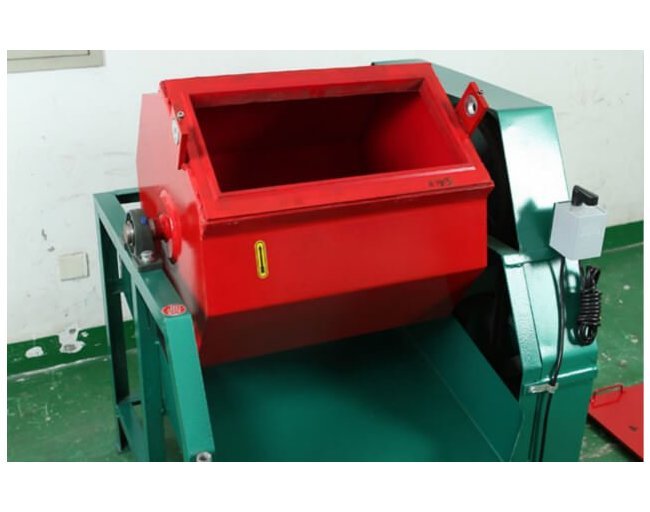

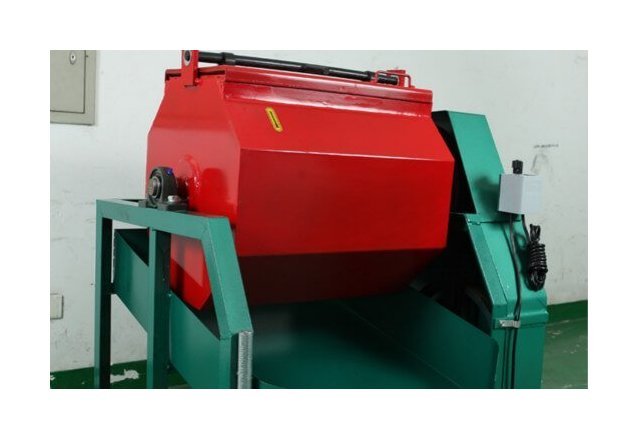

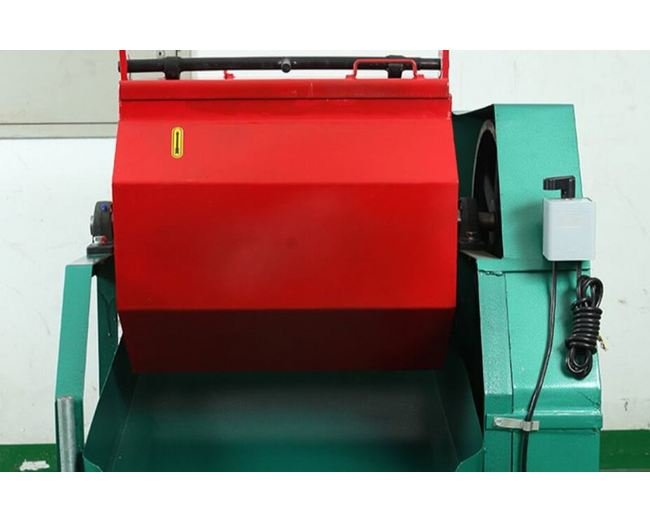

The Inovatec WGP Series 150L Economic Barrel Rotary Finishing Machine is a versatile solution for precision polishing and deburring of metal parts. With a capacity of 150 liters, this machine is designed to achieve high-quality finishes efficiently. It features a robust 1.1 kW motor power and a rotary speed of 40 rpm, providing consistent results. The barrel opening size of 510 x 200 mm accommodates various part sizes. Choose between PU or rubber lining for protection, ensuring durability even in rigorous processes. Operate in forward and backward directions for optimal finishing. Ideal for rust removal, deburring, grinding, and polishing, this machine offers exceptional performance and cost-effectiveness, customizable to your specific needs.
Product Specifications
Additional Information
Primary Functions of the Economic Rotary Finishing Machine:Finishes your parts horizontally in a hexagonal or octagonal-shaped barrelYour barrel can have two types of protective inner linings: either PU or rubber liningPU is an incredibly robust polymer – it is resistant to harsh chemicals and aggressive abrasives.Rubber lining is ideal for processes that will generate a lot of heat.Alternatively, you can also work without an inner lining when using a steel rotary barrel. However, barrels with no linings are ideal for steel parts when finishing using stainless steel media.The rotary barrel is not restricted to finishing when rotating in one direction. It can rotate in both a forward and backward direction.You can also unload your parts and abrasives rapidly and effectively once you get the correct inclining angle.With this machine, you can carry out numerous mass finishing applications. You can get rid of rust, deburr, grind, polish, or even remove oxidation layers on your parts.The economic rotary barrel finishing machine is easy to use. It is also cheaper to run and maintain as compared to other mass finishing machines.This finishing machine is not restricted to one standard size. You can have it in the size that works best for you. The largest size has a finishing capacity of 1000 liters.
Specifications Barrel Opening Size
510 x 200 mm
Specifications Capacity
150 L
Specifications Motor Power
1.1 kW
Specifications Rotary Speed
40 rpm
Specifications Weight
200 kg
Surface Dimensions Surface Height
1100 mm
Surface Dimensions Surface Length
950 mm
Surface Dimensions Surface Width
900 mm
