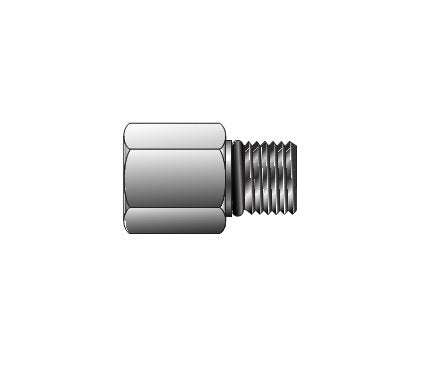

Instrumentation Pipe Fitting: Male SAE to Female NPT Adapter
Instrumentation Pipe Fitting: Male SAE to Female NPT Adapter
SKU:FIT-5203ac
Precision Male SAE to Female NPT Adapter for leak-free connections in instrumentation applications.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Instrumentation Pipe Fitting: Male SAE to Female NPT Adapter
$24.99
Quantity: 1
Claim Your Seller Account
Instrumentation Pipe Fitting: Male SAE to Female NPT Adapter
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your industrial connections with the Parker Instrumentation Pipe Fitting, designed for precision and reliability. This leak-free adapter is meticulously manufactured from high-quality steel and brass, ensuring durability and efficiency. With precision machining from forgings and bar stock, this fitting is ideal for process control and instrumentation applications. Compliant with ANSI standards, NPT threads, and ASTM specifications, this fitting guarantees secure and lasting connections for your operational needs.

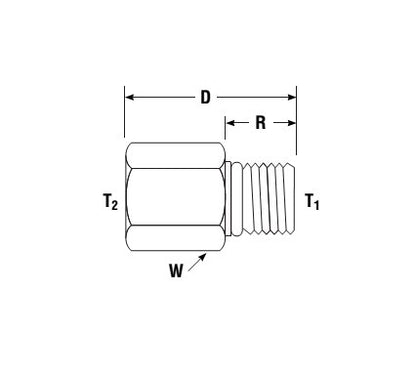

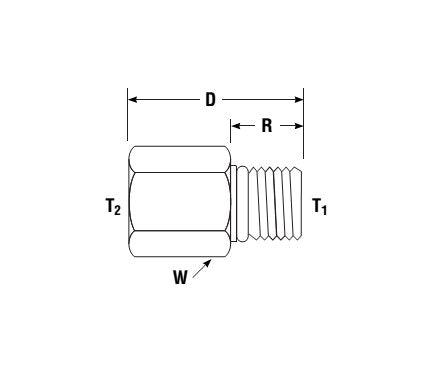

Product Specifications
Dimensions Connection Type
FNPT x BSPP
Dimensions D
1.26 in
Dimensions E Minimum Opening
.30 in
Dimensions Interchanges With
6SAE-7-6
Dimensions R
.39 in
Dimensions St O Ring Uniform Size
3-906
Dimensions T1 Straight Thread Size
9/16-18
Dimensions T2 Npt Female Pipe Size
3/8
Dimensions W Hex
7/8 in
Specifications Features
Quality engineered for instrumentation applicationsPackaged in sealed, clear plastic shrink wrapped boxes for cleanlinessWorking pressures calculated in accordance with Power Piping Code ANSI B31.1 and Refiner Piping Code ANSI B31.3.All pipe threads are National Pipe Taper (NPT) and exceed the requirements of ANSI B1.20.1.Rolled male threads for extra strengthStraight bodies machined from applicable ASTM bar stock specificationsShapes machined from close grain forgingsSize ranges from 1/16" through 2" NPTMaterials - 316 Stainless Steel, Brass and Steel. (Other materials by special order)All exposed threads protected to prevent damage
Specifications Features And Technical Data
Parker Instrument Pipe Fittings are precision machined from forgings for elbows, tees and crosses and from bar stock for straight connectors. They are designed to be used for process control and instrumentation connections between pipe sizes and tube sizes.
Specifications Material
Parker Pipe Fittings are standard in steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
