Integro Earthed Isolation Transformers L-830/L-831
Integro Earthed Isolation Transformers L-830/L-831
SKU:INT-9164d6
Isolate high voltages for constant current airfield lights efficiently with Integro Earthed Isolation Transformers L-830 (60Hz) or L-831 (50Hz)
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
Integro Earthed Isolation Transformers L-830/L-831
$499.99
Quantity: 1
Claim Your Seller Account
Integro Earthed Isolation Transformers L-830/L-831
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

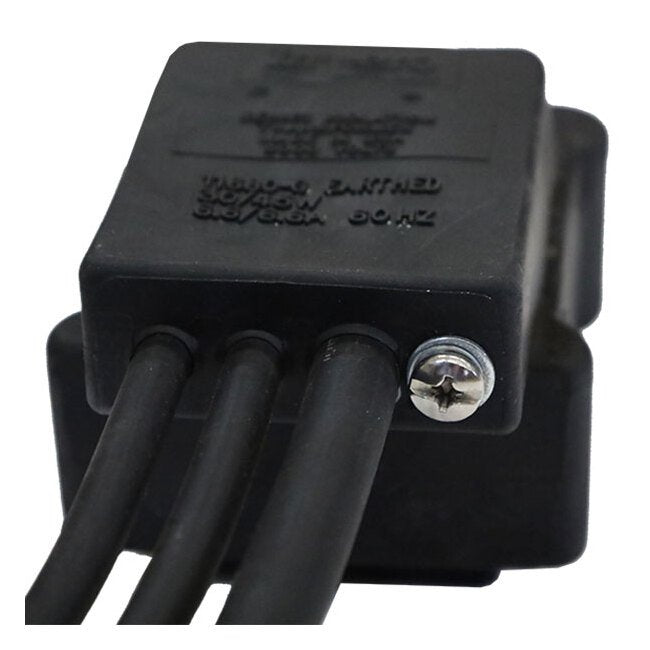

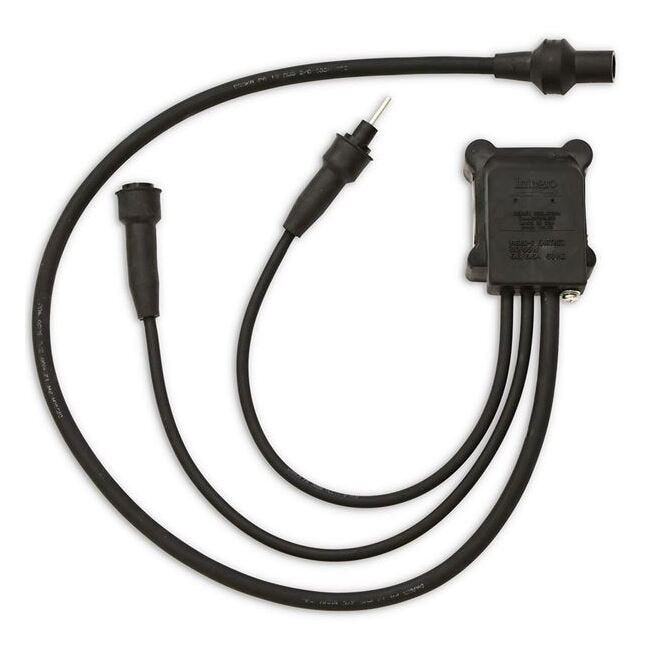

The Integro Earthed Isolation Transformers L-830 (60Hz) or L-831 (50Hz) from OneMonroe's FAA Approved Series are specially designed to isolate high operating voltages for constant current airfield lights in a series circuit. These encapsulated transformers operate efficiently even when submerged in water, meeting FAA guidelines for temperatures ranging from -55°C to +65°C. Tested according to FAA L-830 (60 Hz) and L-831 (50 Hz) specifications, these transformers undergo rigorous quality assessments including visual, ratio, heat, and HIPOT testing. Equipped with an earthed stud for grounding, they come with male and female primary leads rated at 25 Amps and 5,000 Volts, and a female secondary lead rated at 20 Amps and 600 Volts.
Product Specifications
Specifications Buy American
Please visit our Buy American Page to learn more about our products that meet Buy American Preference requirements
Specifications Certifications
11710-G Certification
Specifications Contact Us
Contact our Integro team: integroleads@askmonroe.com or call us at (844) 851-0511
Specifications Design Frequency
50 Hz
Specifications Prisec
6.6/6.6
Specifications Watts
30/45W
Specifications Weight Lbs
4.34
