Integro Earthed Isolation Transformers L-830/L-831
Integro Earthed Isolation Transformers L-830/L-831
SKU:INT-11e2f5
Efficiently isolate high operating voltage for airfield lights. Meets strict FAA standards. Encapsulated design for underwater operation.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Integro Earthed Isolation Transformers L-830/L-831
$349.99
Quantity: 1
Claim Your Seller Account
Integro Earthed Isolation Transformers L-830/L-831
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

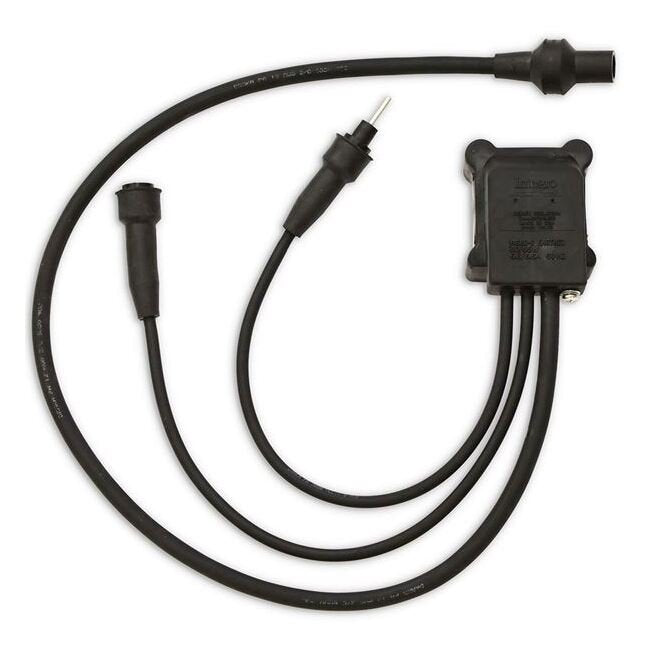

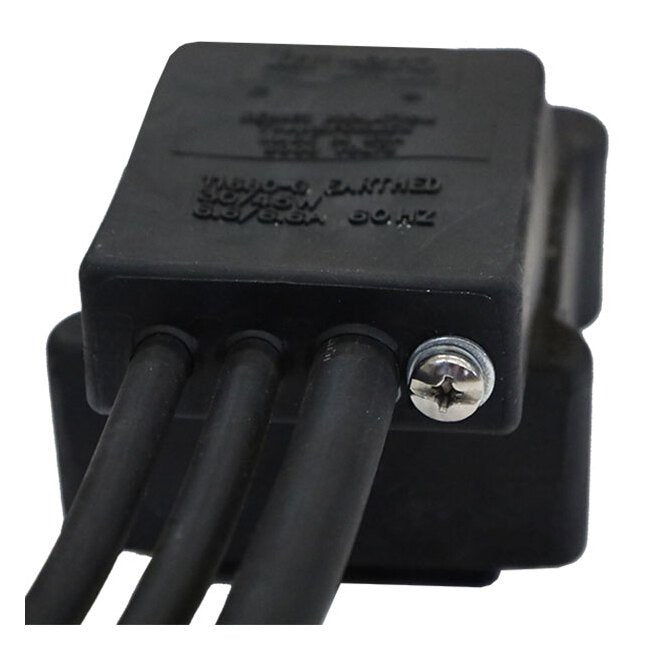

The Integro Earthed Isolation Transformers L-830 (60Hz) or L-831 (50Hz) are essential components for isolating high operating voltage for constant current airfield lights in a series circuit. These transformers are encapsulated and designed to operate efficiently even when submerged in water, meeting the rigorous FAA specifications. With a temperature range of -55°C to +65°C, they can be installed above ground, in metal cans, or direct buried. Tested in accordance with FAA Advisory Circular 150/5345-47, these transformers undergo comprehensive quality testing ensuring reliability and safety. Equipped with an earthed stud for grounding, they comply with FAA standards and come with leads rated at 25 Amps and 5,000 Volts on the primary side and 20 Amps and 600 Volts on the secondary side.
Product Specifications
Specifications Buy American
Please visit our Buy American Page to learn more about our products that meet Buy American Preference requirements
Specifications Certifications
11717-G Certification
Specifications Contact Us
Contact our Integro team: integroleads@askmonroe.com or call us at (844) 851-0511
Specifications Design Frequency
60 Hz
Specifications Prisec
6.6/6.6
Specifications Watts
10/15W
Specifications Weight Lbs
3.62
