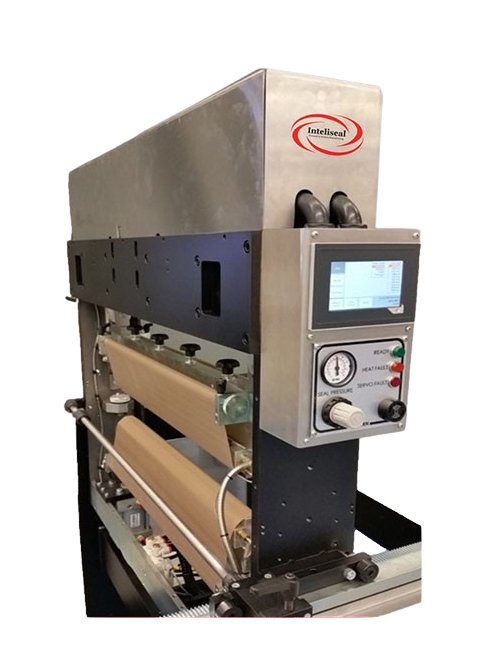

Solving Complex Converting Issues in Today's Demanding MarketsThe Inteliseal system is a servo actuated system with built-in functional settings, which allows the operator to easily dial in the appropriate sealing settings for any particular film.
Product Specifications
Additional Information

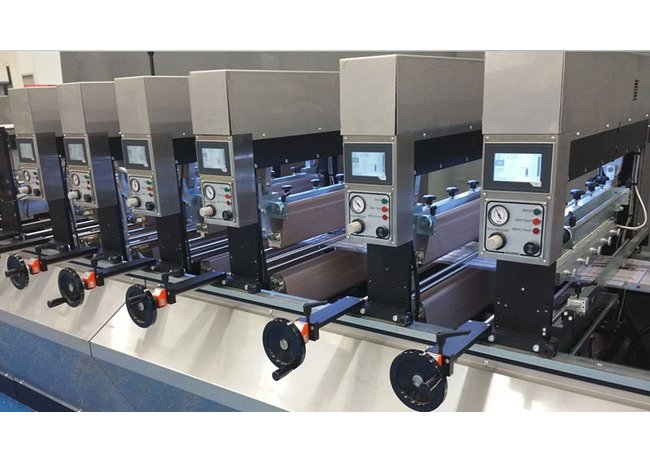

All seal heads are independently controlled from the control panel on each head or at the HMI (Human Machine Interface). This unique capability allows an operator to set each seal head so that cycle distance, seal compression distance and seal force vary based on the demands of the film being converted.Inteliseal enables all of our systems to run films that most pouch or bag making systems have great difficulty running. This allows Inteliseal to provide more flexibility and better seal quality than ever thought possible. Given all this, what does it mean to your converting business:Industry best pouch qualityWidest range application flexibility in the industryHigh productivity (up to 225 cpm)Easy repeatability, with all settings stored for repeat usage.Inteliseal also allows the operator to be able to adjust the sealing force of each individual sealing head. This provides ultimate range of seal force capability, while running the most sensitive of films available in today’s market.Inteliseal comes with temperature set-point alarms and user out of range settings. So if the heat goes out of range then an alarm will illuminate. There are also sealer shut down capabilities, that can be turned on by the user, to ensure the sealer never makes a bad product, due to heater range issues.All of these enhancements allow our systems to run the some of the toughest films on the market including:COEX film structuresPoly/Poly structuresRecyclable filmsIn summary, Inteliseal provides all of our pouch or bag systems more flexibility and enables higher seal quality than any other system on the market today.
Features
Servo actuatedEasy to understand operational menusIndependent dwell time controlsProgrammable cycle distanceProgrammable seal depth controlIntuitive heat controlsJob storage for all machine parameters (when built into a new line)
Seal Compression Distance
Full depth to 0.06 inches (1.52 mm) above full compression
Technical Specs Available Seal Head Widths
14 to 48 in | 355 to 1,219 mm
Technical Specs Brands
Intelliseal
Technical Specs Cross And Inline Seal And Cool Systems
Available in new machine configurations or machine retrofits
Technical Specs Heat Controls
With our PID loop auto tuning feature, sealing temperature will never be out of range by more than a single degree
Technical Specs Seal Force
Maximum force set point to 90% swing of force settings for each seal head independently, with repeatable results.
Variable Cycle Distance
0.25 inches (6.35 mm) to 1.5 inches (38.1mm) allows for zipper and fitment clearances, or high speed short cycling.
