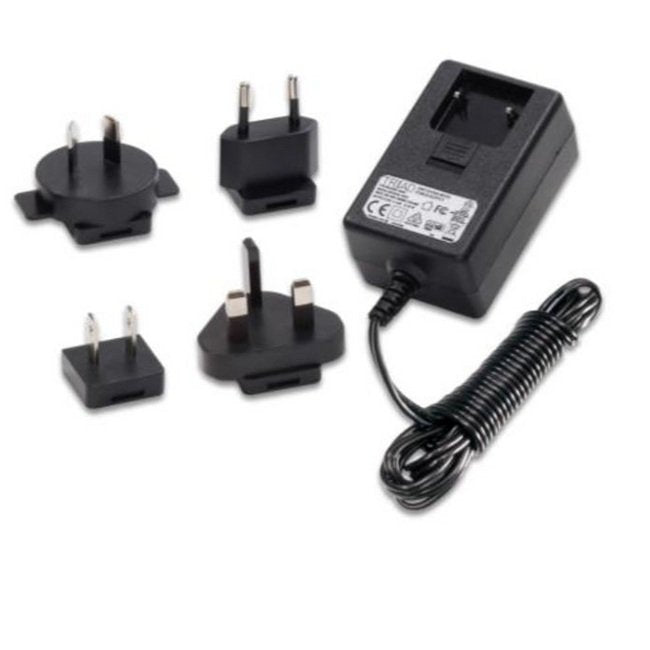

Interchangeable Input Plug Wall Plug-in Power Supply 5.0V DC 24W
Interchangeable Input Plug Wall Plug-in Power Supply 5.0V DC 24W
SKU:WAL-f6688f
Upgrade to a Level VI efficient Interchangeable Input Plug Wall Plug-in Power Supply for reliable 5.0V DC output.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Interchangeable Input Plug Wall Plug-in Power Supply 5.0V DC 24W
$24.99
Quantity: 1
Claim Your Seller Account
Interchangeable Input Plug Wall Plug-in Power Supply 5.0V DC 24W
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your power supply solution with this versatile Interchangeable Input Plug Wall Plug-in Switch Mode Power Supply delivering a reliable 5.0V DC output at 2.0A. With a Level VI efficiency rating, this power supply ensures optimal performance and energy savings. Designed with safety in mind, it meets ETL, UL, BS, AS/NZS, GS, and FCC certifications, offering overvoltage and short circuit protection. Additionally, this power supply complies with EISA 2007/CEC and RoHS standards for environmental responsibility.
Product Specifications

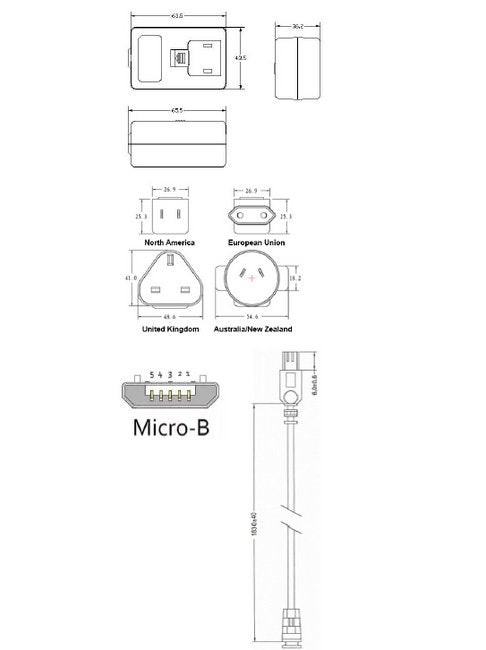

Case Dimensions Depth D
1.38 in | 35.00 mm
Case Dimensions Height H
3.02 in | 76.80 mm
Case Dimensions Width W
1.87 in | 47.50 mm
Eisa 2007cec Compliance Eisa 2007cec Compliance
This power supply meets the minimum efficiency requirements per Department of Energy and California Energy Commission.
Electrical Specifications At 25 Degree Celsius C Temperature Alt
90 to 264 V
Electrical Specifications At 25 Degree Celsius C Temperature Ave
78.7 %
Electrical Specifications At 25 Degree Celsius C Temperature Inp
50 to 60 Hz
Electrical Specifications At 25 Degree Celsius C Temperature Lin
±5 %
Electrical Specifications At 25 Degree Celsius C Temperature Loa
±5 %
Electrical Specifications At 25 Degree Celsius C Temperature Max
150 mV
Electrical Specifications At 25 Degree Celsius C Temperature Not
Typical Meets minimum level VI efficiency
Electrical Specifications At 25 Degree Celsius C Temperature Out
2.0 A
Electrical Specifications At 25 Degree Celsius C Temperature Typ
82.68 %
Environmental Specifications Non Condensing Relative Operating H
5 to 95 %
Environmental Specifications Operating Temperature At Full Load
0 to +45 ºC
Environmental Specifications Storage Temperature
-20 to 60 ºC
Mechanical Parameters Case Type
Thermoplastic Molded Enclosure
Mechanical Parameters Long Nominal Output Cord Length
6 ft | 20 AWG
Reliability Specifications Dielectric Strength
Hi-Pot - 4242 VDC/3 secs
Reliability Specifications Leakage Current At 264 Vac
< 0.25 mA
Reliability Specifications Maximum Dielectric Strength Hi Pot
5 mA
Reliability Specifications Warranty
5 years
Rohs Compliance Rohs Compliance
Meets the requirements of 2011/65/EU, known as the RoHS initiative.
Safety And Emi Safety And Emi
ETL: UL/ANSI 60950 Class II, Double InsulatedBS: 1363-1:1995 + A1:1997 + A2:2003 + A3:2007AS/NZS: AS/NZS 60950.1:2011 + A1, AS/NZS 60065:2012GS (S50311479): EN 60950-1: 2006 + A11+A1+A12+A2EMI standard: FCC part 15 class B, EN 61204-3:2000Over voltage and short circuit protected
Specifications Type
Switchmode
