Intermetallic E-Beam Liner - 40 cm³ RDM-EB6 Series
Intermetallic E-Beam Liner - 40 cm³ RDM-EB6 Series
SKU:RDM-3eb68a
High-quality Intermetallic E-Beam Liner - 40 cm³ RDM-EB6 Series, customizable sizes, bulk discounts available.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Intermetallic E-Beam Liner - 40 cm³ RDM-EB6 Series
$129.99
Quantity: 1
Claim Your Seller Account
Intermetallic E-Beam Liner - 40 cm³ RDM-EB6 Series
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

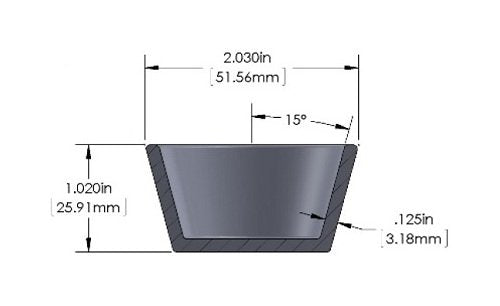

The Intermetallic E-Beam Liner in the 40 cm³ RDM-EB6 Series from R. D. Mathis Company is a high-quality solution designed for precise material containment in e-beam applications. Crafted for durability, this Crucible-type liner features a 15º angle, 0.125 in wall thickness, and dimensions of 1.020 in height and 2.030 in width. With customizable options available, this liner ensures tight process control and uniform material deposition. Bulk discounts offered, making it ideal for institutional needs.
Product Specifications
Specifications Angle
15 º
Specifications Container Liner Type
Crucible
Specifications Height
1.020 in | 25.91 mm
Specifications Material
Intermetallic
Specifications Size
40 cm³
Specifications Wall Thickness
0.125 in | 3.18 mm
Specifications Width
2.030 in | 51.56 mm
