Intermetallic E-Beam Liner - 7 cm³ RDM-EB4 Series
Intermetallic E-Beam Liner - 7 cm³ RDM-EB4 Series
SKU:RDM-991861
Precision-engineered 7 cm³ Intermetallic E-Beam Liner for electron beam evaporation. Custom sizes available. Volume discounts.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Intermetallic E-Beam Liner - 7 cm³ RDM-EB4 Series
$49.99
Quantity: 1
Claim Your Seller Account
Intermetallic E-Beam Liner - 7 cm³ RDM-EB4 Series
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

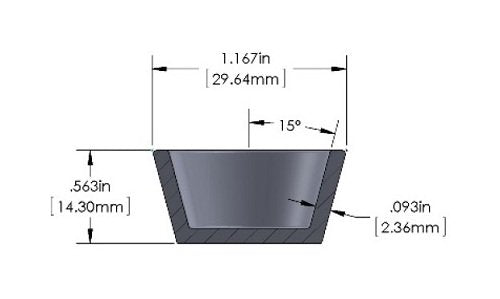

The RDM-EB4 Series 7 Cubic Centimeter (cm³) Size Intermetallic E-Beam Liner by R. D. Mathis Company is a high-quality crucible container liner specifically designed for precision applications. With measurements of 0.563 inches (14.30 mm) in height, 1.167 inches (29.64 mm) in width, and a wall thickness of 0.093 inches (2.36 mm), this liner offers exceptional durability and heat resistance. Crafted at a 15-degree angle for optimal performance, this intermetallic liner is ideal for electron beam evaporation processes in various scientific and industrial settings. Custom sizes available upon request. Volume discounts offered.
Product Specifications
Specifications Angle
15 º
Specifications Container Liner Type
Crucible
Specifications Height
0.563 in | 14.30 mm
Specifications Material
Intermetallic
Specifications Size
7 cm³
Specifications Wall Thickness
0.093 in | 2.36 mm
Specifications Width
1.167 in | 29.64 mm
