Internal Flange CB Drum - 24CB500 Tapped Holes
Internal Flange CB Drum - 24CB500 Tapped Holes
SKU:CLU-5b4693
Premium Internal Flange CB Drum for high-speed industrial applications. Dimensions D31: 1.00 in, H1: 24 in. American National Standard compliant.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
Internal Flange CB Drum - 24CB500 Tapped Holes
$799.99
Quantity: 1
Claim Your Seller Account
Internal Flange CB Drum - 24CB500 Tapped Holes
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Internal Flange CB Drum is a premium grade drum clutch and brake component from the CB Mounting Components line, specifically designed for high speed and cyclic operations. With dimensions D31 of 1.00 in | 25 mm, H1 of 24 in | 610 mm, and H9 of 19.750 in | 501.7 mm, it provides dependable performance in industrial applications. This product features 3/4-10 L bolt holes, D6 dimension of 6.62 in | 168 mm, and an inertia of 80 lb·ft² | 3.36 kg·m². Manufactured by Eaton-Airflex, it conforms to the American National Standard for Unified Screw Threads, ensuring quality and reliability.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Note 0
American National Standard for Unified Screw Threads.

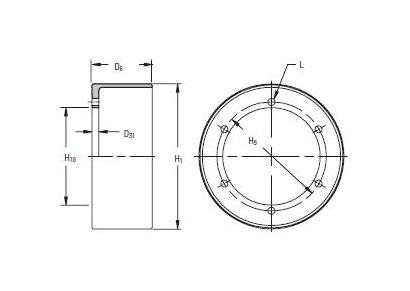

Specifications Dimension D31
1.00 in | 25 mm
Specifications Dimension D6
6.62 in | 168 mm
Specifications Dimension H1
24 in | 610 mm
Specifications Dimension H10
18.000 in | 457.2 mm
Specifications Dimension H9
19.750 in | 501.7 mm
Specifications Inertia
80 lb·ft² | 3.36 kg·m²
Specifications Manufacturer
Eaton-Airflex
Specifications Number Of L Bolt Holes
3/4-10
Specifications Size
24CB500
Specifications Type
Tapped Holes
Specifications Weight
93 lb | 42 kg
