Internal Flange Drum Assembly CB 420
Internal Flange Drum Assembly CB 420
SKU:CLU-518451
High-performance Internal Flange Drum Assembly CB 420 suitable for industrial clutch or brake applications. Meets American National Standard for Unified Screw Threads.
Regular price
$1,099.99
Regular price
Sale price
$1,099.99
Unit price
per
Initiate Order
Internal Flange Drum Assembly CB 420
$1,099.99
Quantity: 1
Claim Your Seller Account
Internal Flange Drum Assembly CB 420
$1,099.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Internal Flange Drum Assembly CB 420 is a robust, high-performance component specifically engineered for dependable clutch or brake service in demanding industrial applications. With a Size of 32CB525 and Type featuring Tapped Holes, this assembly is ideal for high speed, cyclic operations, as well as coupling and power transmission tasks. Manufactured by Eaton-Airflex, it meets the American National Standard for Unified Screw Threads, ensuring reliability and compliance with industry benchmarks. Weighing 160 lb and offering an Inertia of 252 lb·ft², this drum assembly is built for precision and durability in various operational environments.
Product Specifications
Note 0
American National Standard for Unified Screw Threads.

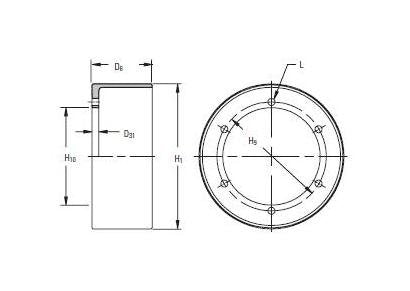

Specifications Dimension D31
1.00 in | 25 mm
Specifications Dimension D6
7.06 in | 179 mm
Specifications Dimension H1
32 in | 813 mm
Specifications Dimension H10
25.000 in | 635 mm
Specifications Dimension H9
27.000 in | 685.8 mm
Specifications Inertia
252 lb·ft² | 10.58 kg·m²
Specifications Manufacturer
Eaton-Airflex
Specifications Number Of L Bolt Holes
3/4-10
Specifications Size
32CB525
Specifications Type
Tapped Holes
Specifications Weight
160 lb | 72 kg
