Internal Mix Deflected Flat Fan Atomizing Spray Nozzle - 1/4 NPT No Drip Stainless Steel

Name: Internal Mix Deflected Flat Fan Atomizing Spray Nozzle - 1/4 NPT No Drip Stainless Steel
Brand: Exair LLC
SKU: NOD-8c9349
Price: 89.99 USD
Availability: OutOfStock

SKU:NOD-8c9349

Achieve precise atomization with the AD2010SS No Drip Internal Mix Atomizing Spray Nozzle - ideal for coating, cooling, painting, and more.

$89.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

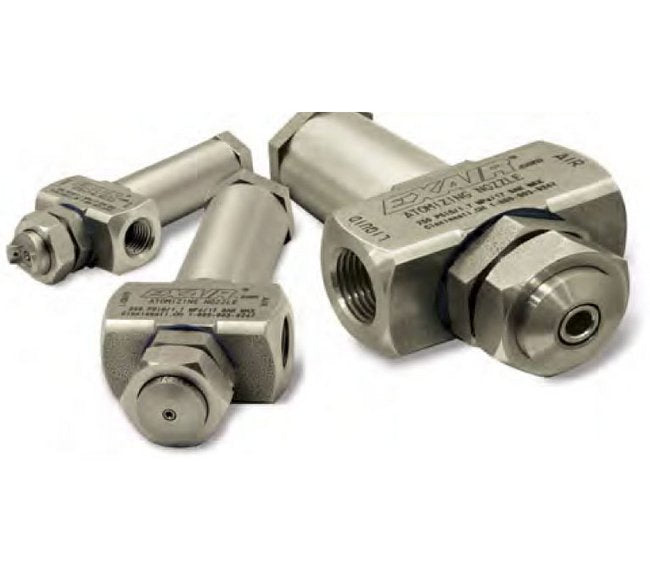

The AD2010SS 1/4 NPT No Drip Internal Mix Deflected Flat Fan Pattern Atomizing Spray Nozzle by EXAIR offers precise atomization with the added advantage of halting liquid flow when air is turned off. Constructed from durable stainless steel, this nozzle is ideal for various applications including coating, cooling, painting, and more. With adjustable features, compact design, and minimal air and liquid consumption, this nozzle delivers fine atomization without post-spray drip, ensuring efficiency and quality results.

Product Specifications

Specifications Additional Information

Internal Mix : Internal mix nozzles mix the liquid and water inside the air cap and produce the finest atomization. Internal mix nozzles can be used on liquids with a viscosity up to 300 cP. Both air and liquid sides are pressure fed. No Drip Internal Mix Atomizing Nozzles are for pressure fed applications not requiring independent air and liquid control.

Specifications Advantages

Specifications Applications

Specifications Connection Type

1/4 National Pipe Thread (NPT)

Specifications Flow Rate

6.9 gal/h | 26 L/h

Specifications Maximum Spray Angle

120

Specifications Minimum Spray Angle

Specifications Mixing Type

No Drip Internal Mix

Specifications Spray Pattern

Deflected Flat Fan Pattern
