Internal Rotorseal with Single Passage for Clutches and Brakes
$249.99
Quantity: 1
Claim Your Seller Account
Internal Rotorseal with Single Passage for Clutches and Brakes
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience optimal sealing performance with our Internal Rotorseal designed for critical axial length applications. Featuring a non-metallic sealing ring, this rotorseal ensures minimal leakage and compensates for wear. With ball bearings for rigidity and reduced torque, this assembly is available with a single passage for pneumatic installations. Ensure concentric rotation to minimize wobble and consider the RH type for high-flow demands. Trust in the versatility, reliability, and precision of Eaton-Airflex's renowned manufacturing standards.
Product Specifications
General Description 0

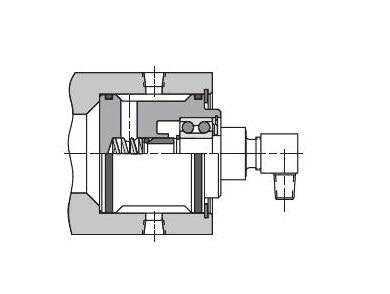

The rotating seal is established by a non-metallic sealing ring, held against the rotorseal shaft by a light spring force. The sealing ring is designed so that media pressure acts on both of its ends to minimize the force on the sealing surface.This design gives positive protection against leakage and compensates for seal wear. Ball bearings are used between the stationary and rotating ports to provide rigidity to the rotorseal assembly and to minimize the running torque.Rotorseals are available with single, dual and triple passages, in a variety of sizes and designs, to provide the versatility needed to handle most requirements. Single passage rotorseals, in pneumatic installation, can be plumbed with a quick release valve at its inlet port to provide a convenient exhaust.In most applications, the rotorseal is mounted to the end of a shaft. The shaft is rifle and cross drilled to provide a passageway for the media transmitted. It is important that the rotorseal's axis of rotation be concentric with the rotating member's axis of rotation to minimize rotorseal wobble.To accommodate eccentricities, a flexible connection must be used between the rotorseal and supply. A rigid connection will tend to preload the rotorseal bearings. The flexible connection should not be installed taut and should include a union and 45º elbow.The flexible connection should be attached to the rotorseal prior to fastening the rotorseal to the rotating body to avoid seal or bearing damage. The union connection to the supply line is made last.For applications which demand a large flow, single passage rotorseal, the RH (rotating housing) type provides a solution. This design incorporates a mounting flange for attachment to the machinery shaft or assembly. External American National Pipe Threads are provided on the rotorseal inlet shaft to facilitate supply line connections.
Note 0
1/2-14 American National Pipe Thread female port.

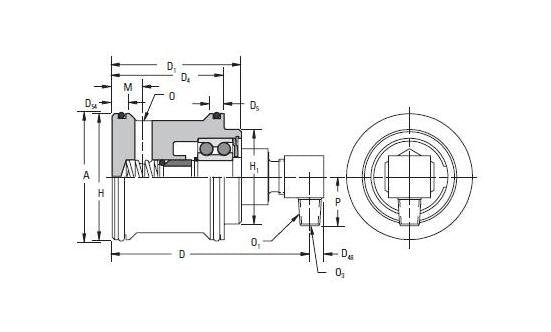

Specifications Dimension A
3.063 in | 77.8 mm
Specifications Dimension D
4.84 in | 123 mm
Specifications Dimension D1
3.00 in | 76 mm
Specifications Dimension D4
2.312 in | 58.7 mm
Specifications Dimension D48
0.50 in | 13 mm
Specifications Dimension D54
0.31 in | 8 mm
Specifications Dimension D55
0.25 in | 6 mm
Specifications Dimension H
3.061 in | 77.7 mm
Specifications Dimension H1
2.44 in | 62 mm
Specifications Dimension M
0.56 in | 14 mm
Specifications Dimension O
0.38 in | 10 mm
Specifications Dimension P
1.31 in | 33 mm
Specifications Hex Size
1.38 in | 35 mm
Specifications Manufacturer
Eaton-Airflex
Specifications Maximum Pressure
150 psi | 10.4 bar
Specifications Maximum Speed
3000 rpm
Specifications Passage Area
0.307 in² | 1.98 cm²
Specifications Size
C2
Specifications Weight
3 lb | 1.4 kg
