Interpack USA 20-B Uniform Semi-Automatic Bottom Case Sealer, 1.5-2 Inch Tape Width
Interpack USA 20-B Uniform Semi-Automatic Bottom Case Sealer, 1.5-2 Inch Tape Width
SKU:PAC-636976
Interpack USA 20-B Semi-Auto Case Sealer: Fast, efficient bottom sealing for RSC with 1.5-2 inch tape width.
Regular price
$4,699.99
Regular price
Sale price
$4,699.99
Unit price
per
Initiate Order
Interpack USA 20-B Uniform Semi-Automatic Bottom Case Sealer, 1.5-2 Inch Tape Width
$4,699.99
Quantity: 1
Claim Your Seller Account
Interpack USA 20-B Uniform Semi-Automatic Bottom Case Sealer, 1.5-2 Inch Tape Width
$4,699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

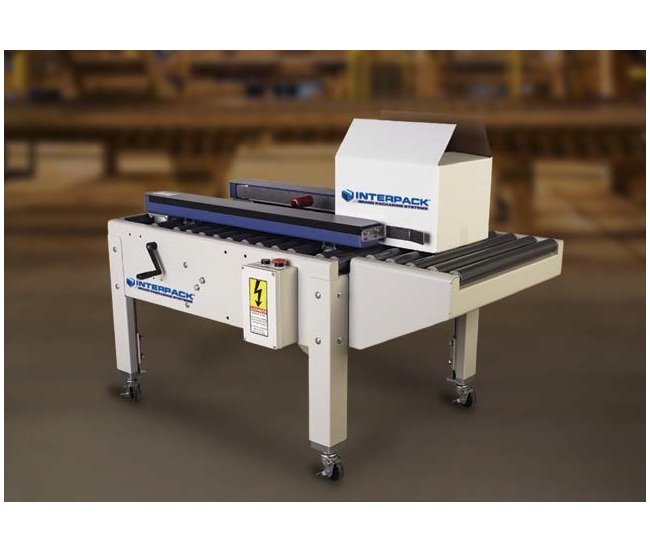

Enhance your packaging efficiency with the Interpack USA 20-B Uniform Semi-Automatic Bottom Case Sealer. This operator-fed machine is designed for processing Regular Slotted Containers (RSC), sealing the bottom center seam of cases with 1.5 to 2 inch tape width. Equipped with an HSD 2000-ET II tape head, this sealer ensures optimal tape application to each case panel. With features like side belt drive, twin gear motors, and heavy-duty construction, this sealer is ideal for 24/7 operations, delivering ergonomic handling and efficient case sealing for operators, plant engineers, and maintenance teams.
Product Specifications
Additional Information Additional Information
These machines are engineered to provide:World class performance featuresHeavy duty construction for 24/7 operationErgonomic, user-friendly operation and case size set up
Case Dimensions And Weight Case Weight
0 to 85 lb
Case Dimensions And Weight Maximum Case Height
Infinite
Case Dimensions And Weight Maximum Case Length
Infinite
Case Dimensions And Weight Maximum Case Width
20 in
Case Dimensions And Weight Minimum Case Height
2 in
Case Dimensions And Weight Minimum Case Length
6 in
Case Dimensions And Weight Minimum Case Width
3-1/2 in
Electric Specifications Current
6 A
Electric Specifications Frequency
60 Hz
Electric Specifications Phase
1
Electric Specifications Power
2 x 1/3 hp
Electric Specifications Voltage
110 V
Features And Benefits Features And Benefits

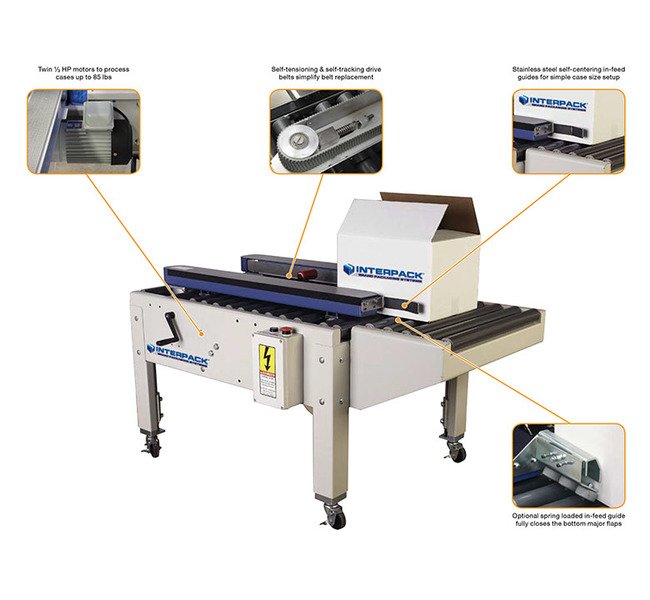

Side belt drive ideal to process empty casesUseful to seal full telescopic casesWill pre-seal the bottom center seam of RSC style cases for delivery to packing stationsTwin 1/3 HP gear motorsSelf tensioning/self-tracking belt driveStainless steel fixed in-feed guides
Machine Dimensions And Weight Machine Height
27-1/2 in
Machine Dimensions And Weight Machine Length
44-3/4 in
Machine Dimensions And Weight Machine Weight Crated
386 lb
Machine Dimensions And Weight Machine Width
41-1/4 in
Options And Accessories Options And Accessories

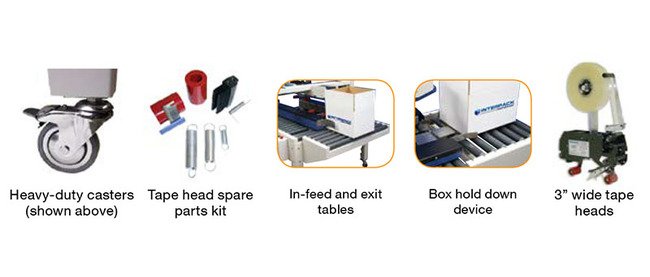

Heavy duty castersTape head spare parts kitIn-feed and exit tablesBox hold down device3" wide tape heads
Specifications Belt Speed
82 ft/min
Specifications Conveyor Height
24 to 30 in
Specifications Power Source
Semi-Automatic
Specifications Tape Width
1.5 to 2 in | 36 to 48 mm
