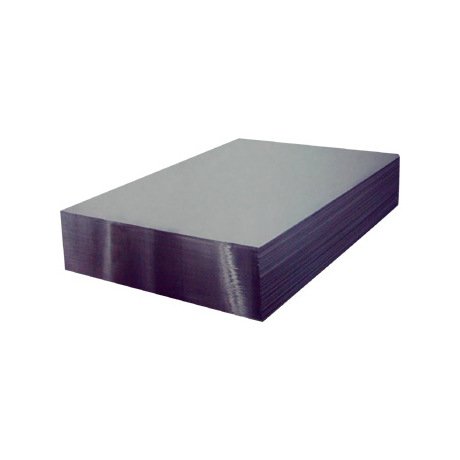

Invar® 42 Nickel-Iron Plate 0.500 inches
Invar® 42 Nickel-Iron Plate 0.500 inches
SKU:NIC-f939e2
High-quality Invar® 42 Nickel-Iron Plate with precise thermal expansion control and ASTM F30 compliance.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
Invar® 42 Nickel-Iron Plate 0.500 inches
$149.99
Quantity: 1
Claim Your Seller Account
Invar® 42 Nickel-Iron Plate 0.500 inches
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Invar® 42 Plate is a premium nickel-iron alloy, featuring a controlled expansion with 42% nickel content. Its low and constant coefficient of thermal expansion up to 570°F makes it ideal for various high-precision applications. This plate is commonly used in semiconductor lead frames, bi-metal thermostat strips, and ceramic-to-metal seals. With a superior ASTM F30 compliant build, this plate offers exceptional mechanical properties including a high tensile strength of 71000 psi and a melting temperature range of 2615 ºF.
Product Specifications
Nickel Alloy Compositions Alloy
Invar® 42
Nickel Alloy Compositions Astm Specification
ASTM F30 | UNS K94100
Nickel Alloy Compositions Basic Composition
42.0 % Nickel | 58.0% Iron
Nickel Alloy Compositions Density
0.293 lbs/in³ | 8.11 g/cm³
Specifications Material
Invar®
Specifications Shapeform
Plates
Specifications Thickness
0.500 inches | 12.7 mm
Mechanical Properties Elongation
43 %
Mechanical Properties Melting Temperature Range
2615 ºF | 1435 ºC
Mechanical Properties Tensile Strength
71000 psi | 490 MPa
Mechanical Properties Yield Strength 02 Offset
36000 psi | 250 MPa
