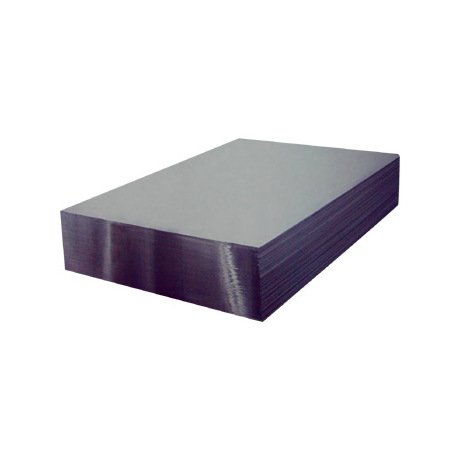

Invar® 42 Nickel-Iron Plate
Invar® 42 Nickel-Iron Plate
SKU:NIC-e7fcff
Discover the Invar® 42 Plate - a nickel-iron alloy with precise thermal expansion control and superior mechanical properties for various high-temperature applications.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
Invar® 42 Nickel-Iron Plate
$99.99
Quantity: 1
Claim Your Seller Account
Invar® 42 Nickel-Iron Plate
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Invar® 42 Plate is a nickel-iron alloy with 42% nickel content, offering a low and consistent coefficient of thermal expansion up to 570°F. Ideal for semiconductor lead frames, bi-metal thermostats, and glass-to-metal seals, this plate comes in a thickness of 0.375 inches. With high tensile strength, yield strength, and elongation properties, it meets ASTM F30 standards.
Product Specifications
Nickel Alloy Compositions Alloy
Invar® 42
Nickel Alloy Compositions Astm Specification
ASTM F30 | UNS K94100
Nickel Alloy Compositions Basic Composition
42.0 % Nickel | 58.0% Iron
Nickel Alloy Compositions Density
0.293 lbs/in³ | 8.11 g/cm³
Specifications Material
Invar®
Specifications Shapeform
Plates
Specifications Thickness
0.375 inches | 9.5250 mm
Mechanical Properties Elongation
43 %
Mechanical Properties Melting Temperature Range
2615 ºF | 1435 ºC
Mechanical Properties Tensile Strength
71000 psi | 490 MPa
Mechanical Properties Yield Strength 02 Offset
36000 psi | 250 MPa
