Invisiware Receiver Threaded Terminals

Invisiware Receiver Threaded Terminals

SKU:ARC-6a1ca5

Premium stainless steel Invisiware Receiver for 1/8" and 3/16" wire ropes. Durable, easy to install, and complies with industry standards.

Regular price $29.99
Regular price Sale price $29.99
Sale

Initiate Order

Invisiware Receiver Threaded Terminals

Invisiware Receiver Threaded Terminals

$29.99

Quantity: 1

Claim Your Seller Account

Invisiware Receiver Threaded Terminals

Invisiware Receiver Threaded Terminals

$29.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

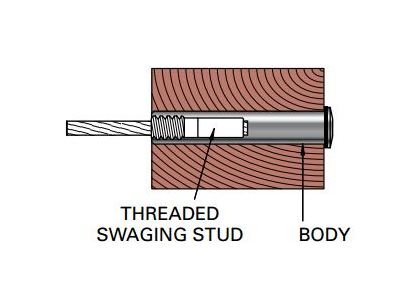

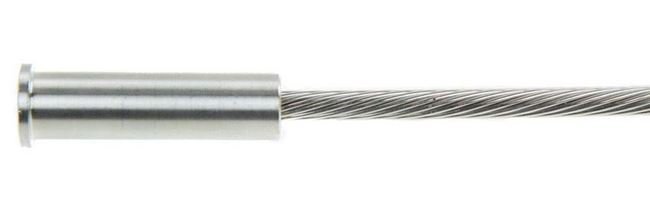

The Invisiware Receiver is a top-quality architectural cable railing component designed for durability and aesthetics. Crafted from high-grade 316 stainless steel, this receiver is compatible with wire rope diameters of 1/8" and 3/16". With a body diameter of 0.437" and a head diameter of 0.537", it offers a secure and sleek termination point for cable railings. The 1.812" length and 5/16-24 thread tap ensure easy installation and a precise fit. Ideal for both indoor and outdoor applications, this receiver meets stringent industry standards for quality and performance.

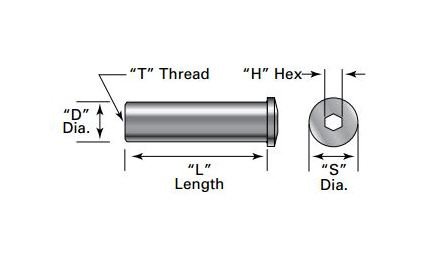

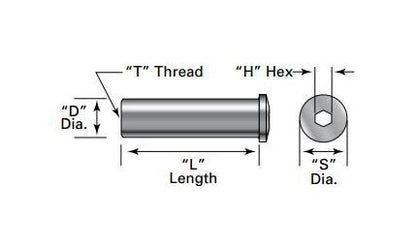

Product Specifications

Specifications Body Diameter
0.437"
Specifications Frame Option
1-1/2" Std. Pipe
Specifications Head Diameter
0.537"
Specifications Length
1.812"
Specifications Thread Tap
5/16-24
Specifications Wire Rope Dia
1/8", 3/16"
CAGE
0T9L4
NAICS
332510
PSC
4030
