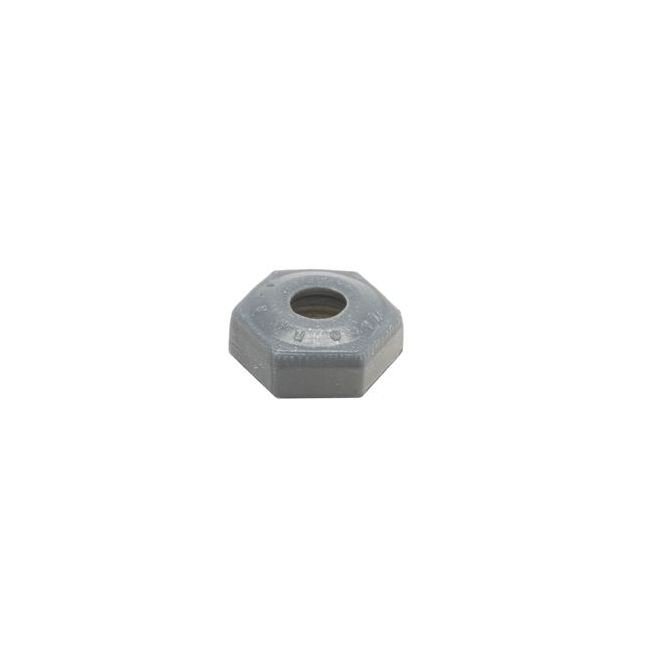

IP68-rated Silicone M10 x 0.75 Rotary Switch Boot

Name: IP68-rated Silicone M10 x 0.75 Rotary Switch Boot
Brand: ZAGO Manufacturing
SKU: SWI-011790
Price: 24.99 USD
Availability: OutOfStock

SKU:SWI-011790

Durable IP68 Silicone M10 x 0.75 Rotary Switch Boot for superior switch protection.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The IP68-rated Silicone M10 x 0.75 Rotary Switch Boot is expertly designed to fit most standard switches, providing exceptional protection against water, oil, sand, dust, and harsh environmental conditions. Crafted from durable silicone with a Durometer of 60, this switch boot is resistant to fungus, acids, ozone, sunlight, and more. With a temperature range of -93 to +400 °F and corrosion-resistant mounting nut, it is ideal for aerospace, industrial, marine, medical, and military applications.

Product Specifications

Specifications Applications

Specifications Base Width Hex

0.500 in

Specifications Boot Height

0.245 in

Specifications Bushing Thread Size Metric

M10 x 0.75

Specifications Color

Black | Gray

Specifications Durometer

Specifications Enclosure Protection

IP68 (Under Normal Conditions)

Specifications External Pressure Range

15 psi

Specifications Internal Pressure Range

15 psi

Specifications Material

Silicone

Specifications Mounting Nut

Corrosion Resistant - Nickel Plated Brass

Specifications Note

Designed to protect from water, oil, sand, dust, dirt, humidity, precipitation and other contaminants.

Specifications Resistant To

Specifications Temperature Range

-93 to +400 ÂºF

Specifications Thread Type

Metric

IP68-rated Silicone M10 x 0.75 Rotary Switch Boot
