IP68 Toggle Switch Boot with M12 X 0.75 Thread Size
IP68 Toggle Switch Boot with M12 X 0.75 Thread Size
SKU:SWI-3cf285
Advanced IP68 Toggle Switch Boot for extreme environment protection. Metric M12 X 0.75 thread, 0.219in lever diameter, 0.945in boot height.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
IP68 Toggle Switch Boot with M12 X 0.75 Thread Size
$24.99
Quantity: 1
Claim Your Seller Account
IP68 Toggle Switch Boot with M12 X 0.75 Thread Size
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

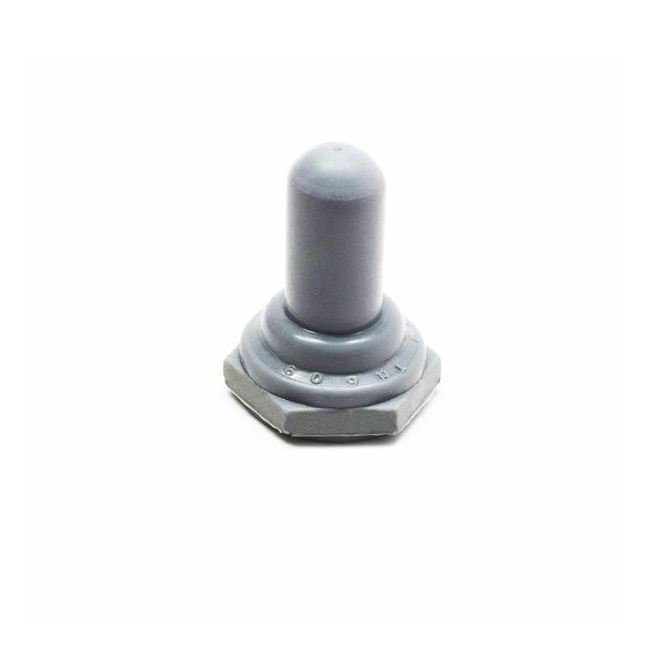

Protect your switches in the harshest environments with ZAGO's IP68 rated Toggle Switch Boot. Made of Silicone Rubber, this boot features a metric M12 X 0.75 thread size, 0.219in maximum lever diameter, and 0.945in boot height. Resistant to fungus, acids, ozone, and more, it meets aerospace, industrial, marine, and military standards.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Applications
Aerospace | For Indoor/Outdoor Use to protect against exposure to harsh environments | Industrial Equipment | Marine | Medical Equipment | Military
Specifications Base Width Hex
0.625 in
Specifications Boot Height
0.945 in
Specifications Bushing Thread Size Metric
M12 X 0.75
Specifications Color
Black | Gray
Specifications Durometer
50
Specifications Enclosure Protection
IP68 (Under Normal Conditions)
Specifications External Pressure Range
15 psi
Specifications Internal Pressure Range
15 psi
Specifications Material
Silicone Rubber Conforms to A-A-59588
Specifications Maximum Lever Diameter
0.219 in
Specifications Mounting Nut
Corrosion Resistant - Nickel Plated Brass
Specifications Resistant To
Fungus | Most Acids and Lubricating Oils | Ozone | Salt Spray | Sunlight | Weather
Specifications Temperature Range
-93 to +400 ºF
Specifications Thread Type
Metric
