IP68 Touchless Magnetic Rotary Position Sensor - Vert-X 31E Series
IP68 Touchless Magnetic Rotary Position Sensor - Vert-X 31E Series
SKU:VER-574fed
Highly accurate touchless sensor with IP68 protection for precise measurements in adverse conditions.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
IP68 Touchless Magnetic Rotary Position Sensor - Vert-X 31E Series
$149.99
Quantity: 1
Claim Your Seller Account
IP68 Touchless Magnetic Rotary Position Sensor - Vert-X 31E Series
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Vert-X 31E Series Touchless Magnetic Rotary Position Sensor offers unparalleled accuracy and durability for applications in adverse conditions. With IP68 protection class, 360º continuous mechanical range, and a resolution of 12 bit, this sensor ensures precise measurements even in harsh environments. Its non-contacting measuring method, high repeatability, and long life make it ideal for access control systems, concrete pumps, and forklifts. Programmable, compact, and with a fast mode sample rate of 5 kHz, this sensor is a cost-effective solution tailored to meet the demands of industrial settings.
Product Specifications
Specifications Applications
Access control system | Concrete pump | Fork lift
Specifications Cross Section Of Single Wires Awg20
0.56 mm²
Specifications Electrical Connection
Cable 3pole
Specifications En 61000 4 2 Esd Contact Discharge Air Discharge
4/8 kV
Specifications En 61000 4 3 Immission Hf Radiated 80 To 1000 Mhz
30 V/m
Specifications En 61000 4 4 Burst On All Lines
1 kV
Specifications En 61000 4 5 Surge Lines To Ground
1 kV
Specifications En 61000 4 6 Immission Hf Conducted 015 To 80 Mhz
10 Vemk
Specifications En 61000 4 8 Immission Magnetic Field 50hz
300 A/m
Specifications Fast Mode Sample Rate
5 kHz
Specifications Fast Mode System Propagation Delay
800 µs
Specifications Features
Applications under adverse ambient conditions possible (humidity, dampness, dust, vibrations etc.) | Compact dimensions | Full resolution and accuracy at programmed electrical angle | High accuracy of measurement | High protection class IP68 | Lower price than MH-C2 | Non-contacting measuring method | Resolution of 12bit | Very long life
Specifications Iec 60393 1 Dielectric Strength Vac 50hz 1min 1ba
1 kV
Specifications Iec 60393 1 Insulation Resistance 500vdc 1bar 2s
20 GO
Specifications Iec 68 2 27 Shock
200 g
Specifications Iec 68 2 6 Vibration Amax 075mm F 5 To 2000 Hz
50 g
Specifications Independent Linearity Without Misalignment
0.3 %

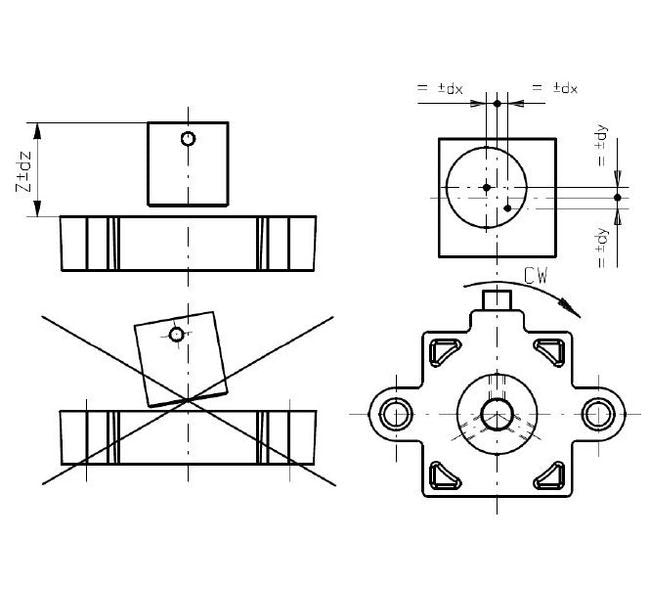

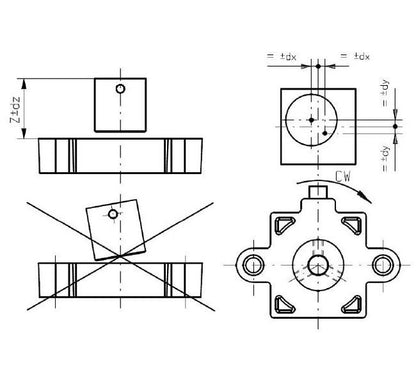

Specifications Independent Linearity With Allowed Misalignment A
0.5 %
Specifications Length Of Cable
1.0 m
Specifications Magnetic Actuator Type
Type 5
Specifications Maximum Capacitive Load At Output
100 nF
Specifications Maximum En 55022 Class B Emission Radiated 230 To
37 dB(µV/m)
Specifications Maximum En 55022 Class B Emission Radiated 30 To
30 dB(µV/m)
Specifications Maximum Hysteresis
0.1 º
Specifications Maximum Repeatability
0.1 º
Specifications Maximum Temperature Coefficient Of The Output Sig
100 ppm/ºk
Specifications Measuring Range
0 to 360 º
Specifications Mechanical Range Continuous
360 º
Specifications Minimum Life Movements
No Limitation
Specifications Minimum Ohmic Load At Output
0 to 0.5 kO

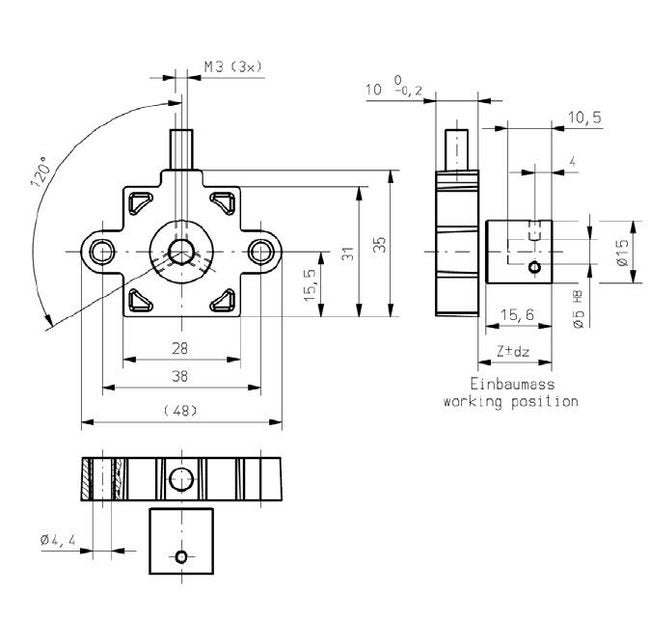

Specifications Mounting Hole Diameter
4.4 mm
Specifications Mttfdmtbf
240/240 y
Specifications Operating And Storage Temperature
-40 to 85 ºC
Specifications Power Supply Voltage Dc
16 to 35 V
Specifications Protection Class
IP68
Specifications Redundancy Feasible
No
Specifications Resolution
12 bit
Specifications Reverse Polarity Protection Of Power Supply
Yes
Specifications Slow Mode Sample Rate
1.66 kHz
Specifications Slow Mode System Propagation Delay
4600 µs
