The Vert-X 31E Series Touchless Magnetic Rotary Position Sensor offers unparalleled precision and reliability in measuring angles from 0 to 360 degrees. With high protection class IP68, compact dimensions, and non-contact measuring method, this sensor ensures accurate data even under adverse conditions like humidity, dust, and vibrations. Featuring a resolution of 14 bit, fast/slow mode sample rates, and redundancy feasibility, this sensor is ideal for applications such as access control systems, concrete pumps, and forklifts. Its robust construction, wide temperature range, and compliance with stringent industry standards make it a dependable choice for diverse institutional needs.
Product Specifications
Specifications Applications
Access control system | Concrete pump | Fork lift
Specifications Cross Section Of Single Wires Awg24
0.25 mm²
Specifications Cross Section Of Single Wires Redundant Awg28
0.09 mm²
Specifications Electrical Connection
Cable 6pole
Specifications Electrical Connection Redundant
Cable 10pole
Specifications En 61000 4 2 Esd Contact Discharge Air Discharge
4/8 kV
Specifications En 61000 4 3 Immission Hf Radiated 80 To 1000 Mhz
30 V/m
Specifications En 61000 4 4 Burst On All Lines
1 kV
Specifications En 61000 4 5 Surge Lines To Ground
1 kV
Specifications En 61000 4 6 Immission Hf Conducted 015 To 80 Mhz
10 Vemk
Specifications En 61000 4 8 Immission Magnetic Field 50hz
300 A/m
Specifications Fast Mode Sample Rate
2.2 kHz
Specifications Fast Mode System Propagation Delay
400 µs
Specifications Features
Applications under adverse ambient conditions possible (humidity, dampness, dust, vibrations etc.) | Compact dimensions | Full resolution and accuracy at programmed electrical angle | High accuracy of measurement | High protection class IP68 | Non-contacting measuring method | Very long life
Specifications Iec 60393 1 Dielectric Strength Vac 50hz 1min 1ba
1 kV
Specifications Iec 60393 1 Insulation Resistance 500vdc 1bar 2s
20 GO
Specifications Iec 68 2 27 Shock
200 g
Specifications Iec 68 2 6 Vibration Amax 075mm F 5 To 2000 Hz
50 g
Specifications Independent Linearity Without Misalignment
0.3 %

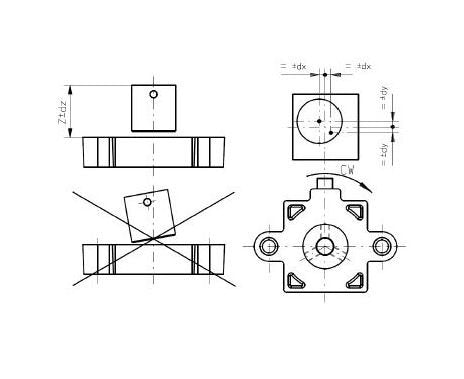

Specifications Independent Linearity With Allowed Misalignment A
0.5 %
Specifications Length Of Cable
1.0 m
Specifications Magnetic Actuator Type
Type 5
Specifications Maximum En 55022 Class B Emission Radiated 230 To
37 dB(µV/m)
Specifications Maximum En 55022 Class B Emission Radiated 30 To
30 dB(µV/m)
Specifications Maximum Hysteresis
0.1 º
Specifications Maximum Repeatability
0.1 º
Specifications Maximum Temperature Coefficient Of The Output Sig
25 ppm/ºk
Specifications Measuring Range
0 to 360 º
Specifications Mechanical Range Continuous
360 º
Specifications Minimum Life Movements
No Limitation

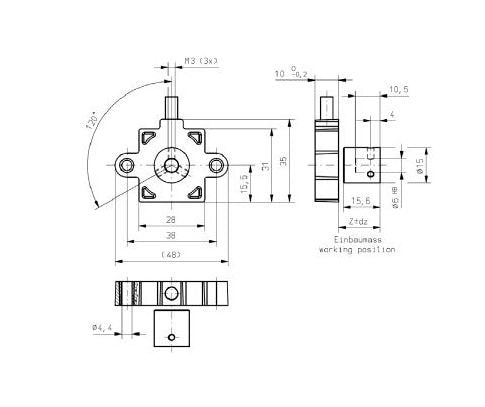

Specifications Mounting Hole Diameter
4.4 mm
Specifications Mttfdmtbf
240/240 y
Specifications Operating And Storage Temperature
-40 to 85 ºC
Specifications Power Supply Voltage Dc
8 to 35 V
Specifications Protection Class
IP68
Specifications Redundancy Feasible
Yes
Specifications Resolution
14 bit
Specifications Reverse Polarity Protection Of Power Supply
Yes
Specifications Slow Mode Sample Rate
0.55 kHz
Specifications Slow Mode System Propagation Delay
600 µs
