IPX Tech HYT 939 Digital Humidity Sensor - 5.2mm Height
IPX Tech HYT 939 Digital Humidity Sensor - 5.2mm Height
SKU:DIG-79982d
IPX Tech HYT 939 Digital Humidity Sensor - Accurate, Reliable, RoHS Compliant
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
IPX Tech HYT 939 Digital Humidity Sensor - 5.2mm Height
$49.99
Quantity: 1
Claim Your Seller Account
IPX Tech HYT 939 Digital Humidity Sensor - 5.2mm Height
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

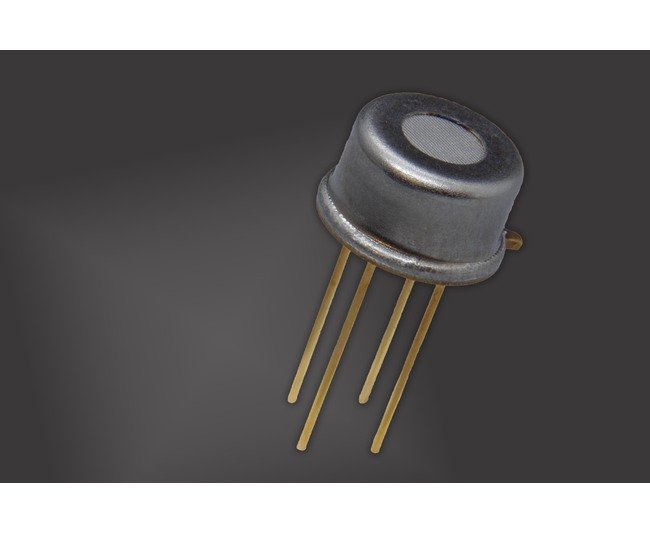

The IPX Tech HYT 939 Digital Humidity Sensor is a top-of-the-line solution for precise humidity monitoring in high-pressure environments up to 16 bar. Calibrated and temperature-compensated, this sensor offers unparalleled accuracy with a humidity accuracy of ±1.8% and temperature accuracy of ±0.2°C. Operating seamlessly in a wide range of conditions (-40 to +125 ºC) and with an RH range of 0 to 100%, this sensor ensures reliable performance. With RoHS compliance, low power consumption, and a compact TO39 housing, it's an ideal choice for critical industrial applications.
Product Specifications
Dimensions Diameter
9 mm
Dimensions Height
5.2 mm
Specifications Connection
TO39 - Footprint
Specifications Current Consumption At 1 Hertz Hz Measuring Rate
< 22 µA
Specifications Current Consumption In Sleep Mode
< 1 µA
Specifications Digital Interface
Address 0 x 28 or Alternative Address | Inter-Integrated Circuit (I²C)
Specifications Humidity Accuracy
1.8 %
Specifications Manufacturer Part Number
HYT 939
Specifications Old Product Code
150.00067
Specifications Operating Relative Humidity Rh Range
0 to 100 %
Specifications Operating Temperature Range
-40 to +125 ºC
Specifications Operating Voltage
2.7 to 5.5 V
Specifications Restriction Of Hazardous Substances Directive Roh
Yes
Specifications Temperature Accuracy
0.2 ºC
