iRis 7 Pro Videoscope - 8mm Diameter Industrial Borescope
iRis 7 Pro Videoscope - 8mm Diameter Industrial Borescope
SKU:IND-bdd707
Advanced 8mm iRis 7 Pro Videoscope for industrial inspections with True Industrial Grade CCD sensor, 4-way tip articulation, and 7" touchscreen display.
Regular price
$2,899.99
Regular price
Sale price
$2,899.99
Unit price
per
Initiate Order
iRis 7 Pro Videoscope - 8mm Diameter Industrial Borescope
$2,899.99
Quantity: 1
Claim Your Seller Account
iRis 7 Pro Videoscope - 8mm Diameter Industrial Borescope
$2,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

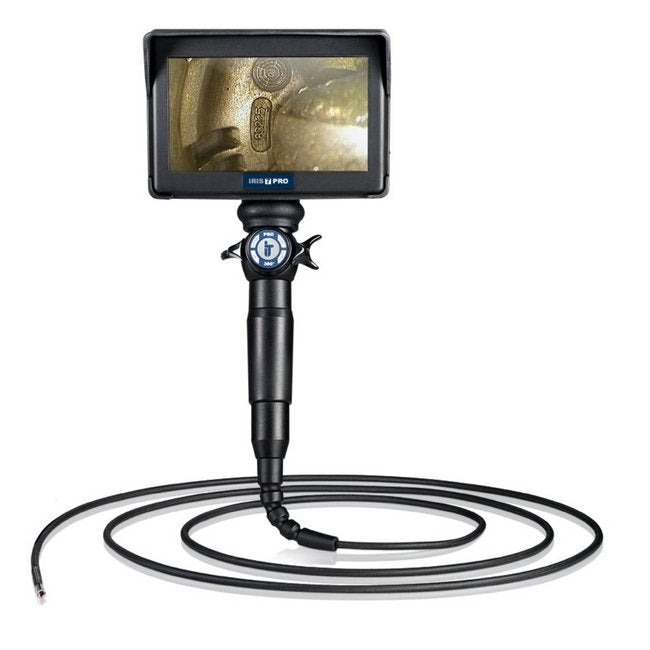

The iRis 7 Pro Videoscope is a cutting-edge inspection tool tailored for the industrial sector, ideal for fast and meticulous examinations of a wide range of equipment. Featuring a True Industrial Grade CCD sensor, heat-resistant probes with IP67 tungsten braiding, and a 7-inch high-resolution touchscreen display, this videoscope offers unparalleled performance. Its 4-way tip articulation, precise control levers, and advanced image capture capabilities ensure swift and detailed inspections. Customizable with various lenses and accessories, this tool is a go-to solution for automotive, aviation, and mechanical engineering needs, meeting the highest standards of quality and performance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information
The IRIS 7 PRO Videoscope is a highly-advanced video borescope that offers numerous benefits. It is specifically designed for speedy inspections of various equipment, such as turbines (compressor and hot section), pipes and tubes (welds, food processing, pharmaceutical), and metal castings (blockages and cross holes). This videoscope is equipped with a True Industrial Grade CCD sensor and can also be customized with additional lenses, tip adapters, and accessories. The heat-resistant probes come with a waterproof IP67 tungsten braiding over a polyurethane jacket, with an additional metal coil underneath. The 7-inch touchscreen monitor is permanently attached and has quick image/video capture, text generation, and comparative measurement features. The 4-way articulation is controlled via wires, using two levers on the handpiece, allowing for faster and more precise manipulation. The IRIS 7 PRO Videoscope is widely used in the automotive industry, aviation factories, and mechanical engineering. It is an excellent solution for complex inspection situations that require quality and performance.
Applications
Automobile IndustrySafety InspectionsIndustrial InspectionsAviation IndustryConstruction InspectionsFactory InspectionsMechanical EngineeringPlumbing and Heating ApplicationVentilation, Air Conditioning, and Refrigeration (HVACR)
Features
One-Touch Image Capture4-Way Tip Articulation with 360º RotationTwo Mechanical Levers for Precise Articulation Control7-inch High-Resolution TFT Touch Screen DisplayComparative Optical Measurement Heat-resistant up 284º F (140ºC) for 5 Minutes
Technical Specs Articulation
4-Way
Technical Specs Brands
Fiberscope.net by MEDIT
Technical Specs Diameter
8 mm | 0.31 in
Technical Specs Display Size
7 in
Technical Specs Display Type
Thin Film Transistor (TFT)
Technical Specs Imagevideo Capture
Yes
Technical Specs Interchangeable Probes
No
Technical Specs Length
1.5 m | 2 m | 3 m | 5 m | 6 m | 7.5 m | 4.9 to 24.6 ft
Technical Specs Measurement
Yes
Technical Specs Note
Available for Rent
Technical Specs Probe Braiding
Tungsten
Technical Specs Resolution
1024x600
Technical Specs Waterproof Probe
Ingress Protection (IP67)
