IRORNCLAD 18,396 Gal Capacity Steel Double Wall Tank
IRORNCLAD 18,396 Gal Capacity Steel Double Wall Tank
SKU:TAN-db576a
Heavy-duty 18,396 Gal Steel Double Wall Tank for secure industrial liquid storage. Versatile accessories included.
Regular price
$15,999.99
Regular price
Sale price
$15,999.99
Unit price
per
Initiate Order
IRORNCLAD 18,396 Gal Capacity Steel Double Wall Tank
$15,999.99
Quantity: 1
Claim Your Seller Account
IRORNCLAD 18,396 Gal Capacity Steel Double Wall Tank
$15,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

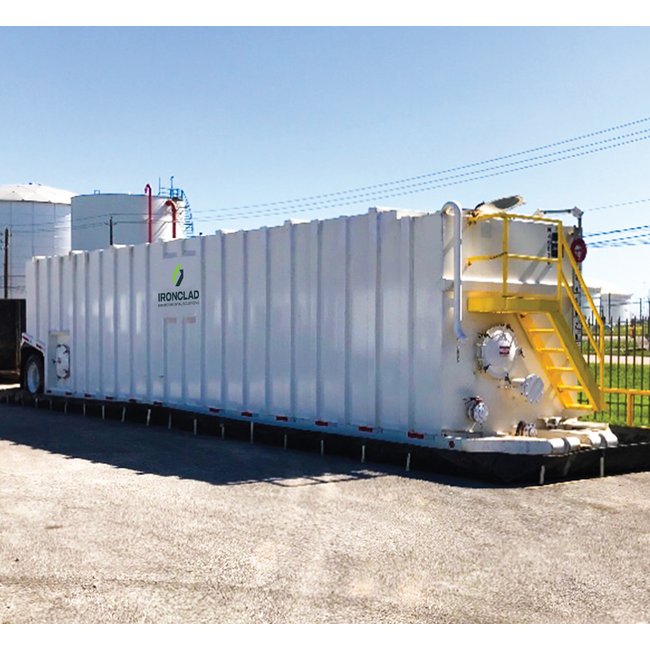

The IRONCLAD 18,396 Gal Capacity Steel Double Wall Tank is the ultimate solution for temporary liquid storage in industrial settings. Constructed with heavy-gauge steel, this tank ensures secure containment. Featuring a range of accessories for versatility, including multiple drains, manways, and fork pockets, it caters to diverse project needs. With a robust build and large capacity, this tank is ideal for industrial applications requiring reliable and durable liquid storage.
Product Specifications
Construction Floor
1/4 in. A36 Plate
Construction Floor Rails
12 in. x 20.7# Channel
Construction Long Sill
6 x 2 x 1/4 in. Tubing
Construction Side Stakes
3/16 in. A36 Plate Formed
Construction Walls
1/4 in. A36 Plate (Inside) | 3/16 in. A36 Plate (Outside)
Construction X Members
1/4 in. A36 Plate
Dimensions And Weight Axle Capacity
22,5000 lb
Dimensions And Weight Axle Track Size
77.5 in
Dimensions And Weight Capacity
18,430 gal | 438 BBL
Dimensions And Weight Height
8 ft 11-3/4 in.
Dimensions And Weight Inside Height
8 ft 2 in.
Dimensions And Weight Inside Length
19 ft 3 in.
Dimensions And Weight Inside Width
5/16 in.
Dimensions And Weight Length
45 ft 8-5/16 in.
Dimensions And Weight Outside Height
5 ft 7-3/4 in.
Dimensions And Weight Outside Length
23 ft 2 in.
Dimensions And Weight Outside Width
8 ft 6 in.
Dimensions And Weight Tare Weight
36,000 lb
Dimensions And Weight Width
8 ft 6 in.
Features Blind Flange
Two 4 in. (Roof)
Features Fork Pockets
12 x 6
Features Interstitial Drain
Three 3/4 in. Ball Valve (Front) | Three 3/4 in. Ball Valve (Rear) | Two 1 in. Vented Plugs (Front Top Corners)
Features Manways
One 22 in. and 36 in. Combo Manway (Curb) | One 36 in. Rear Manways (Roof) | One 36 in. with Ladder Front Manway (Roof)
Features Platform
Outside Rail Construction (36-1/2 in. Inside Rails)
Features Valves
One 4 in. Drain (Front) | One 4 in. Drain with Handle (Rear) | One 8 in. P/V Valve (Roof)
Technical Specs Brands
IRONCLAD Environmental Solutions
