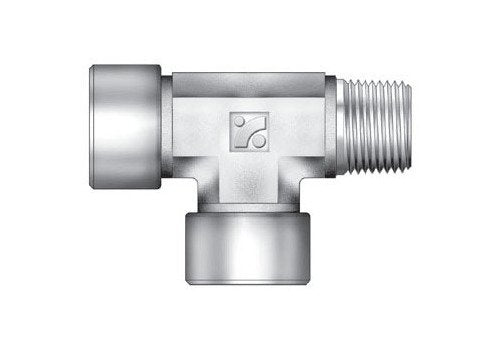

IRT Series 1/4 in Pipe Size Run Tee Fitting - NPT Threads
IRT Series 1/4 in Pipe Size Run Tee Fitting - NPT Threads
SKU:IRT-895b58
High-quality IRT Series 1/4 in Pipe Size Run Tee Fitting with NPT threads for secure industrial connections.
Regular price
$14.99
Regular price
Sale price
$14.99
Unit price
per
Initiate Order
IRT Series 1/4 in Pipe Size Run Tee Fitting - NPT Threads
$14.99
Quantity: 1
Claim Your Seller Account
IRT Series 1/4 in Pipe Size Run Tee Fitting - NPT Threads
$14.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The IRT Series 1/4 Inch Pipe Size Run Tee Fitting features male and female NPT threads, making it ideal for connecting pipelines in industrial settings. Constructed from high-quality materials such as 316 stainless steel, brass, or carbon steel, this fitting ensures durability and corrosion resistance. With precise dimensions and a reliable thread type, it meets rigorous industry standards for leak-free connections, making it a preferred choice for both consumer and institutional buyers.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Note Note

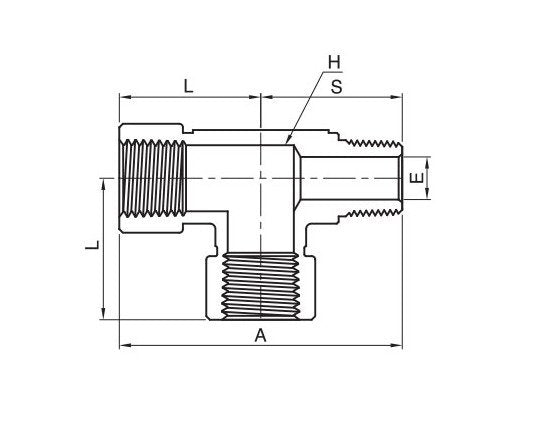

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes. and end connections not listed are available upon request.
Technical Specs Dimension A
56.2 mm
Technical Specs Dimension E
7.1 mm
Technical Specs Dimension H
17.5 mm
Technical Specs Dimension L
29.0 mm
Technical Specs Dimension S
26.5 mm
Technical Specs Material
316 Stainless Steel | Brass | Carbon Steel
Technical Specs Pipe Size
1/4 in
Technical Specs Thread Type
National Pipe Thread (NPT)
