IS Tech P0K1.520.6W.B.010 Platinum RTD Temperature Sensor
IS Tech P0K1.520.6W.B.010 Platinum RTD Temperature Sensor
SKU:TEM-7d9607
Premium IS Tech Temperature Sensor - Reliable, Accurate, RoHS-Compliant.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
IS Tech P0K1.520.6W.B.010 Platinum RTD Temperature Sensor
$49.99
Quantity: 1
Claim Your Seller Account
IS Tech P0K1.520.6W.B.010 Platinum RTD Temperature Sensor
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

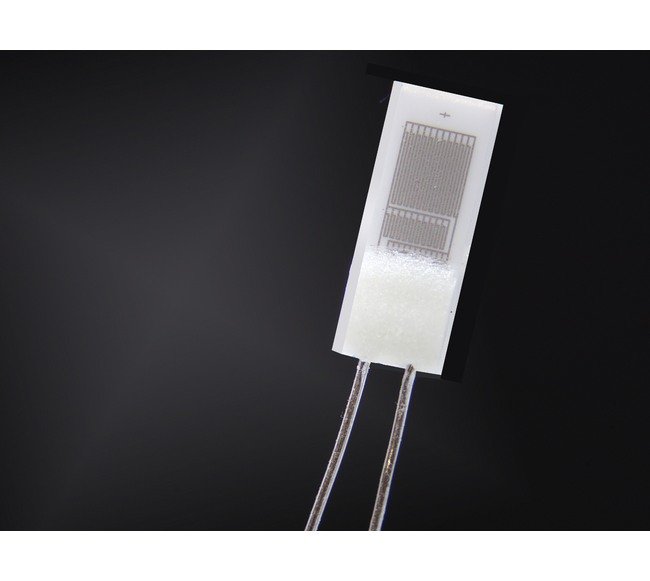

The IS Tech P0K1.520.6W.B.010 Temperature Sensor is a premium-grade thin-film platinum 100 Ohm RTD component designed for high-precision temperature measurement applications. Manufactured by Innovative Sensor Technology, USA Division, this sensor offers exceptional reliability and accuracy. With RoHS compliance, resistivity of 100 Ω at 0ºC, a wide temperature range of -200 to +600 ºC, and IEC 60751 F0.3 (Class B) tolerance, this sensor ensures precise and consistent performance in diverse settings. The platinum/nickel wire construction, along with dimensions of 5.0 mm x 2.0 mm x 1.3 mm, makes it ideal for industrial and institutional use.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Dimensions Height
1.3 mm
Dimensions Length
5.0 mm
Dimensions Width
2.0 mm
Specifications Manufacturer Part Number
P0K1.520.6W.B.010
Specifications Resistivity At 0 Degree Celsius C Temperature
100 Ω
Specifications Restriction Of Hazardous Substances Directive Roh
Yes
Specifications Temperature Coefficient Of Resistance Tcr
3850 ppm/K
Specifications Temperature Range
-200 to +600 ºC
Specifications Tolerance
International Electrotechnical Commission (IEC) 60751 F0.3 (Class B)
Specifications Wire Diameter
0.2 mm
Specifications Wire Length
10 mm
Specifications Wire Type
Platinum (Pt)/Nickel (Ni)
