IS Tech PU1K0.232.6W.B.010 Temperature Sensor
IS Tech PU1K0.232.6W.B.010 Temperature Sensor
SKU:TEM-eb8eab
Precision platinum RTD temperature sensor for -200 to +600 ºC range, RoHS compliant.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
IS Tech PU1K0.232.6W.B.010 Temperature Sensor
$49.99
Quantity: 1
Claim Your Seller Account
IS Tech PU1K0.232.6W.B.010 Temperature Sensor
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

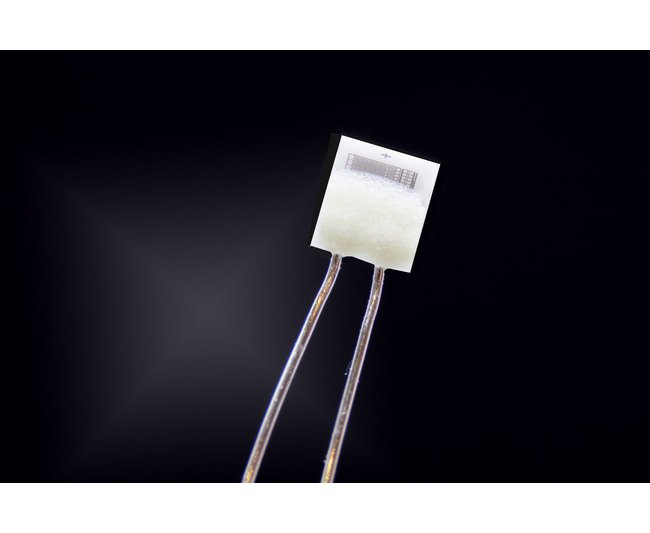

The IS Tech PU1K0.232.6W.B.010 Temperature Sensor is a high-precision thin-film platinum RTD component designed for accurate temperature measurement in a wide range from -200 to +600 ºC. With a resistivity of 1000 Ω and a TCR of 3750 ppm/K, this sensor ensures reliable and consistent performance. Manufactured by Innovative Sensor Technology, USA Division, it meets RoHS compliance and adheres to IEC 60751 F0.3 (Class B) tolerance standards. The sensor features platinum/nickel wire construction, measuring 0.2 mm in diameter and 10 mm in length, with compact dimensions of 2.3mm x 2.0mm x 1.3mm.
Product Specifications
Dimensions Height
1.3 mm
Dimensions Length
2.3 mm
Dimensions Width
2.0 mm
Specifications Manufacturer Part Number
PU1K0.232.6W.B.010
Specifications Resistivity At 0 Degree Celsius C Temperature
1000 Ω
Specifications Restriction Of Hazardous Substances Directive Roh
Yes
Specifications Temperature Coefficient Of Resistance Tcr
3750 ppm/K
Specifications Temperature Range
-200 to +600 ºC
Specifications Tolerance
International Electrotechnical Commission (IEC) 60751 F0.3 (Class B)
Specifications Wire Diameter
0.2 mm
Specifications Wire Length
10 mm
Specifications Wire Type
Platinum (Pt)/Nickel (Ni)
