IS Tech USA P0K1.232.6W.A.010 Thin-Film Platinum RTD Temperature Sensor
IS Tech USA P0K1.232.6W.A.010 Thin-Film Platinum RTD Temperature Sensor
SKU:TEM-0dae14
High-quality IS Tech USA P0K1.232.6W.A.010 RTD Temperature Sensor for precise -200 to +600 ºC measurement
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
IS Tech USA P0K1.232.6W.A.010 Thin-Film Platinum RTD Temperature Sensor
$29.99
Quantity: 1
Claim Your Seller Account
IS Tech USA P0K1.232.6W.A.010 Thin-Film Platinum RTD Temperature Sensor
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

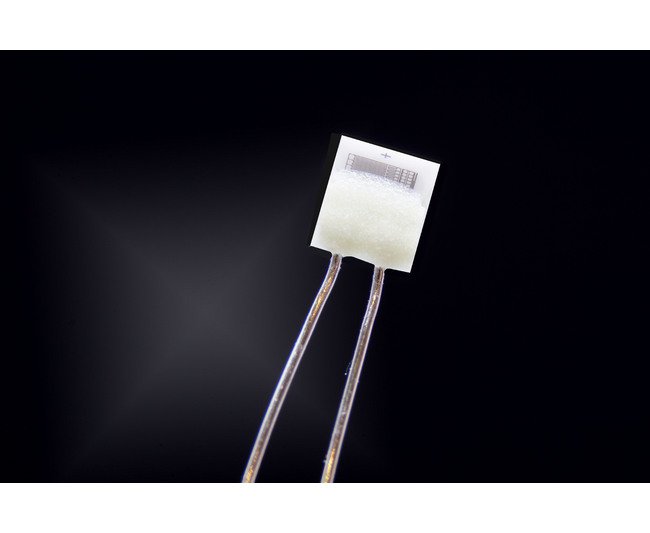

The IS Tech USA P0K1.232.6W.A.010 Temperature Sensor is a high-quality, RoHS compliant thin-film platinum 100 Ohm (232) RTD component suitable for a wide temperature range from -200 to +600 ºC. With precision engineering meeting IEC 60751 F0.14 (Class A) tolerance standards, this sensor ensures accurate temperature measurement. Featuring a platinum/nickel wire type, 0.2 mm diameter, and compact dimensions of 2.3mm x 2.0mm x 1.3mm, this sensor is ideal for industrial and scientific applications requiring reliable temperature sensing.
Product Specifications
Dimensions Height
1.3 mm
Dimensions Length
2.3 mm
Dimensions Width
2.0 mm
Specifications Manufacturer Part Number
P0K1.232.6W.A.010
Specifications Resistivity At 0 Degree Celsius C Temperature
100 Ω
Specifications Restriction Of Hazardous Substances Directive Roh
Yes
Specifications Temperature Range
-200 to +600 ºC
Specifications Tolerance
International Electrotechnical Commission (IEC) 60751 F0.14 (Class A)
Specifications Wire Diameter
0.2 mm
Specifications Wire Length
10 mm
Specifications Wire Type
Platinum (Pt)/Nickel (Ni)
